Sony VPL-CS7 - Page 42

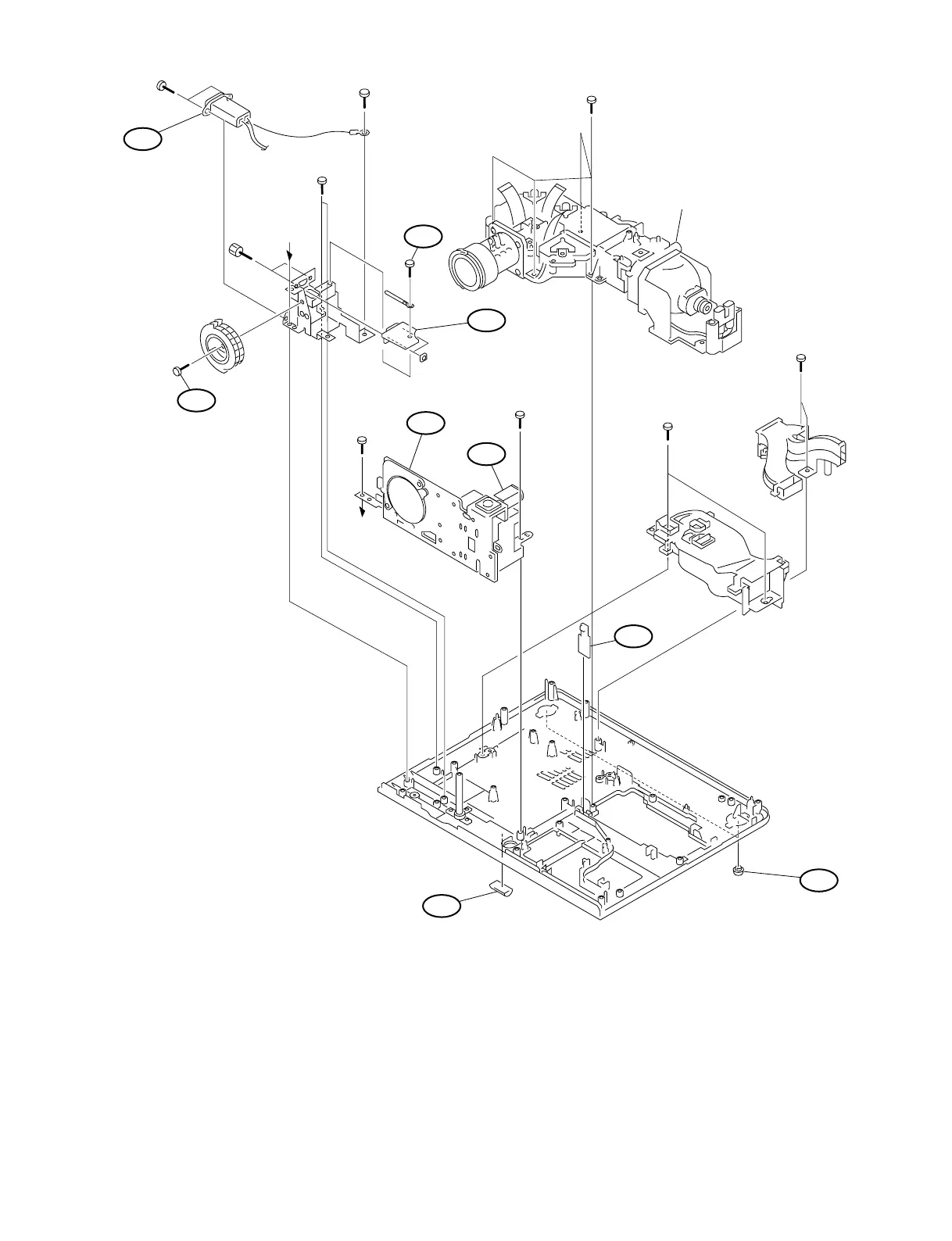

4-4
VPL-CS7/ES2
Base
PSW4 x 8
K3 x 6
205
208
208
203
201
204
202
BTP3 x 10
BTP3 x 10
A
A
BTP3 x 10
BTP3 x 10
+BTP 3x10
See Optics
BTP3 x 10
207
206
No. Part No. SP Description
201 A-1061-842-A s MOUNTED CIRCUIT BOARD, Q
(FOR VPL-CS7)
A-1061-844-A s MOUNTED CIRCUIT BOARD, QA
(FOR VPL-ES2)
202 A-1078-663-A s MOUNTED CIRCUIT BOARD, V
203 A-1078-675-A s ADJUSTOR BLOCK ASSY WITH MOUNT
204 A-1605-748-A s DC MOTOR ASSY, ADJUSTOR
205 ! 1-818-098-11 s INLET, AC (WITH NOISE FILTER)
206 2-050-785-01 s FOOT (C), REAR
207 4-096-049-01 s FOOT, FRONT
208 4-382-854-01 s SCREW +PSW M3X8(EP-FE/ZN/CM2)
7-682-247-09 s SCREW +K 3X6
7-682-951-01 s SCREW +PSW 3X14(EP-FE/ZN/CM2)
7-685-547-19 s SCREW +BTP 3X10(EP-FE/ZNBK/CM2)
