Sony VPL-CS7 - Disassembly; Top Panel Assembly; H Board

1-2
VPL-CS7/ES2
1-3. Disassembly

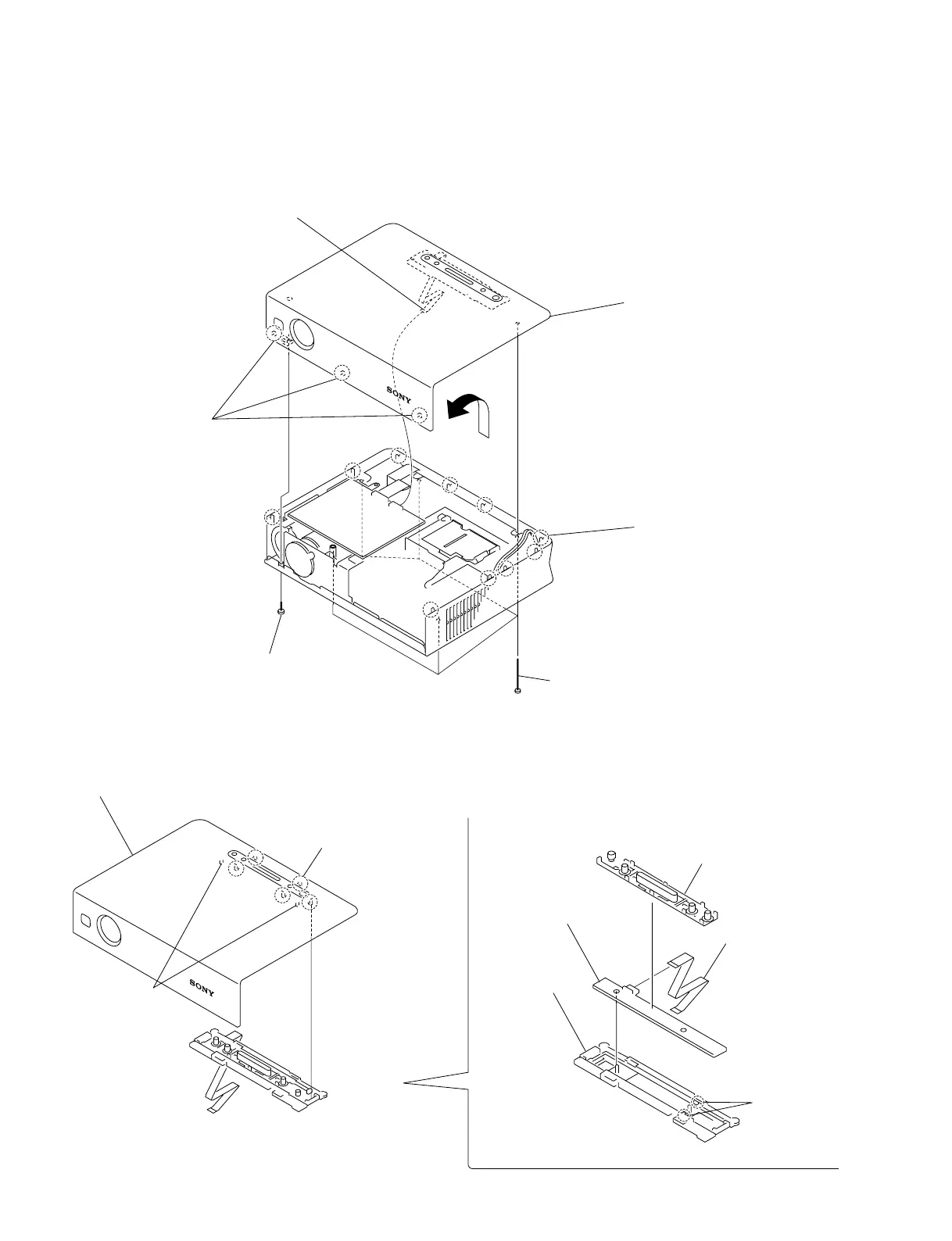

1-3-1. Top Panel Assembly
1 Five special screws
(+BV3 x 70)
6 Remove the top panel assembly
in the direction of the arrow.
2 Screw
(+PSW3 x 8)
C board
3 Three claws
4 Ten claws
1 Five claws
3 Top panel
5 Flat connector assembly
(CN805)
8 H board
4 Flat connector
assembly
6 Holder (H)
7 Button (H)
2 Two dowels
5 Two claws
CN10
1-3-2. H Board
. Remove the top panel assembly. (Refer to 1-3-1.)
