Sony VPL-CS7 - Page 43

4-5
VPL-CS7/ES2

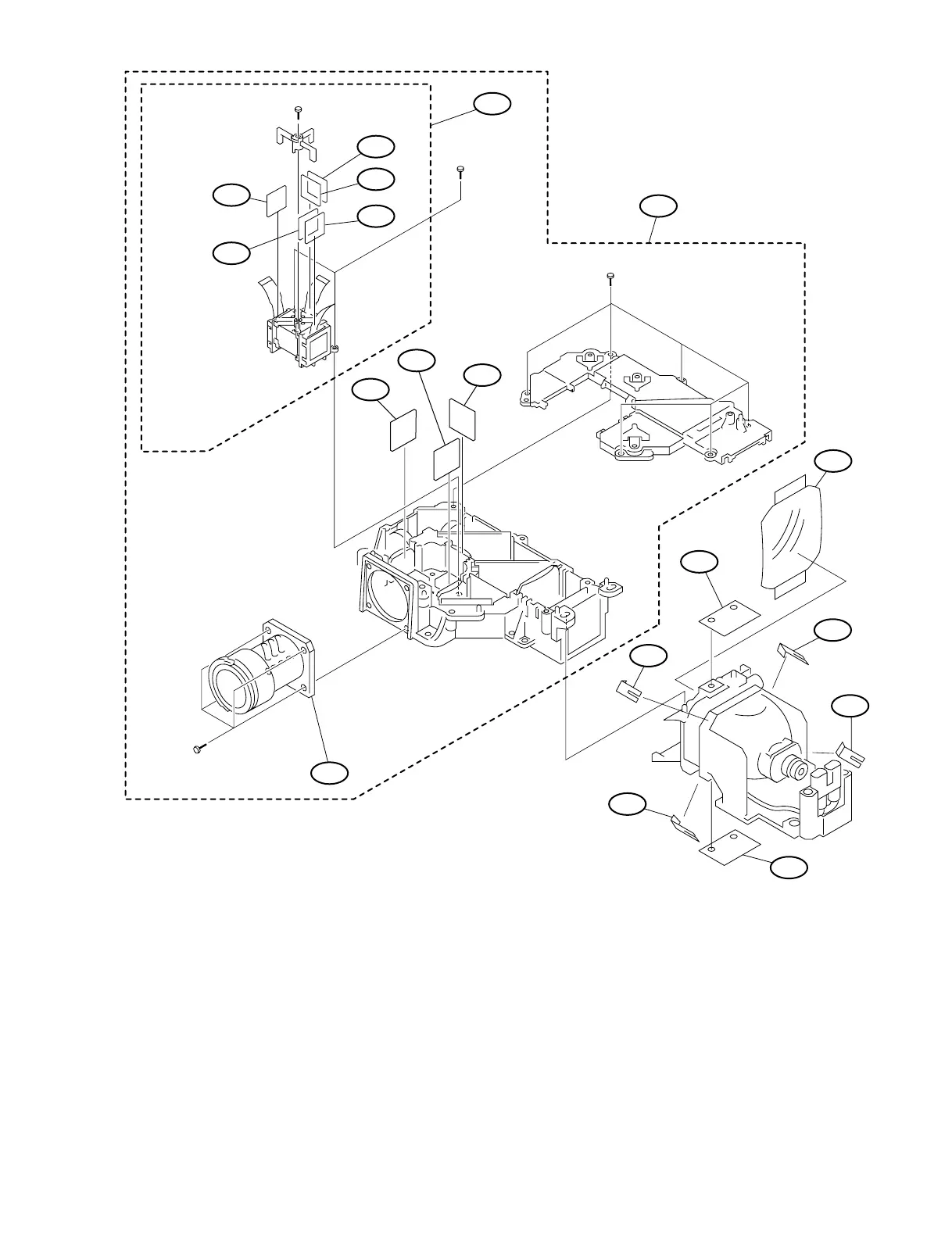

Optics
308
309
306
307
310
301
302
312
313
313
311
311
311
311
314
B2 x 5
PTP2 x 8
BVTP3 x 10
PS3 x 10
304
303
305
No. Part No. SP Description
301 A-1079-800-A s PRISM BLOCK ASSY
(FOR VPL-CS7)
A-1081-702-A s PRISM BLOCK ASSY
(FOR VPL-ES2)
302 A-1079-798-A s OPT UNIT ASSY
(FOR VPL-CS7)
A-1081-700-A s OPT UNIT ASSY
(FOR VPL-ES2)
303 A-1606-250-A s INCIDENCE POLARIZER (R) ASSY
304 A-1606-251-A s INCIDENCE POLARIZER (G) ASSY
(FOR VPL-CS7)
A-1606-634-A s IN-POLARIZATION (G) ASSY
(FOR VPL-ES2)
305 A-1606-252-A s INCIDENCE POLARIZER (B) ASSY
(FOR VPL-CS7)
A-1606-635-A s IN-POLARIZATION (B) ASSY
(FOR VPL-ES2)
306 A-1606-253-A s PRE RADIATION POLARIZER(G)ASSY
(FOR VPL-CS7)
A-1606-636-A s OUT-PRE-POLARIZER (G) ASSY
(FOR VPL-ES2)
307 A-1606-254-A s PRE RADIATION POLARIZER(B)ASSY
(FOR VPL-CS7)
A-1606-637-A s OUT-PRE-POLARIZER (B) ASSY
(FOR VPL-ES2)
308 A-1606-255-A s RADIATION POLARIZER (R) ASSY
309 A-1606-256-A s RADIATION POLARIZER (G) ASSY
310 A-1606-257-A s RADIATION POLARIZER (B) ASSY
311 4-089-523-01 s SPRING, LAMP
312 4-089-560-02 s LENS, CONCAVE
313 4-099-076-02 s SPRING, CONCAVE
314 A-1606-248-A s PROJECTION LENS ASSY
7-621-771-06 s SCREW +B2X5
7-685-105-19 s SCREW +PTP2X8(EP-FE/ZNBK/CM2)
7-685-647-79 s SCREW +BVTP3X10(EP-FE/ZNBK/CM2
