Sony ZS-2000 - Optical Pick-Up, Pick-Up Relay Board; Cl;Receiver Board

– 16 –
3-18. CL/RECEIVER BOARD
1 PWH 2.6x10
2 case, loop (rear)
5 CL/RECEIVER boar
d
6 connector
7 Removal the solders.
3 claw
4 claw

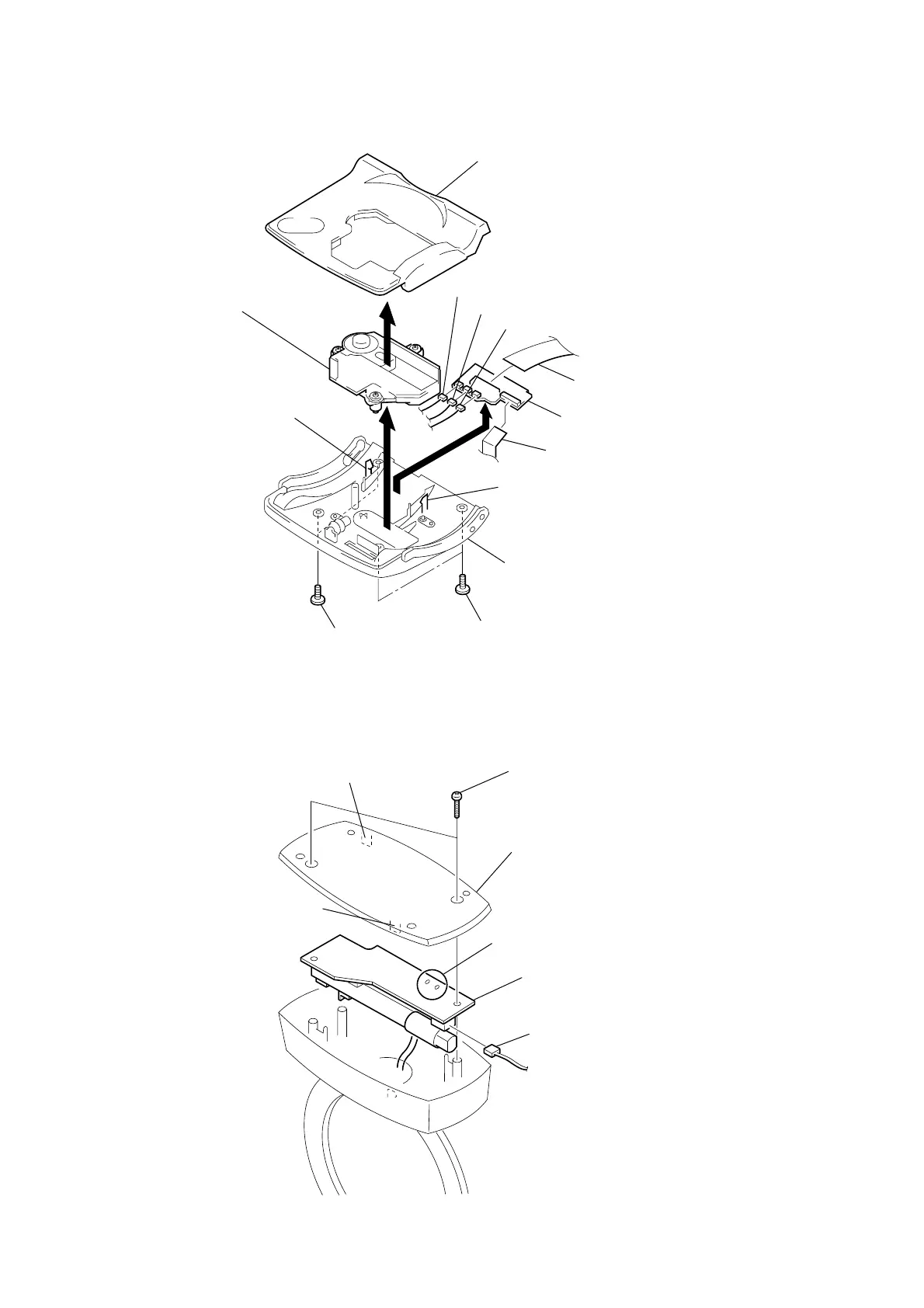

3-17. OPTICAL PICK-UP, PICK-UP RELAY BOARD
tray (bottom), CD
1 BTP 2.6x8
3 tray (top), CD
4 claw
5 claw
6 PICK-UP RELAY boar
d
7 CN707
8 CN706
9 CN702
0 CN704
qa CN703
qs optical pick-up block
2 BTP 2.6x8
