Sony ZS-2000 - Schematic Diagrams -Control Section

– 49 – – 50 –
Note on Schematic Diagram:
• Voltage is dc with respect to ground under no-signal
(detuned) condition.
no mark : FM
ZS-2000

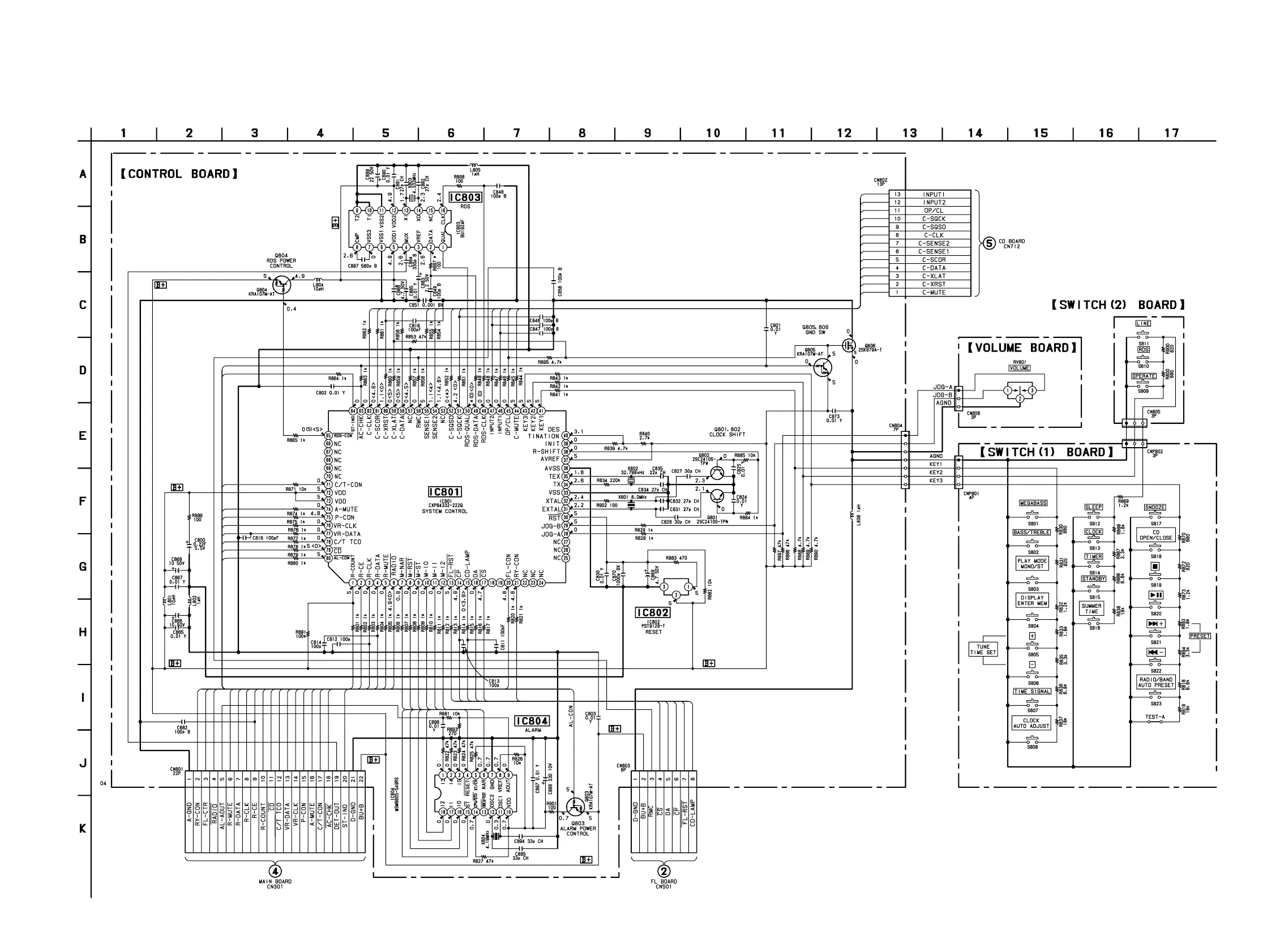

6-15. SCHEMATIC DIAGRAMS — CONTROL SECTION —• Refer to page 64 for IC Block Diagrams.
• Refer to page 31 for Note.
(Page 37)
(Page 45) (Page 53)
