Sony ZS-2000 - Schematic Diagrams -Main Section

– 45 – – 46 –
(R)
(L)
SP302
R-CH
SPEAKER
SP301
L-CH
SPEAKER
Note on Schematic Diagram:
• Voltage is dc with respect to ground under no-signal
(detuned) condition.
no mark : FM
ZS-2000

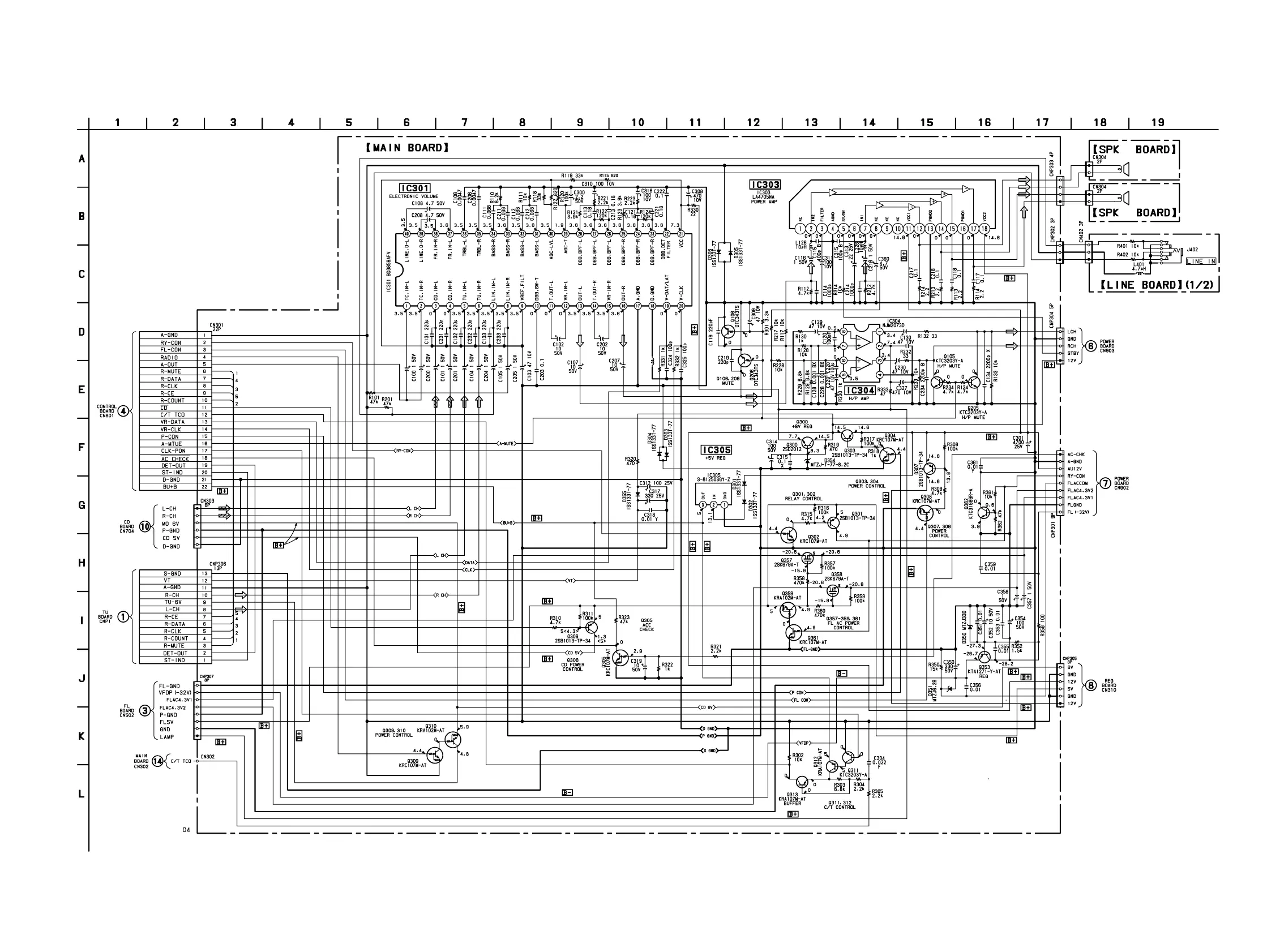

6-13. SCHEMATIC DIAGRAMS — MAIN SECTION —• Refer to page 64 for IC Block Diagrams.
• Refer to page 31 for Note.
(Page 49)
(Page 38)
(Page 34)
(Page 33)
(Page 57)
(Page 57)
(Page 57)
(Page 53)
