Sony ZS-2000 - Schematic Diagrams -Tuner Section

– 33 – – 34 –

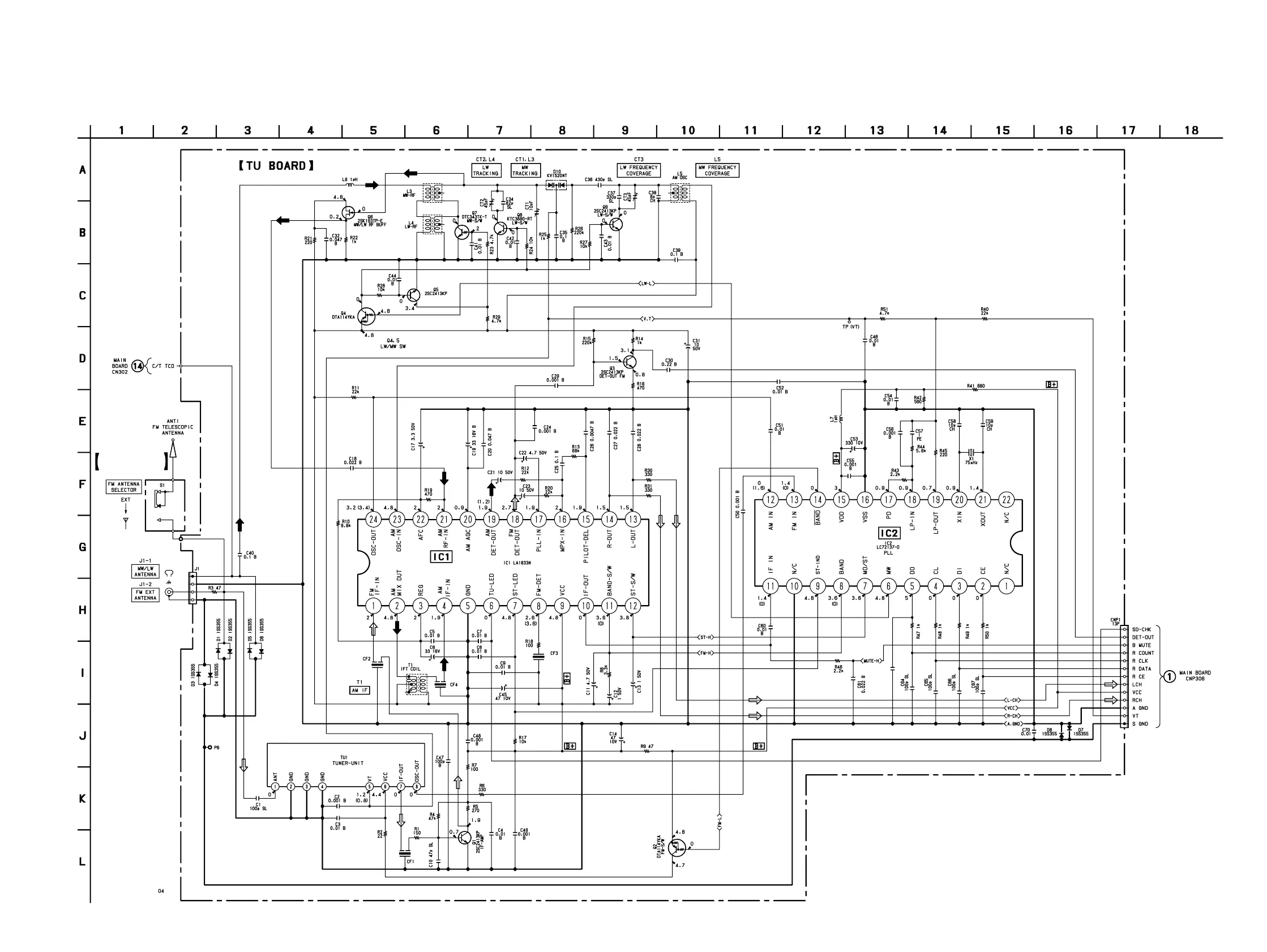

6-7. SCHEMATIC DIAGRAMS — TUNER SECTION —• Refer to page 61 for IC Block Diagrams.
• Refer to page 31 for Note.
Note on Schematic Diagram:
• Voltage is dc with respect to ground under no-signal
(detuned) condition.
no mark : FM
( ) : MW/LW
ZS-2000
(Page 45)
(Page 45)
EXT ANT
SWITCH BOARD
