Sony ZS-2000 - Schematic Diagrams -CD Section

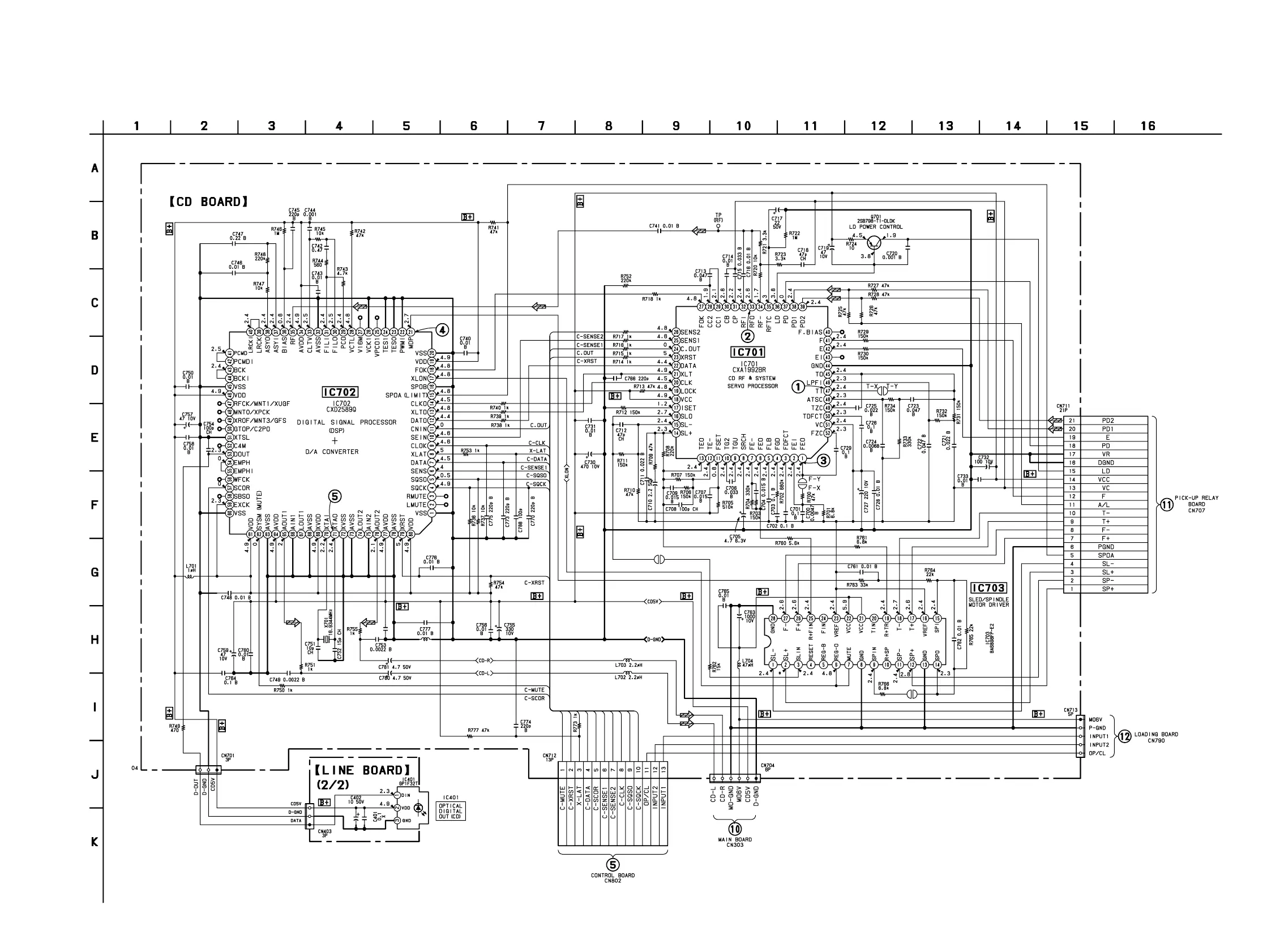

6-9. SCHEMATIC DIAGRAMS — CD SECTION —• Refer to page 62 for IC Block Diagrams.
• Refer to page 31 for Note.
– 37 – – 38 –
Note on Schematic Diagram:
• Voltage and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : CD STOP
ZS-2000
(Page 50)
(Page 45)
(Page 41)
(Page 41)
