Sony ZS-2000 - Rear Cabinet Section

– 66 –

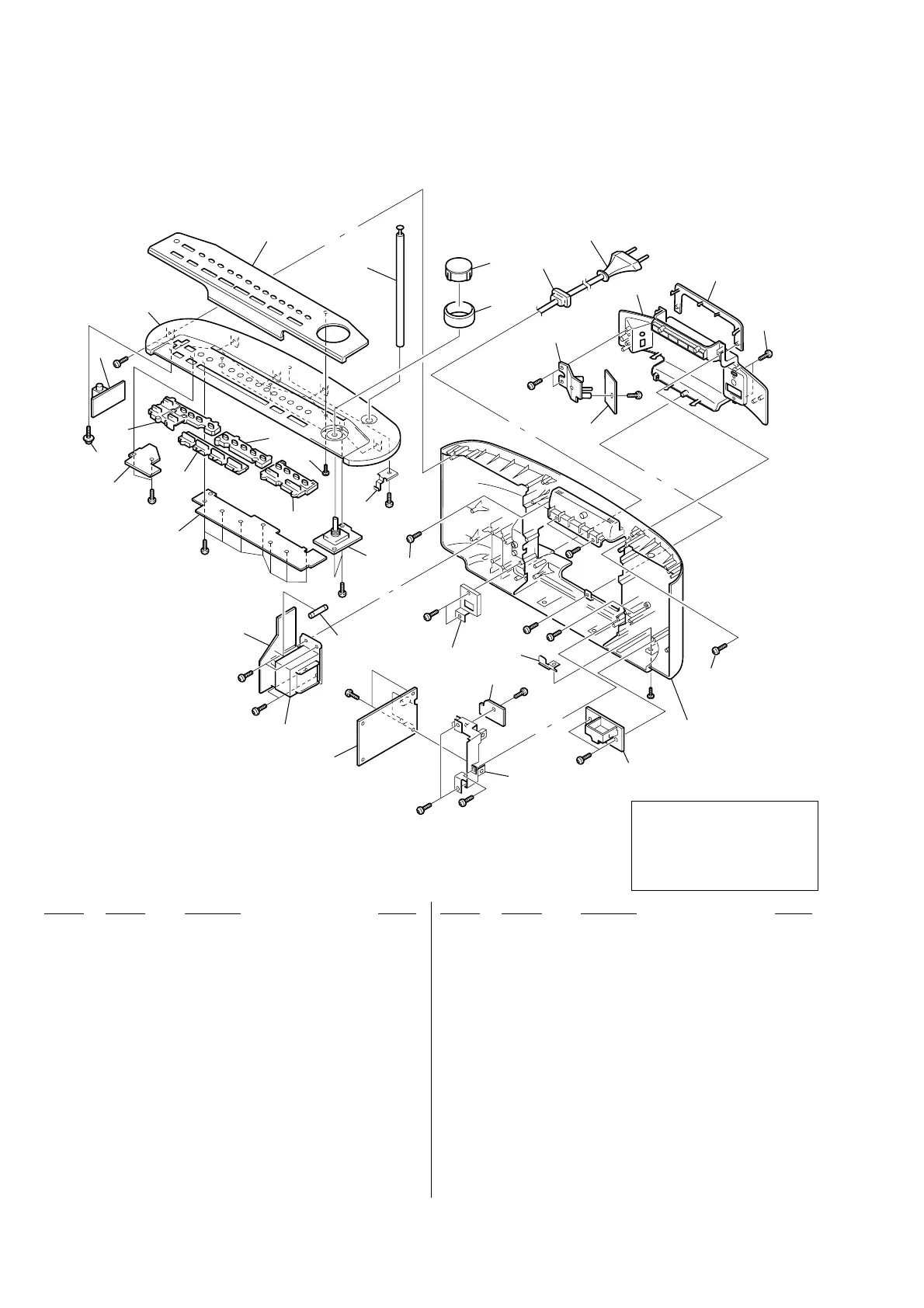

7-2. REAR CABINET SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 3-041-419-01 CABINET, REAR
* 52 1-676-091-11 EXT ANT SWITCH BOARD
* 53 A-3323-470-A TU BOARD, COMPLETE
* 54 A-3323-473-A POWER BOARD, COMPLETE
* 55 1-676-089-11 VOLUME BOARD
* 56 A-3323-480-A SWITCH (1) BOARD, COMPLETE
* 57 1-676-857-11 SWITCH (2) BOARD
58 3-041-429-01 BUTTON, SNOOZE
59 3-041-428-01 BUTTON, CD
60 3-041-427-01 BUTTON, TIME
61 3-041-426-01 BUTTON, POWER
62 4-960-167-01 SCREW (3X8) (DIA.10), +PWH
* 63 1-677-451-11 H/P BOARD
64 3-041-425-01 CABINET, UPPER
65 3-041-430-01 ALUMINUM, UPPER
66 3-041-432-01 COVER, KNOB
67 3-041-431-01 KNOB (VOL)
68 3-703-244-11 BUSHING (2104), CORD
0 69 1-696-169-21 CORD, POWER (2.5A/250V)
70 3-044-355-01 HOLDER, LINE
* 71 1-677-452-11 LINE BOARD
72 3-041-421-01 COVER, HEAT SINK
73 4-951-620-11 SCREW (2.6X10), +BVTP
74 3-041-423-01 TERMINAL, ANT
75 3-048-309-01 SCREW (2X8) (DIA.6), +PWH TIGHT
76 3-048-160-01 COVER, HANDLE
77 3-048-308-01 BRACKET (TOP)
78 A-3322-824-A REG BOARD, COMPLETE
ANT1 1-754-101-11 ANTENNA, TELESCOPIC
0 F901 1-532-505-51 FUSE (T5AL/250V)
0 T901 1-435-233-11 TRANSFORMER, POWER
51
78
73
52
74
53
54
55
56
57
58
75
77
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
76
#5
ANT1
#5
#3
#5
#5
#5
not supplied
not supplied
#6
#6
T901
F901
#5
#5
#5
#5
#5
#5
#5
#4
#5
#4
#4
73
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
