Sony ZS-2000 - Exploded Views; Front Cabinet Section

– 65 –
SECTION 7
EXPLODED VIEWS
Ref. No. Part No. Description Remark

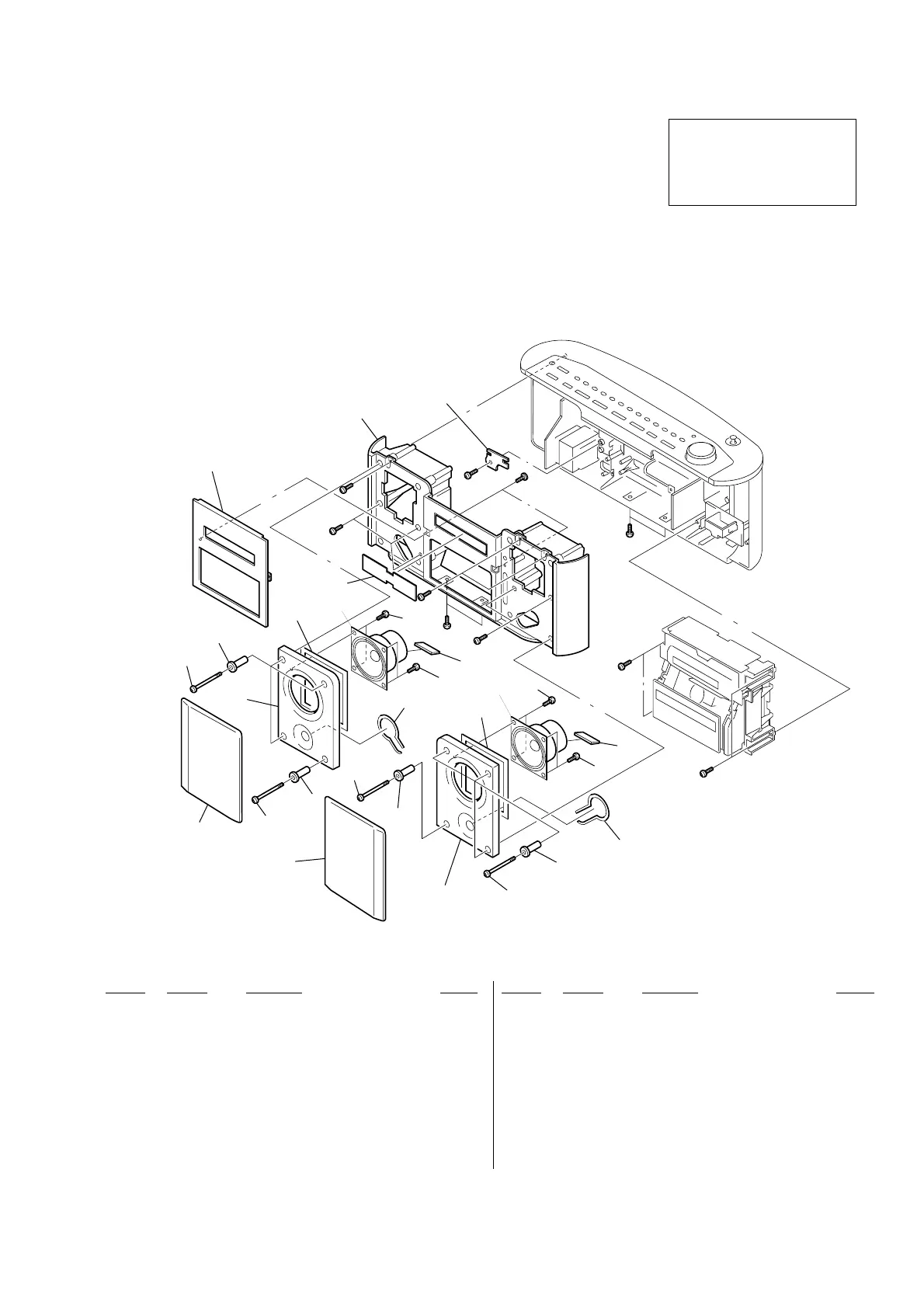

7-1. FRONT CABINET SECTION
Ref. No. Part No. Description Remark
* 1 1-677-455-11 SPK (L) BOARD
2 3-043-040-01 SCREW (4X10), +BVTP TAPPING
3 3-048-158-01 CUSHION (C), SPEAKER
4 3-048-161-01 CUSHION (R), SPEAKER
5 3-041-456-11 BUSH, NET
6 3-043-036-01 SCREW (3X55), +BVTP TAPPING
7 3-041-456-01 BUSH, NET
8 X-3378-154-1 NET SUB ASSY (R), SARAN (GREEN)
8 X-3379-077-1 NET SUB ASSY (R), SARAN (BLUE)
9 3-048-159-01 CUSHION (L), SPEAKER
10 X-3378-153-1 NET SUB ASSY (L), SARAN (GREEN)
10 X-3379-076-1 NET SUB ASSY (L), SARAN (BLUE)
11 3-041-447-01 ALUMINUM, FRONT
12 3-041-445-01 WINDOW, FLT
13 3-041-444-01 CABINET, FRONT
14 X-3379-283-1 SPEAKER (FRONT) SUB ASSY (R)
15 X-3379-282-1 SPEAKER (FRONT) SUB ASSY (L)
* 16 1-677-455-11 SPK (R) BOARD
SP301 1-529-753-11 SPEAKER (8cm) (L-CH)
SP302 1-529-753-11 SPEAKER (8cm) (R-CH)
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
• Accessories and packing materials are
given in the last of this parts list.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
R
R
1
16
2
2
2
2
3
3
4
5
6
14
7
6
8
10
6
7
5
15
6
9
11
12
13
#5
#2#5
#5
SP302
SP301
not supplied
#1
#1
#1
#1
#1
#1
