Sony ZS-2000 - Cabinet, Front

– 8 –

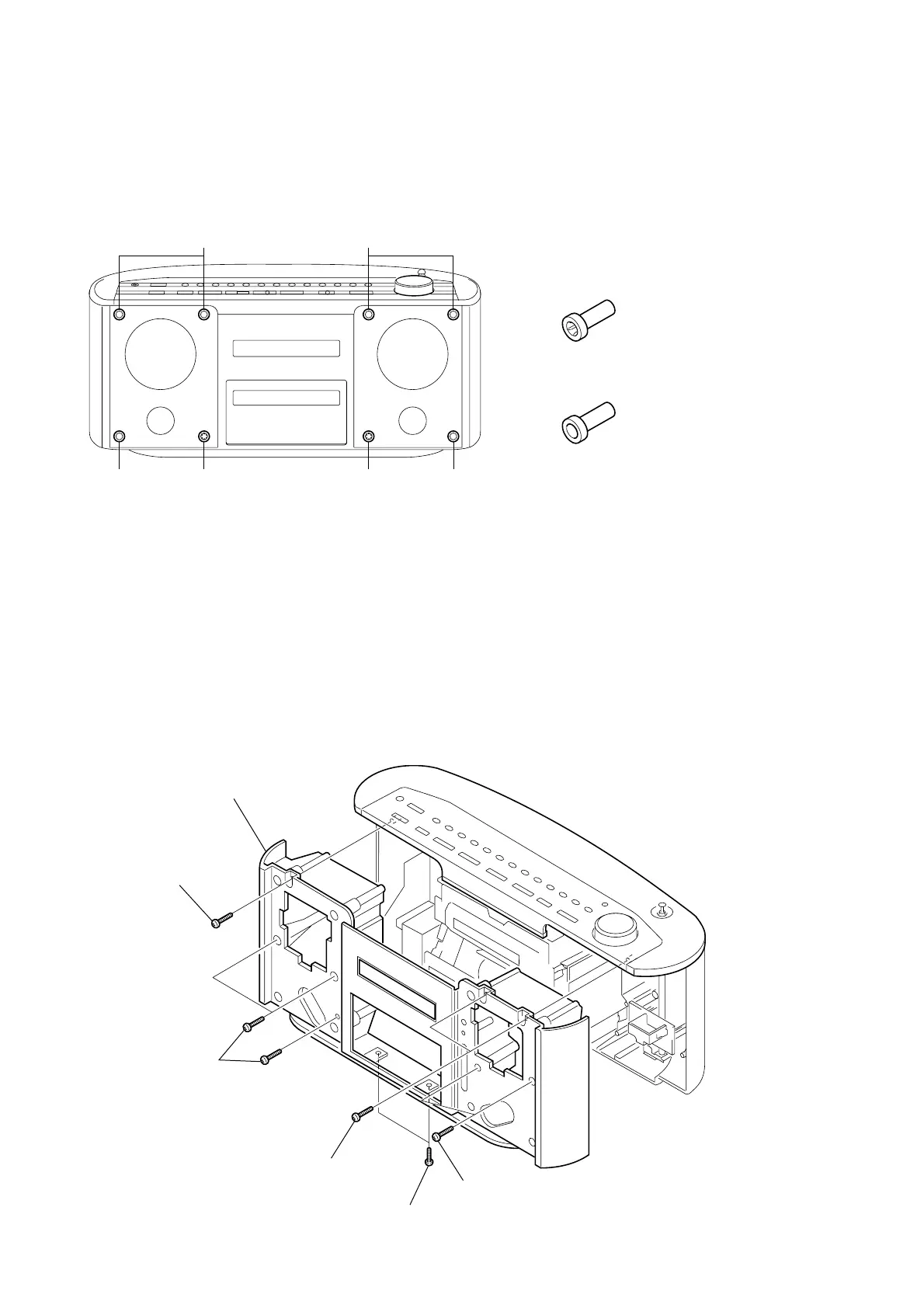

3-2. CABINET, FRONT
1 BVTP 3x10
2 BVTP 3x12
3 BVTP 3x12
4 BVTP 3x12
5 BVTP 3x12
6 cabinet, front
• Note for installation of the speaker (front) sub assy
AB
B
A B
B
There are two types of net “bush, net”:
Type-A: 3-041-456-11 (with groove in the tube)
Type-B: 3-041-456-01 (without groove in the tube)
The type A of “bush, net” should be installed at place A in the left figure.
The t
y
pe B of “bush, net” should be installed at place B.
