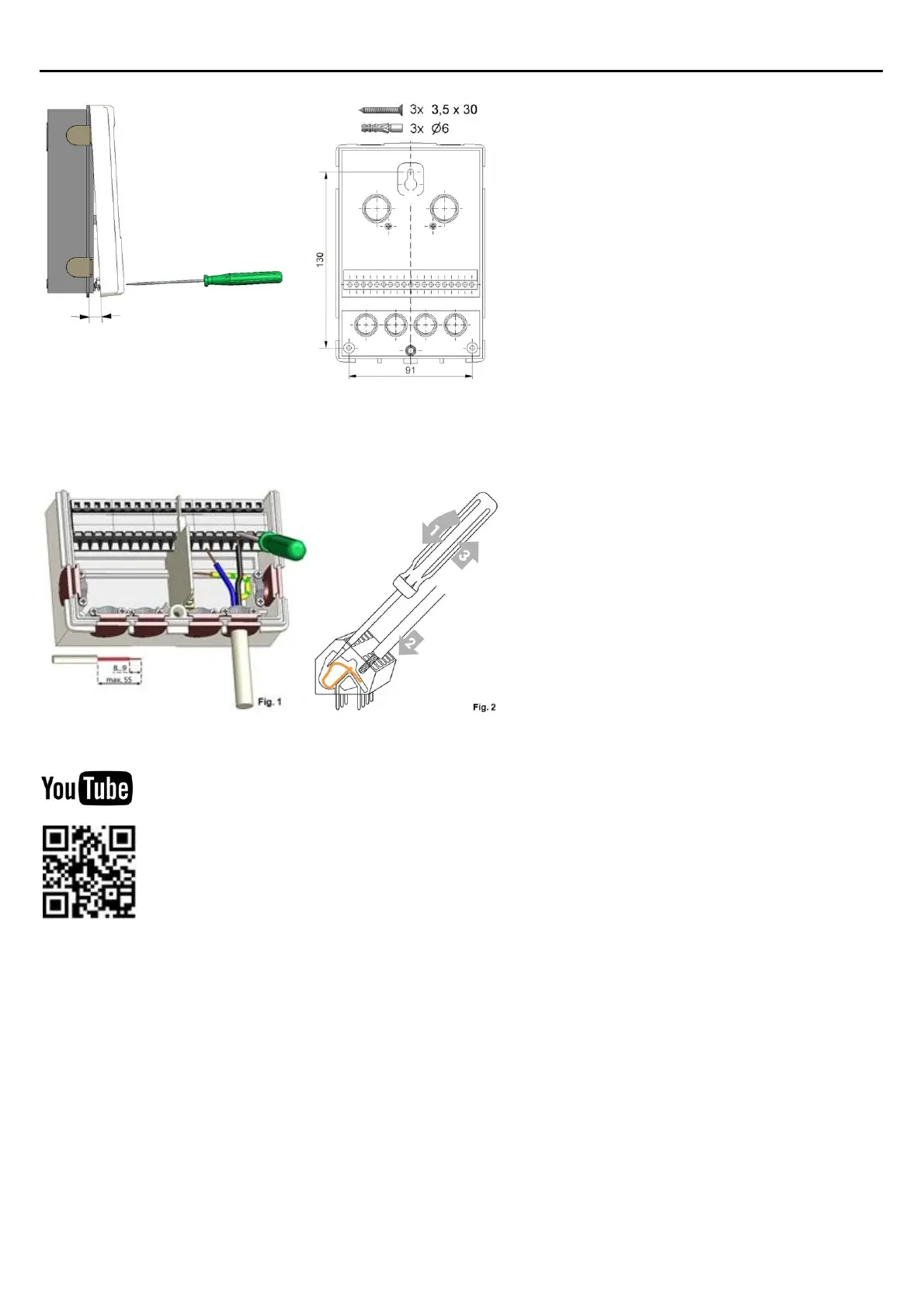

Wall Installation
1. Unscrew cover screw completely.
2. Carefully pull upper part of housing from lower part.
During the removal, the brackets are released as
well.
3. Set upper part of housing aside. Do not touch the
electronics.
4. Hold the lower part of the housing in the selected
position and mark the 3 mounting holes. Make sure
that the wall surface is as even as possible so that
the housing does not become distorted when
screwed on.
5. Using a drill and size 6 bit, drill three holes at the
points marked on the wall and push in the plugs.
6. Insert the upper screw and screw it in lightly.
7. Fit the upper part of the housing and insert the
other two screws.
8. Align the housing and tighten the three screws.
1. Open the terminal cover.
2. Strip lines a max. of 55 mm, assemble the strain
reliefs, strip wire ends 8-9 mm (Figure 1)
3. Open the terminals with a fitting screwdriver (figure
2) and connect the electrical system to the con-
troller.
4. Clip on the terminal cover again and close it with
the screw.
5. Turn on mains supply and put the controller into
operation.
If problems occur with the operation of the terminals, our video on our YouTube page can help you:
http://www.sorel.de/youtube
11
