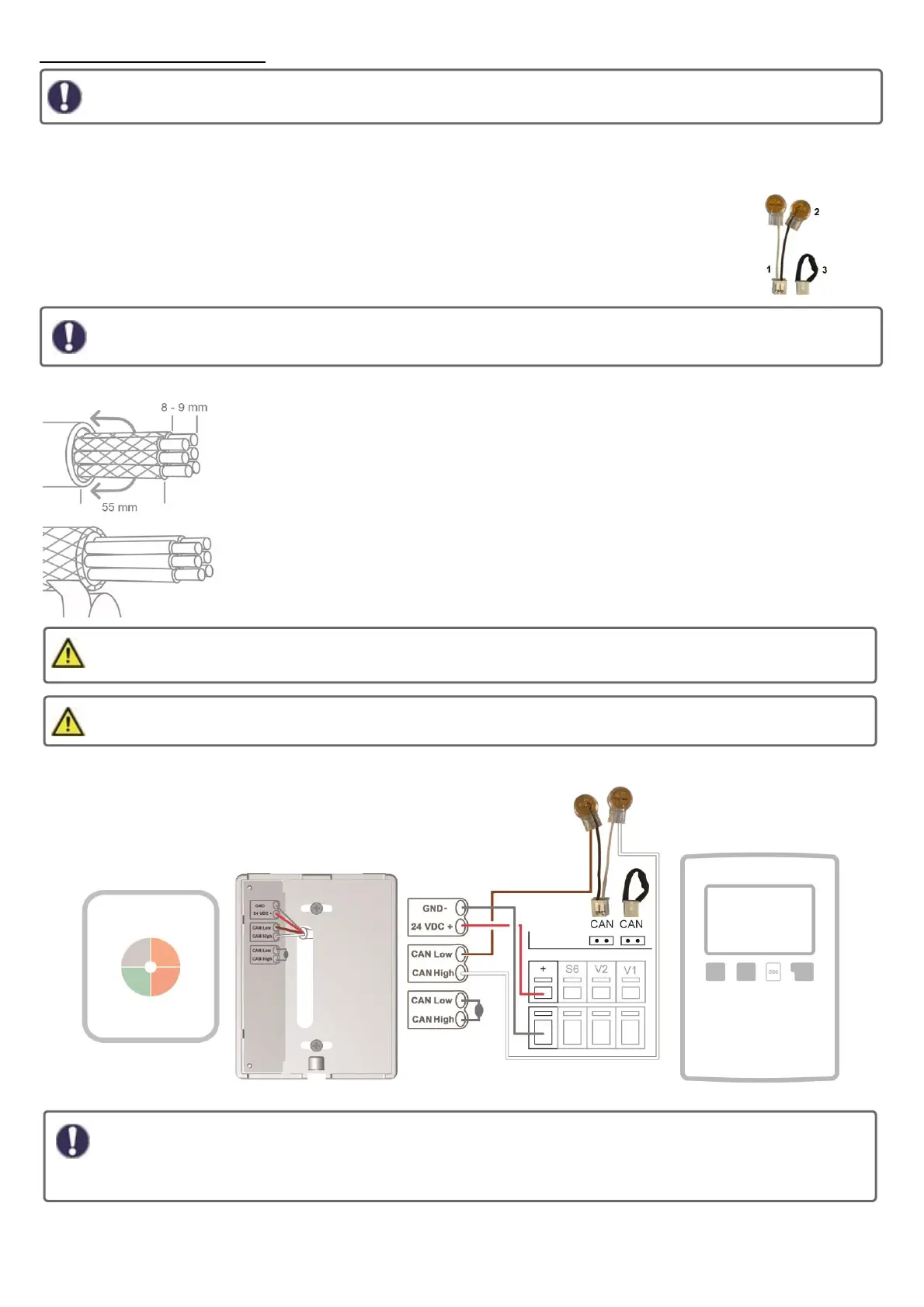

°CALEON Room Controller
°CALEON is an optional accessory and is normally not included in the scope of supply.
Accessories
Each °CALEON comes with an accessory bag that contains everything (except the CAN cable) needed to connect to an HCC. The fol-
lowing components are used for the electrical connection:
1. Molex adapter for the CAN connection
2. Single wire connector to easily connect the Molex adapter to the CAN cable
3. Terminating resistor for the 2nd CAN bus connection on the HCC (if it is not used).
Can cable: <3m; at >=3m a shielded, twisted-pair cable is to be used. Isolate shielding and connect it to the protective con-
ductor on one end. Max. cable length of the complete system 200 m.
Wiring
Cable strip off max. 55 mm, insulate all wire ends 8-9 mm and
insert shielding over the cable. Insulate the entire shielding with
tape.
Wire ferrules made of brass can be difficult to clamp due to their asymmetric crimping shape. In this case, remove the wire
ferrule. The plug-in terminals are also suitable for flexible cables.
Any contact between protective conductor and circuit board can cause serious damage.
Wiring of a °CALEON with controller
When connecting the CAN-Bus cable, make sure that the correct pairs of wires are twisted. The assignment is identical
to the terminal pairs on the °CALEON room controller.
-> GND + 24VDC
-> CAN Low + CAN High
