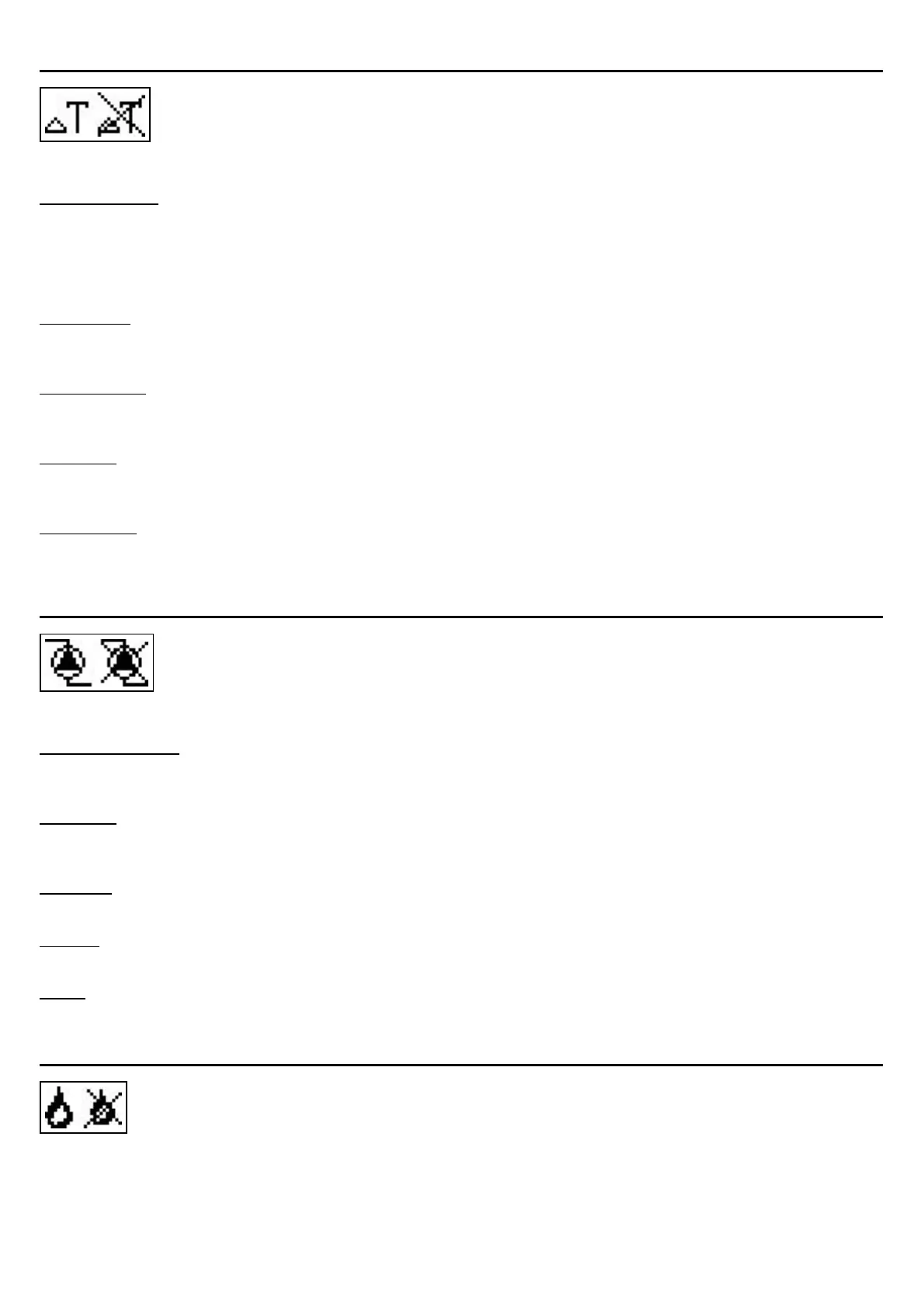

Difference
The assigned relay is activated as soon as there is a preset temperature difference (ΔT on/off) between the source and target sensors.
Δ T Difference
Switch on - difference:
If this temperature difference is reached, the relay will switch on.
Switch off difference:
If this temperature difference is reached, the relay will switch off.
DF-Source
Heat source sensor/heat supplier for differential function
Adjusts the sensor from the heat source.
Tmin Source
Minimum temperature on the source sensor for approval of the difference relay.
If the temperature on the source sensor is below this value, the difference function will not be switched on.
DF-Drain
Heat decreasing sensor / heat customer for the different functions
Sets the sensor of the heat customer.
Tmax Drain
Maximum temperature on the target sensor for approval of the difference relay.
If the temperature at the target sensor exceeds this value, the difference function will not be turned on.
Heat transfer
With this function, energy from one storage can be loaded in another.
Δ T Heat transfer
Temperature difference for the transfer. If the temperature difference between the sensors ∆T transfer On is reached, the relay is
switched on. As soon as the difference on ∆T Transfer off falls, the relay is turned off again.
HT Tmax
Target temperature of the target storage
If this temperature is measured on the sensor in the target storage, the Heat Transfer will be shut down.
HT Tmin
Minimum temperature in the source storage for the approval of the Heat Transfer.
Source
In this menu, the sensor is set, which is placed in the storage from which the energy is extracted.
Drain
In this menu, the sensor is set that is placed in the storage in which it is loaded.
Thermostat
Through the thermostat function, additional energy can be added to the system while being time and temperature controlled. The ther-
mostat function can be used in 2 modes.
"On" = the relay is switched on when all switching conditions are reached
"Inverted" = the relay is switched off when all switching conditions are reached and is otherwise switched on.
