Configuration
First, the °CALEON must be set up directly on the room controller. The automatic start-up wizard (Overview > Operating Mode > Menu
> Expert > Factory Settings) and the °CALEON user manual will help you.
If not already done, set up the HCC now with the help of the commissioning wizard.
The setup of the room controller is done in the following menu:
5. Settings -> 5.1. Heating circuit 1 - > 5....24. Room controller
5....1. Thermostat
Here, you select the room created in °CALEON. The rooms represented by symbols in °CALEON are given written names in the HCC.

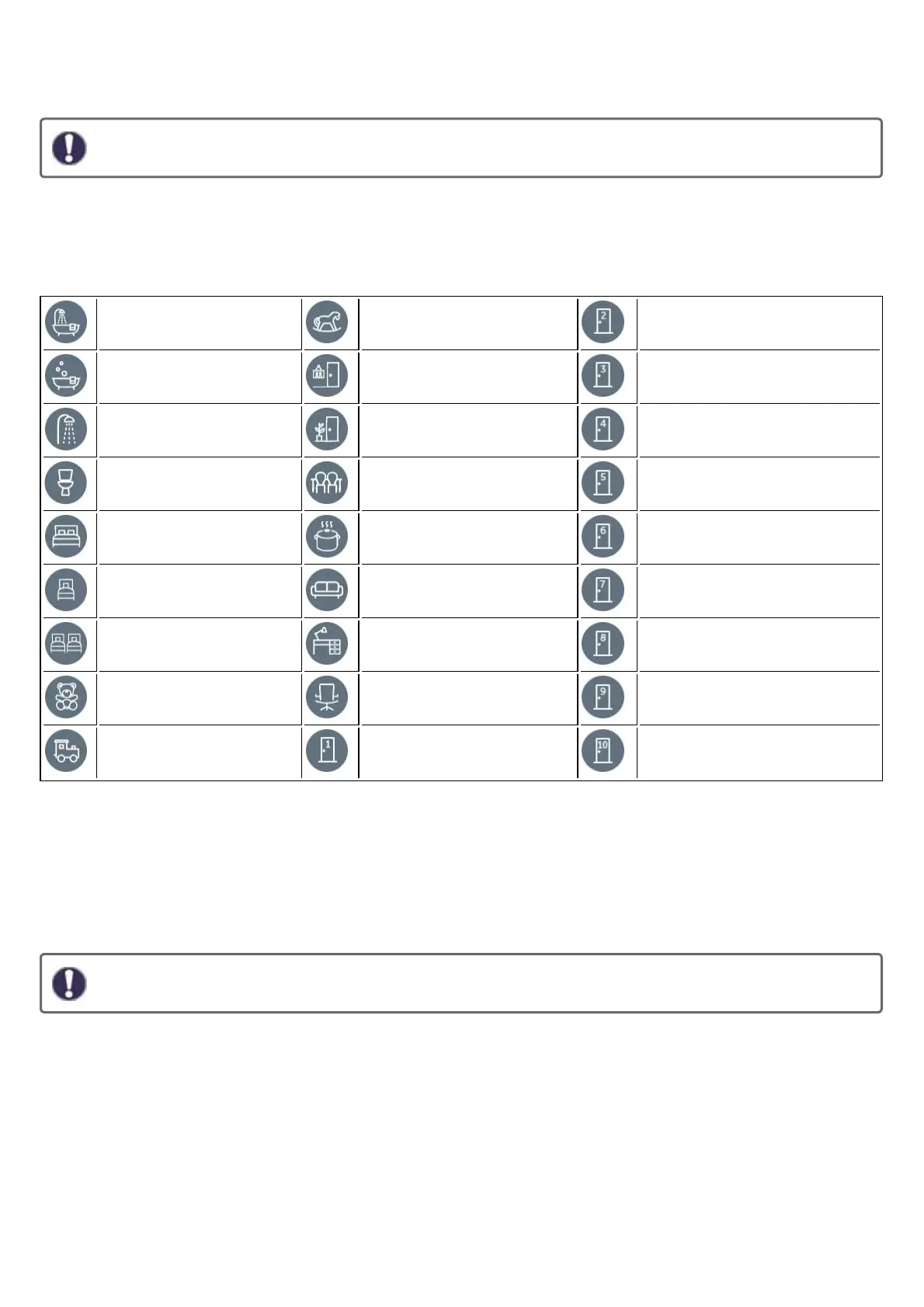

The assignment can be found in the following table.
Bathroom Children 3 Room 2
Bathroom 2 Corridor Room 3
Bathroom 3 Corridor 2 Room 4
Bathroom 4 Dining Room 5
Bedroom Kitchen Room 6
Bedroom 2 Living Room 7
Bedroom 3 Office Room 8
Children Office 2 Room 9
Children 2 Room 1 Room 10
5....12. Room controller
This value can be adjusted as to the amount of influence the room temperature will have on the reference flow temperature, as a per-
centage. For each degree deviation between room temperature and reference temperature, the percentage of the calculated set flow
temperature set here is added to the set flow temperature or subtracted from it up to the min. or max. values set under the protective
functions.
Example: Reference room temp.: e.g. 25 °C; room temp.: e.g. 20 °C ±5 °C. Calculated reference temp.: e.g. 40 °C: room controller: 10
%= 4 °C 5 X 4 °C= 20 °C. Accordingly, 20 °C are added to the reference flow temperature, giving 60 °C. If the value is higher than the
one set in "Max. flow temp", the resulting temperature will be the one set in "Max. flow temp".
The setting parameters "5....13. Room ref. day“ and "5....14. Room ref. night" have no influence, when using a °Caleon and
can be ignored.
Under "5....2. Thermostat" further °CALEONs can be set optionally as room controllers. The same system as for the first room controller
applies.
5. Settings -> 5.1. Heating circuit 1 -> 5.15. Heating circuit off
If you want the heating circuit to switch off in addition to summer-winter shutdown, even if the room temperature is reached, set "sum-
mer + room" here.
25
