Sorensen DCS-E Series - Page 21

INSTALLATION and OPERATION SORENSEN DCS SERIES MANUAL
2-12
SW1-1 SW1-2 SW1-3 SW1-4 SW1-5 SW1-6 SW1-7 SW1-8
CLOSED
CONNECTOR J3
0-5V
1312
25
3 1
14
SWITCH SW1
OPEN
Switch SW1
SW1-1 Off (Open)
SW1-2 Off (Open)
SW1-3 Off (Open)
SW1-4 On (Closed)
SW1-5 Off (Open)
SW1-6 Off (Open)
SW1-7 Off (Open)
SW1-8 On (Closed)

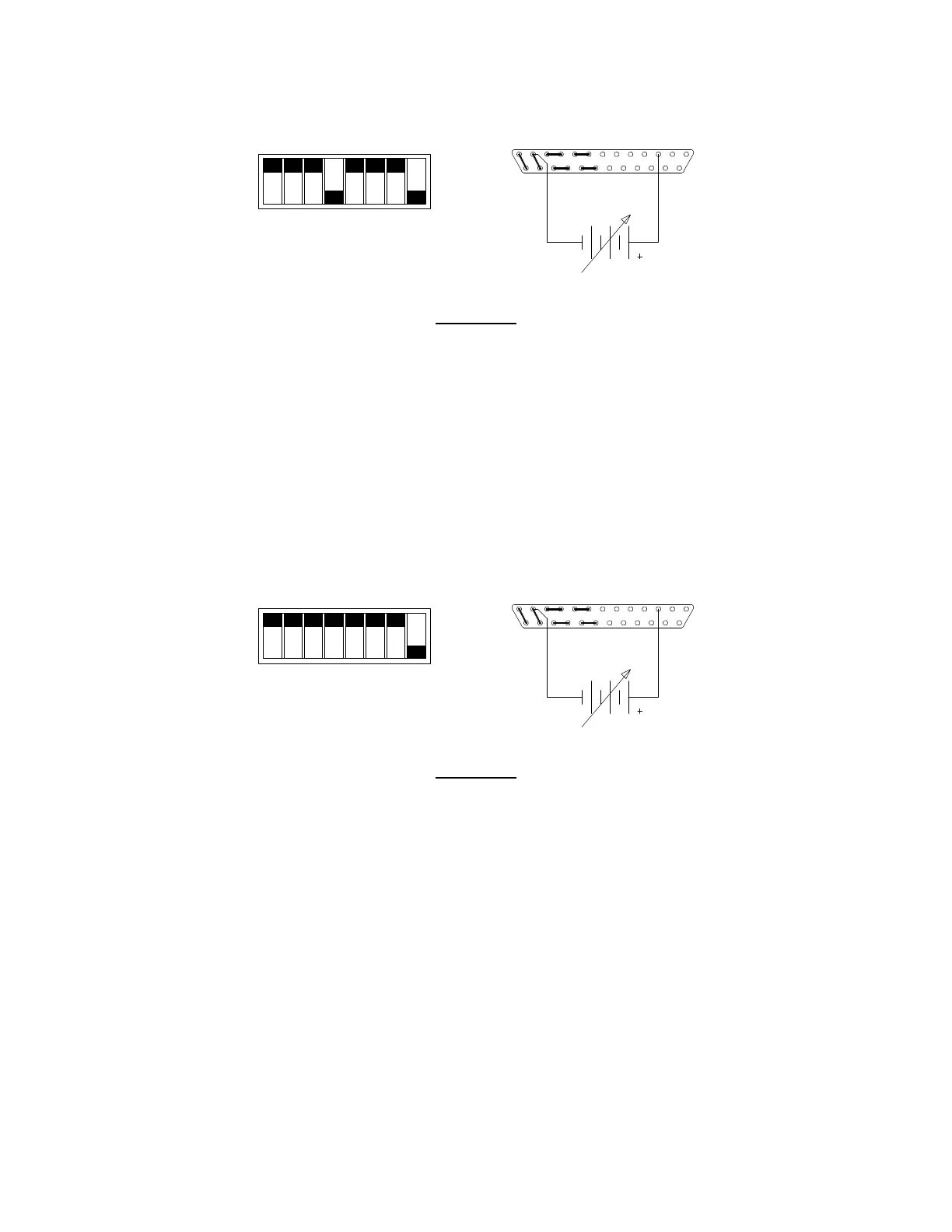

Switch SW1 and Connector J3 Configuration
for 0-5Vdc OVP Programming
(J3 sense line, voltage control and current control jumpers shown set for local operation)
SW1-1 SW1-2 SW1-3 SW1-4 SW1-5 SW1-6 SW1-7 SW1-8
CLOSED
CONNECTOR J3
0-10V
1312
25
3 1
14
SWITCH SW1
OPEN
Switch SW1
SW1-1 Off (Open)
SW1-2 Off (Open)
SW1-3 Off (Open)
SW1-4 Off (Open)
SW1-5 Off (Open)
SW1-6 Off (Open)
SW1-7 Off (Open)
SW1-8 On (Closed)
Switch SW1 and Connector J3 Configuration
for 0-10Vdc OVP Programming
(J3 sense line, voltage control and current control jumpers shown set for local operation)
