SORENSEN DCS SERIES MANUAL INSTALLATION and OPERATION
2-17
SW1-1 SW1-2 SW1-3 SW1-4 SW1-5 SW1-6 SW1-7 SW1-8
CLOSED
CONNECTOR J3
0-5V
1312
25
9 1
14
SWITCH SW1
OPEN
Switch SW1
SW1-1 Off (Open)
SW1-2 Off (Open)
SW1-3 Off (Open)
SW1-4 On (Closed)
SW1-5 Off (Open)
SW1-6 Off (Open)
SW1-7 Off (Open)
SW1-8 On (Closed)

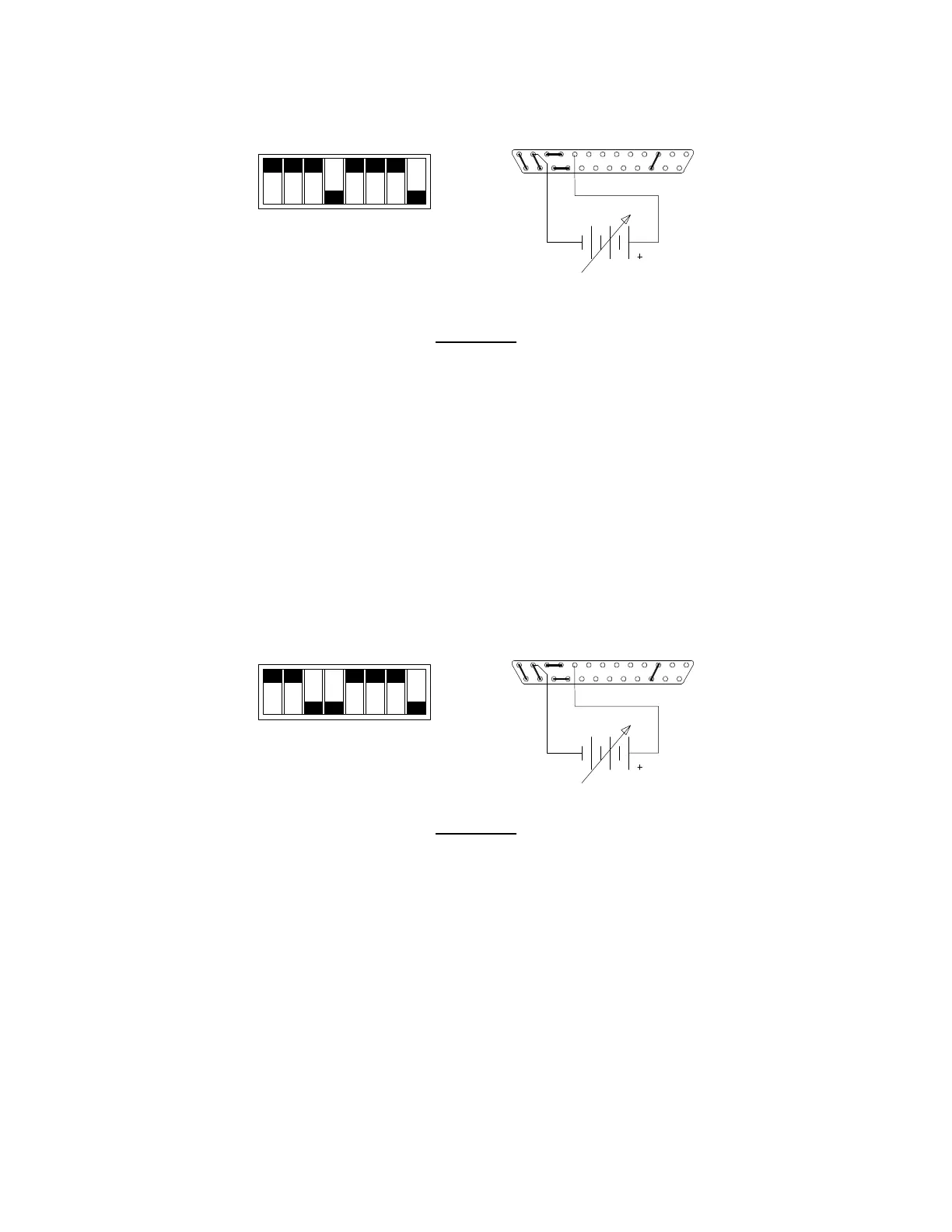

Switch SW1 and Connector J3 Configuration
for 0-5V Programming of the Output Voltage
(J3 sense line, OVP and current control jumpers shown set for local operation)
For programming with a 0-10Vdc source, close switch SW1-3 and replace the 0-5V source with a 0-10V source.
SW1-1 SW1-2 SW1-3 SW1-4 SW1-5 SW1-6 SW1-7 SW1-8
CLOSED
CONNECTOR J3
0-10V
1312
25
9 1
14
SWITCH SW1
OPEN
Switch SW1
SW1-1 Off (Open)
SW1-2 Off (Open)
SW1-3 On (Closed)
SW1-4 On (Closed)
SW1-5 Off (Open)
SW1-6 Off (Open)
SW1-7 Off (Open)
SW1-8 On (Closed)
Switch SW1 and Connector J3 Configuration
for 0-10V Programming of the Output Voltage
(J3 sense line, OVP and current control jumpers shown set for local operation)
The output current limit can be programmed using a 0-5Vdc or 0-10Vdc external voltage source. Selection of the
programming voltage is done using switches SW1-1 and SW1-2 as indicated below:
