833 User Guide
35

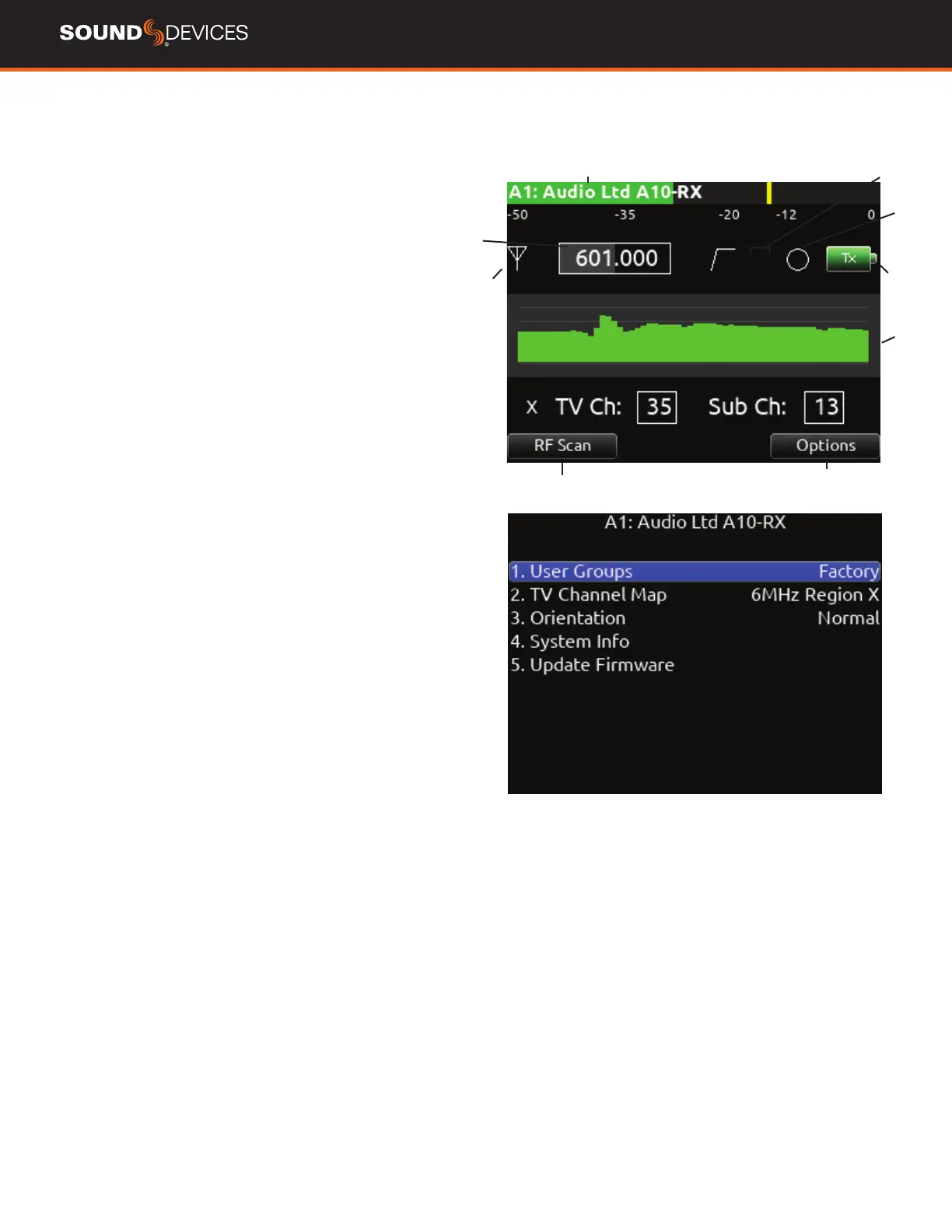

Receiver Setup Screens
When the SL-2 is attached, you can access Receiver Setup screens
for any of the supported SuperSlot receivers available. Receiver Setup
screens provide access to individual RX RF scanning, menus for re-
ceiver setup, RF frequency adjustment, RF and audio level monitoring,
TX recording status, Tx Limiter/Overload/Mute status (A10-TX only)
and more. The TX status and menu settings provided depend on the
type of RX being used.
Access the Receiver Setup screen from within the Rx Overview screen
by selecting the receiver channel (A1-A4, B1-B4) using the Select
knob.
POST-TRIM CHANNEL METERING Displays the post-trim audio
level of the 833 channel receiving audio from the SL-2 source.
When
the SL-2 source is not routed to an 833 channel, no signal is displayed
on the meters.
RF FREQUENCY Set Receiver channel frequency in MHz or by TV
channel and Sub channel.
TX BATTERY LEVEL: Displays the battery level of the paired TX, if
applicable.
Green = over 50%
Yellow = over 20%
Orange = over 10%
Red = less than 10%.
TX RECORD STATUS Indicates the record status of the paired trans-
mitter, if supported.
Red = recording
TX STATUS BOX (A10-TX only): Indicates paired TX mute, Limiter, and
Audio Overload status.
Blue with ‘M’ = TX Mute On
Yellow with ‘L’ = TX Limiting
Red with ‘O’ = TX Audio Overload
RF LEVEL HISTORY Displays the RF level over a period of time.
Duration of RF History is set in SL-2 Options>RF History Duration
parameter from 30 to 600 seconds in 10 s steps, default duration is
30 s. The taller the green bar, the healthier the received RF signal. A
red bar signies receiver RF overload (A10-RX only).
RX ANTENNA ICON Indicates RF signal status.
Solid white = locked to antenna signal
Flashing white = antenna signal unlocked
Solid Red = antenna signal overload
Gray = no receiver detected
(Not applicable to the Lectrosonics SRb/SRc which uses ‘P’ to indi-
cate pilot tone lock status.)
RF SCAN Instigates an RF Scan of the environment using an indi-
vidual SuperSlot receiver. Use the Mic/Tone toggle switch to start the
scan.
OPTIONS Provides access to additional settings of the selected
receiver. Options vary depending on the manufacturer and model of
the receiver selected. Please refer to the user guide provided by the
manufacturer of the receiver for more details.
Post-Trim Channel Metering
RF Frequency
TX Battery Level
TX Record Status
TX Status Box
RF Level History
RF Antenna Icon
RF Scan Options
AUDIO LTD. A10-RX
