2-3.3 Motherboard Connector
2-3.3.1 IDE Device Installation (HDD, CD-ROM)
This Motherboard offers two primary and secondary IDE device
connectors (IDE1, IDE2). It can support up to four high-speed Ultra DMA
33/66/100HDD or CD-ROM.

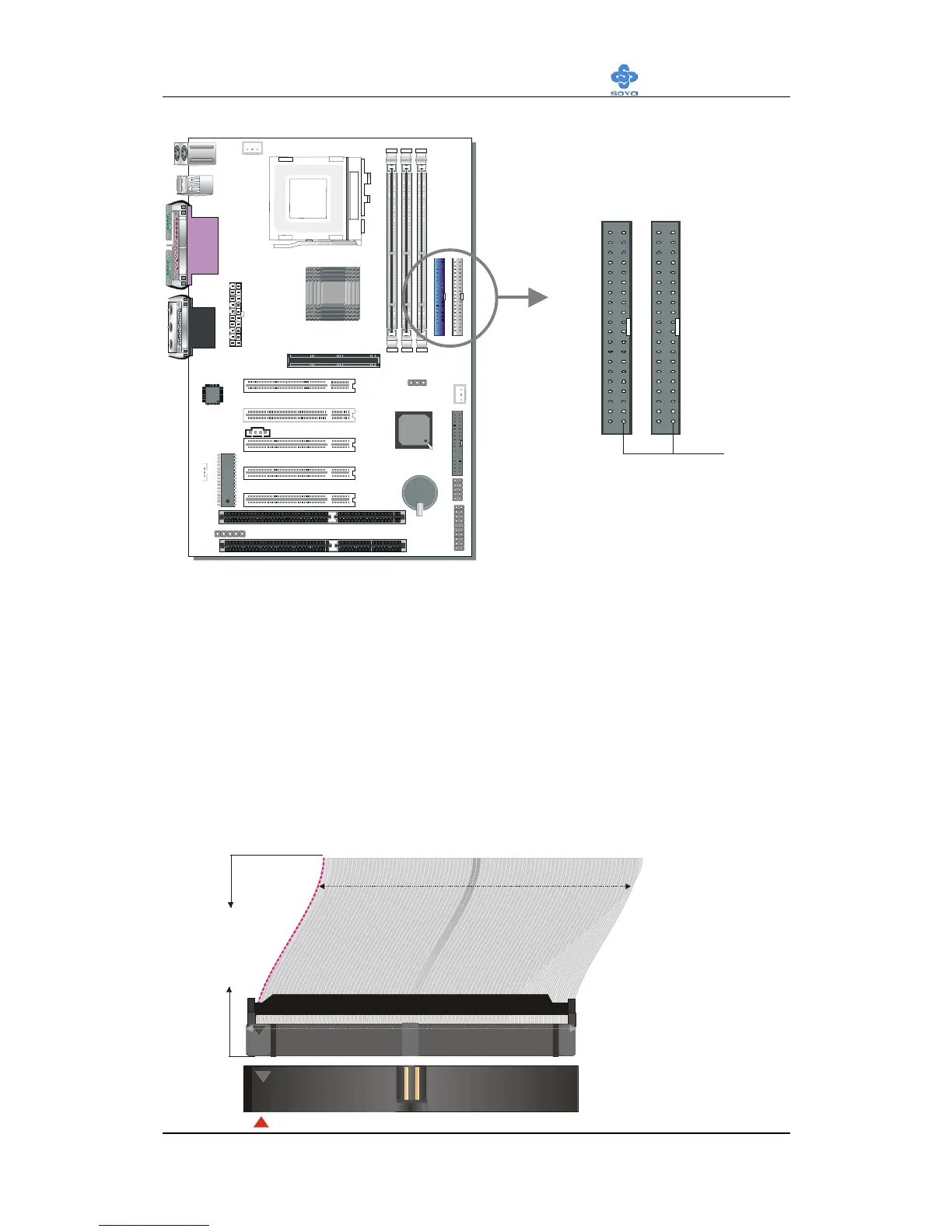

Connect one side of the ATA66/100 flat cable to the IDE device (HDD or
CD-ROM) and plug the other end to the primary (IDE1) or secondary
(IDE2) directionally keyed IDE connector on the Motherboard. The
ATA66/100 cable is backward compatible with ATA33 HDDs.
This Motherboard can support up to four HDDs.
