Hardware Installation
SY-7VBA133U
30
2. Reset
Plug the Reset push-button cable into the 2-pin Reset header on the
Motherboard. Pushing the Reset button on the front panel will cause the
system to restart the boot-up sequence.
3. Speaker
Attach the 4-pin PC speaker cable from the case to the Speaker header on
the Motherboard.
4. ACPI LED
Connecting the 2-pin ACPI LED cable to the corresponding ACPI LED
header will cause the LED to light whenever the system is in ACPI mode.
The manufacturer has permanently set this Motherboard in ACPI mode
due to most hardware and software compliance to ACPI mode.

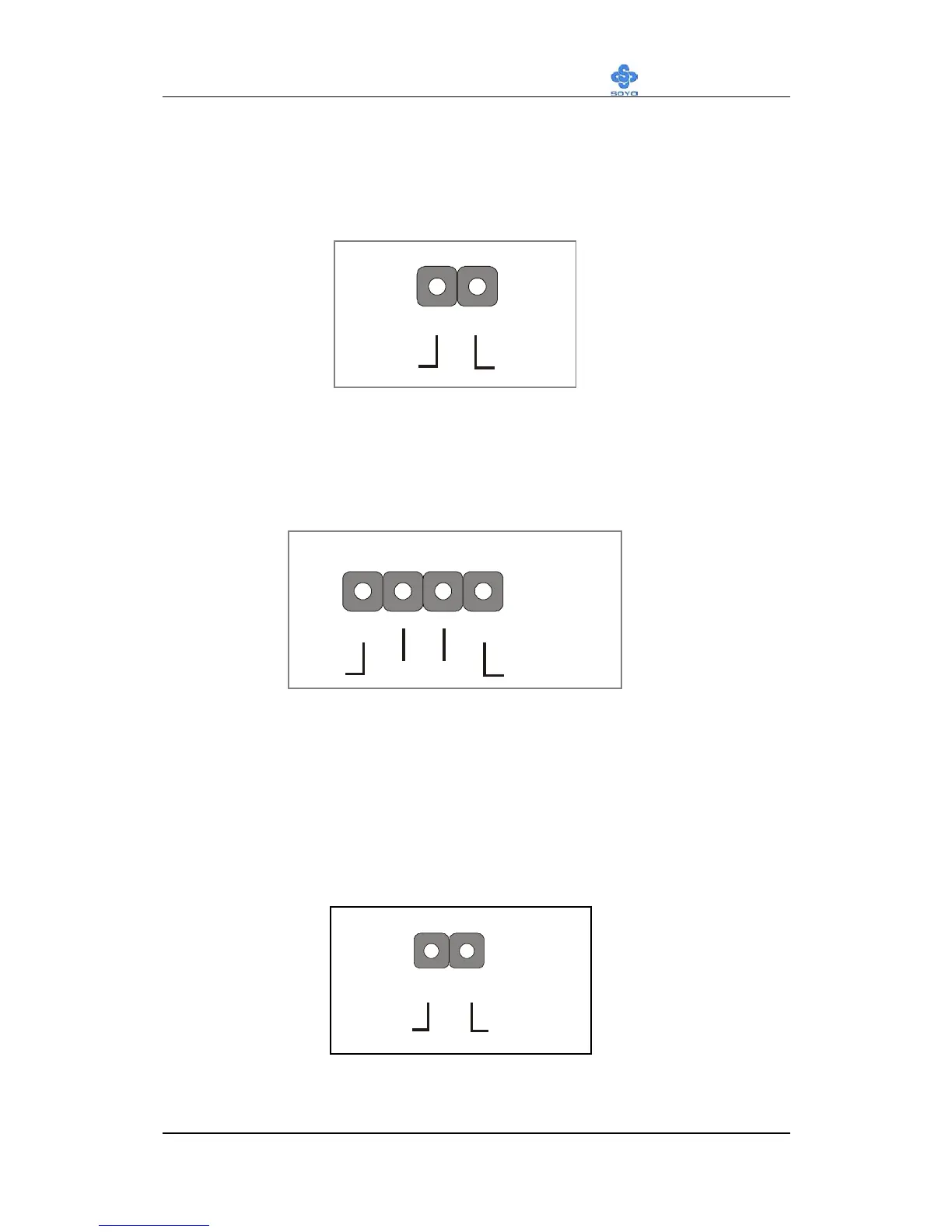

Reset Pin Assignment
Power Good GND
1
Speaker Pin Assignment
+
_
+5V
Speaker out
NC NC
ACPI LED Pin Assignment
+
_
LED Anode
LED Cathode
