Hardware Installation
SY-7VBA133U
34
5. Universal Serial Bus USB1/USB2/(USB3, USB4)
This Motherboard provides four USB ports for your additional devices.
Plug the USB device jack into the available USB connector USB1 or
USB2.
- Standard device drivers come with the Win98 for commonly used
USB devices.
- With Win95, use the flow UHCI specifications. To use USB devices
under Win95, usually you have to install the device that driver comes
with the USB device you have purchased.

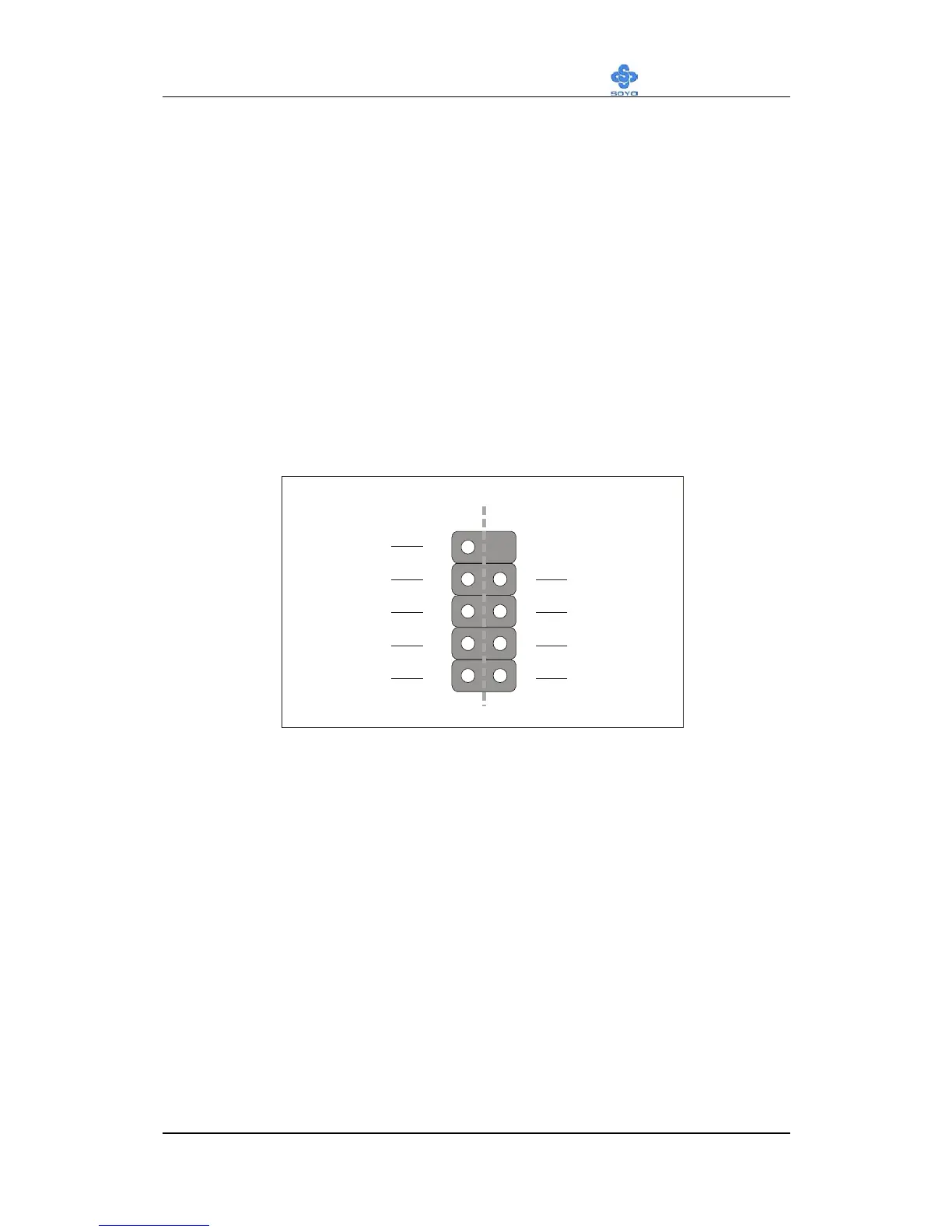

USB3 and 4 are available. To make use of these USB ports, purchase a
USB cable from your dealer. The lay-out of USB3 and 4 is as follows:
1
6
5
10
2
7
3
8
4
9
GND
(+)Data
(-)Data
Power
GND
GND
(+)Data
(-)Data
Power
USB4 USB3
