Section6 Operating Procedures
4. Assemble three design caps to the bottom of the dispensing door spout.
.
Step 3
Install the freezer door. Insert the hand screws into the slots in the freezer door. With
both hands, hold the sides of the beater assembly. Finger-tighten the hand screws
equally drive shafts. Finger-tighten the hand screws equally to insure that the door is
snug. Don’t over-tighten.

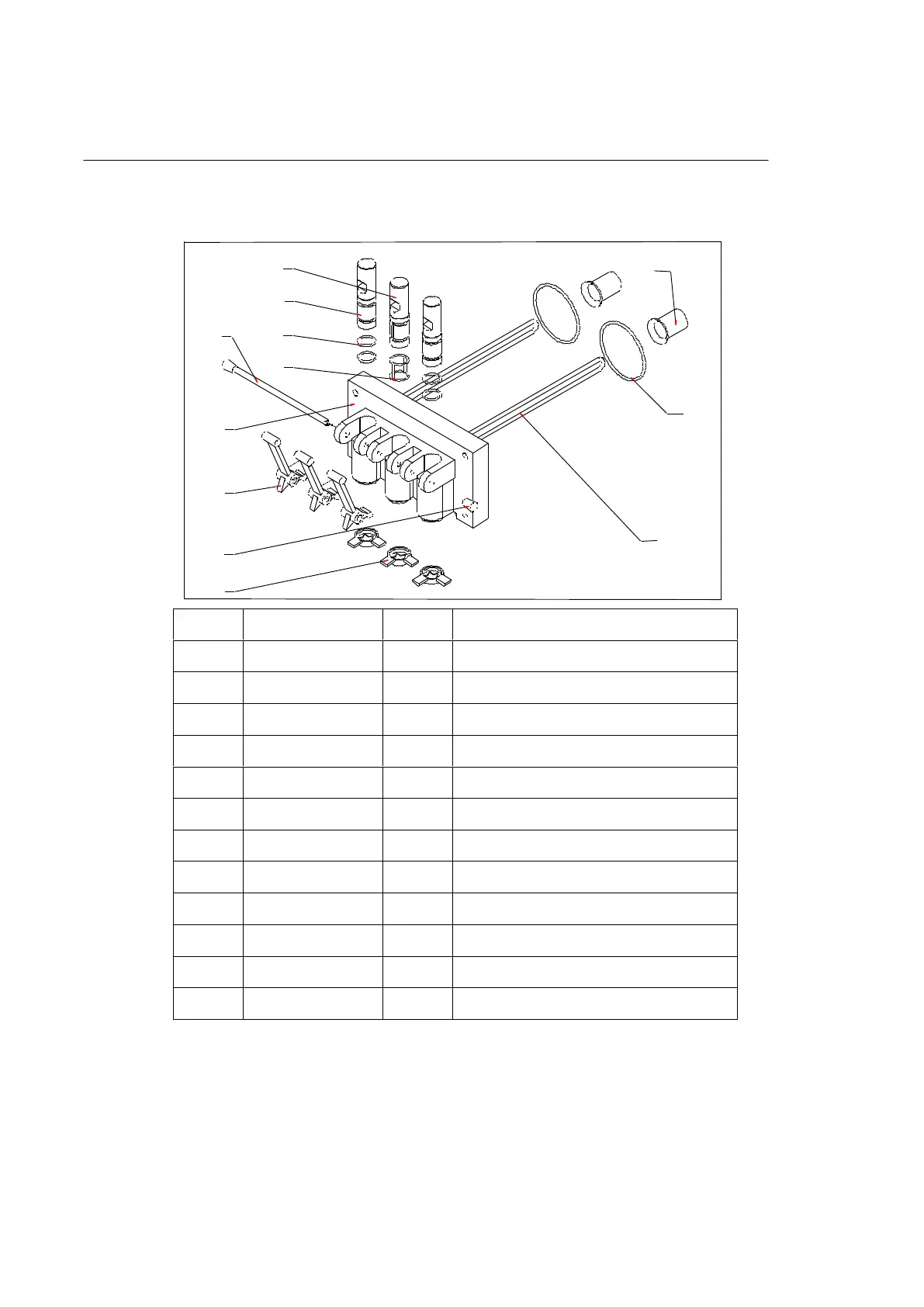

ITEM
Part Number
QTY.
Description
1
225206007
1
Middle Dispensing Valve
2
225206004
2
Side Dispensing Valve
3
225206006
4
O-ring
4
225206002
1
O-O ring
5
225206005
1
Dispensing Handle Retention
6
225206001
1
Dispensing door
7
225206008
3
Dispensing Handle
8
225206009
2
Screw cap
9
225206003
3
Design Cap
10
225206031
2
Beat Pole
11
225020601
2
Seal of Dispensing Door
12
225206032
2
Bearing Front
3
4
1
2
5
6
7
8
9
1 0
1 1
1 2
