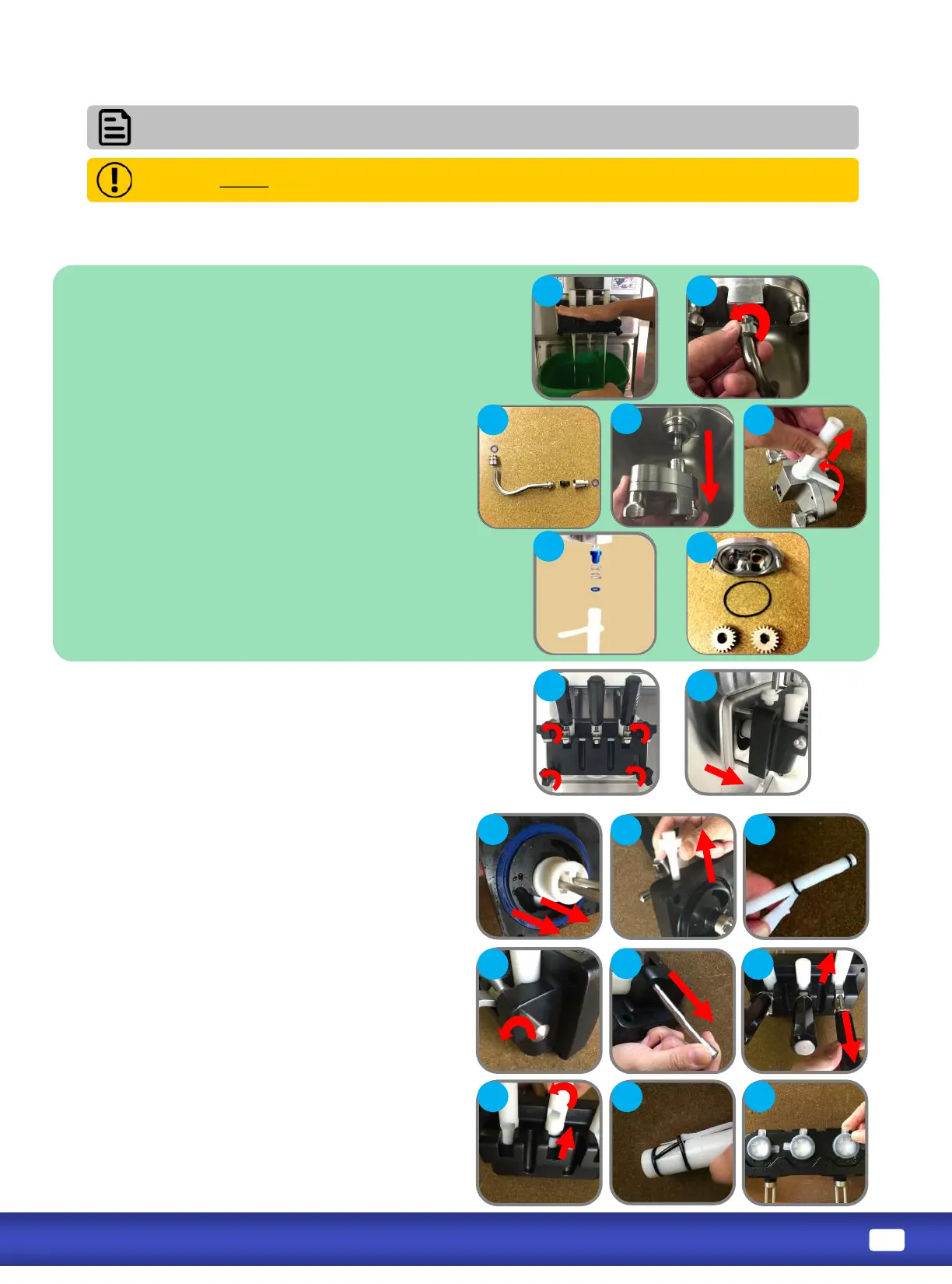

a. Remove front bearing from door assembly;
remove gaskets from door assembly using O-ring
removal tool.
b. Remove prime plug from door assembly; remove
O-rings from prime plugs using O-ring removal
tool.
c. Unscrew and remove retenon nut; remove
retenon pin.
d. Remove draw handles, pushing down rst to pop
up draw valves, then pulling out.
e. Remove draw valves, twisng while removing to
prevent damage.
f. Remove O-rings and H-ring from draw valves using
O-ring removal tool.
g. Rotate design caps so that tabs are accessible;
snap o design caps.
Prepare dishwashing area prior to disassembly, use bucket to temporarily store large
removed parts and a small container for O-rings, and have a towel nearby to capture excess water.
Always separate O-rings and gaskets from metal parts to prevent damage while washing.
a. Remove dispensing-door hand-screws.
b. Remove dispensing door assembly from cylinders.
a. OPEN draw handles to verify zero pressure in
cylinders.
b. Twist air tube connectors to unlock and
disconnect air tube.
c. Take air tube apart completely; each air tube
has O-rings, connectors, and check valve.
d. Push in and rotate air pumps 1/4 turn
clockwise; pull to remove.
e. Rotate sucon tubes to unlock and remove
sucon tubes, springs, and stoppers out of air
pumps; watch that springs don’t y out.
f. Take sucon tubes apart completely; each
sucon tube has O-ring, spring, and stopper.
g. Unscrew bolts on air pump housing; separate
air pump cover from shell. Remove gears and
O-rings from shells.
