Spartan 1065 - Page 23

Page 23
Item No Part No Req'd Description
1 04206100 1 Handle Assy (Includes Items 35, 36)
2 02882400 2 V-Belt - 1/2 hp 82" 4L 820
3 44289200 2 Spacer, Nylon 1" OD
5 02751600 1 Set Collar Assy (Includes Set Screws)
6 02847700 1 Retaining Ring
7 04204400 1 Screw Assy (Includes Item 6)
8 03414700 1 Upper Front Casting Assy (Includes Items 7, 9, 10, 11)
9 02826500 2 Screw, Hx Hd 3/8-16 x 1-1/4
10 00167200 2 Lockwasher, 3/8 Internal Tooth
11 02821100 2 Nut, Hex 3/8-24
12 44118500 1 Frame Assy (Includes Items 8, 13, 14,15, 16, 17, 30, 37, 43)
Model 1065

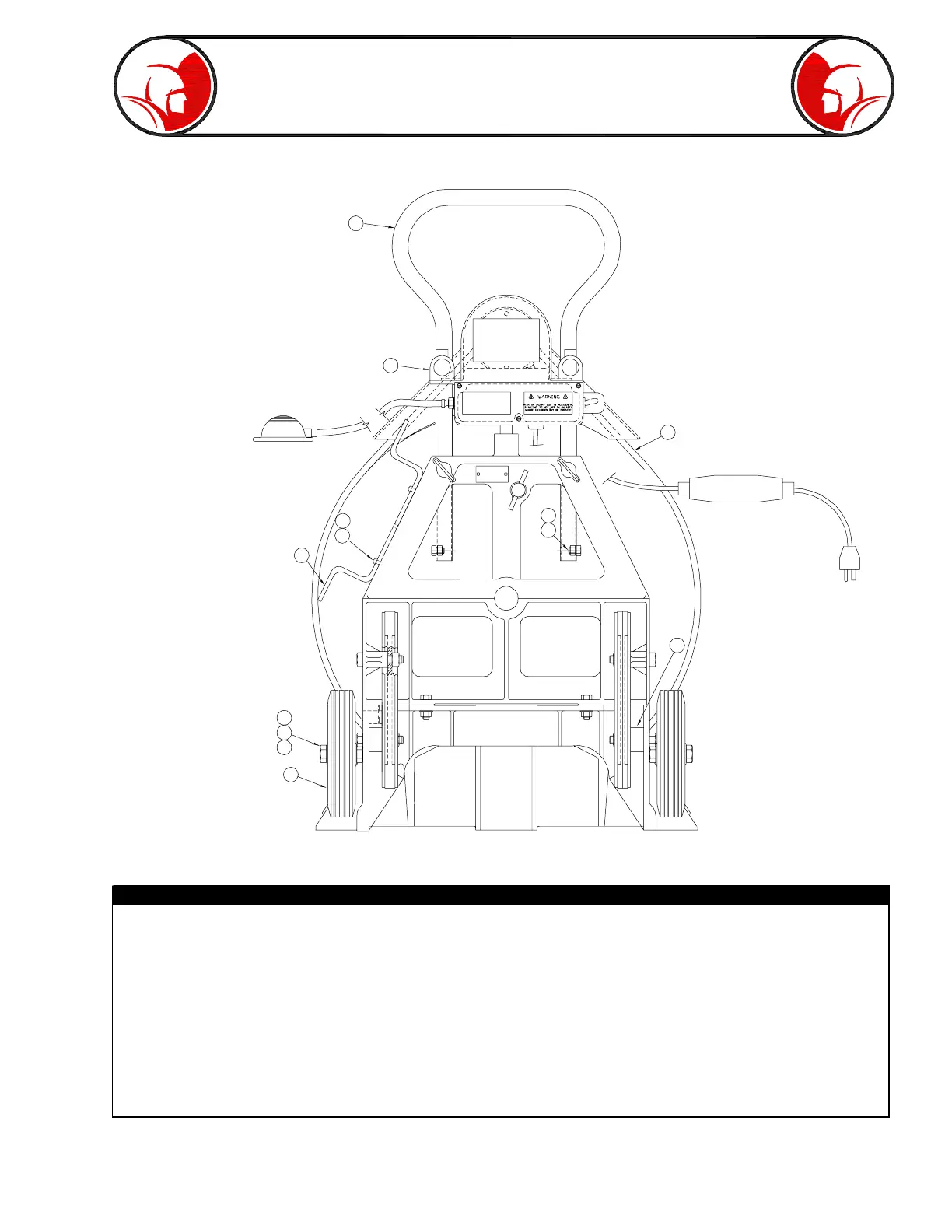

Final Assembly 44115804
1
WARNI NG
MO TO R S HOU L D AL WA YS
BEFORE REVERSING.
COME TO A COM PLETE ST OP
2
15
14
16
17
36
35
34
57
58
59
CAUTION
60
3
