Spearhead Multicut 300 - Cutting Height Adjustment Variables

8999151EN: v1 11/03/2021
50
Original instructions (ENGLISH)
Website: www.spearheadmachinery.com
Please note that not all settings can be achieved on Multicut 300 machines as shown in Table 4.3. This is
due to the combination of the required working angle of the machine and wheel arm positioning causing the
blades to bottom out on the ground. Never use these settings as it may result in personal injury and permanent
damage to the machine and/or tractor.

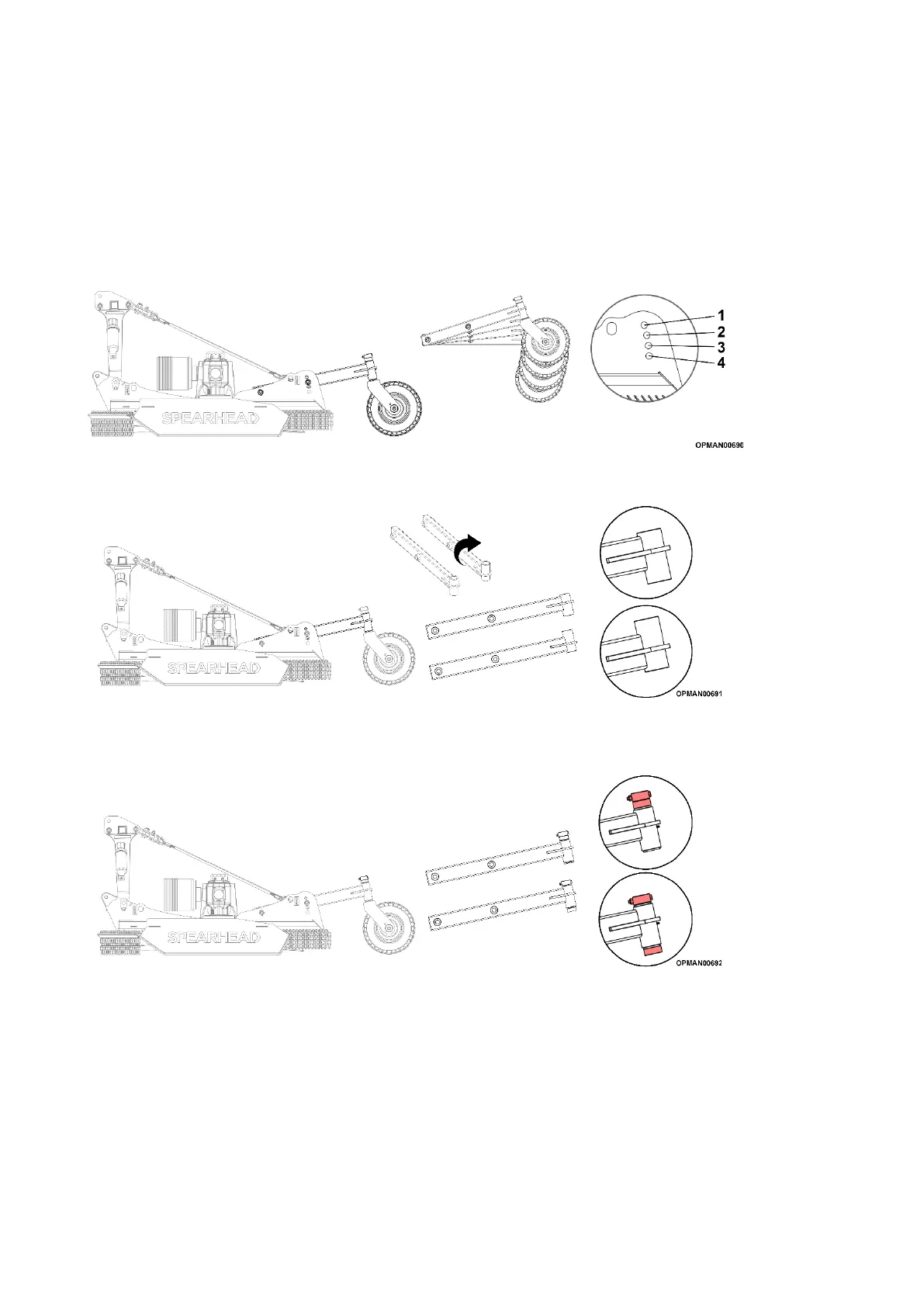

To gain the correct cutting height required select the right settings of the three following variables:
1. Wheel Arm Pin Hole Positioning
Figure 4.12
2. Wheel Arm Orientation
POSITION
A
POSITION
B
Figure 4.13
3. Wheel Yoke Spacer Positions
SETUP A
SETUP B
Figure 4.14
