5.5 Wheels, Hubs & Tyres
Equipment Required
• Torque wrench (see required settings in Torque Settings section)
• 2 x 19mm hex sockets/spanner (for standard tyre version)
• 10mm allen head socket/key (for standard tyre version)
• 17mm hex sockets/spanner (for laminated wheel version)
• Needle nose pliers (for laminated wheel version)
• Nylon hammer
Before installing/removing any wheels and tyres make certain that the machine is jacked up high enough for
them to be easily fitted and to ensure that the machine is securely supported with fixed supports so it cannot
move.
Standard Forklift Truck Tyre

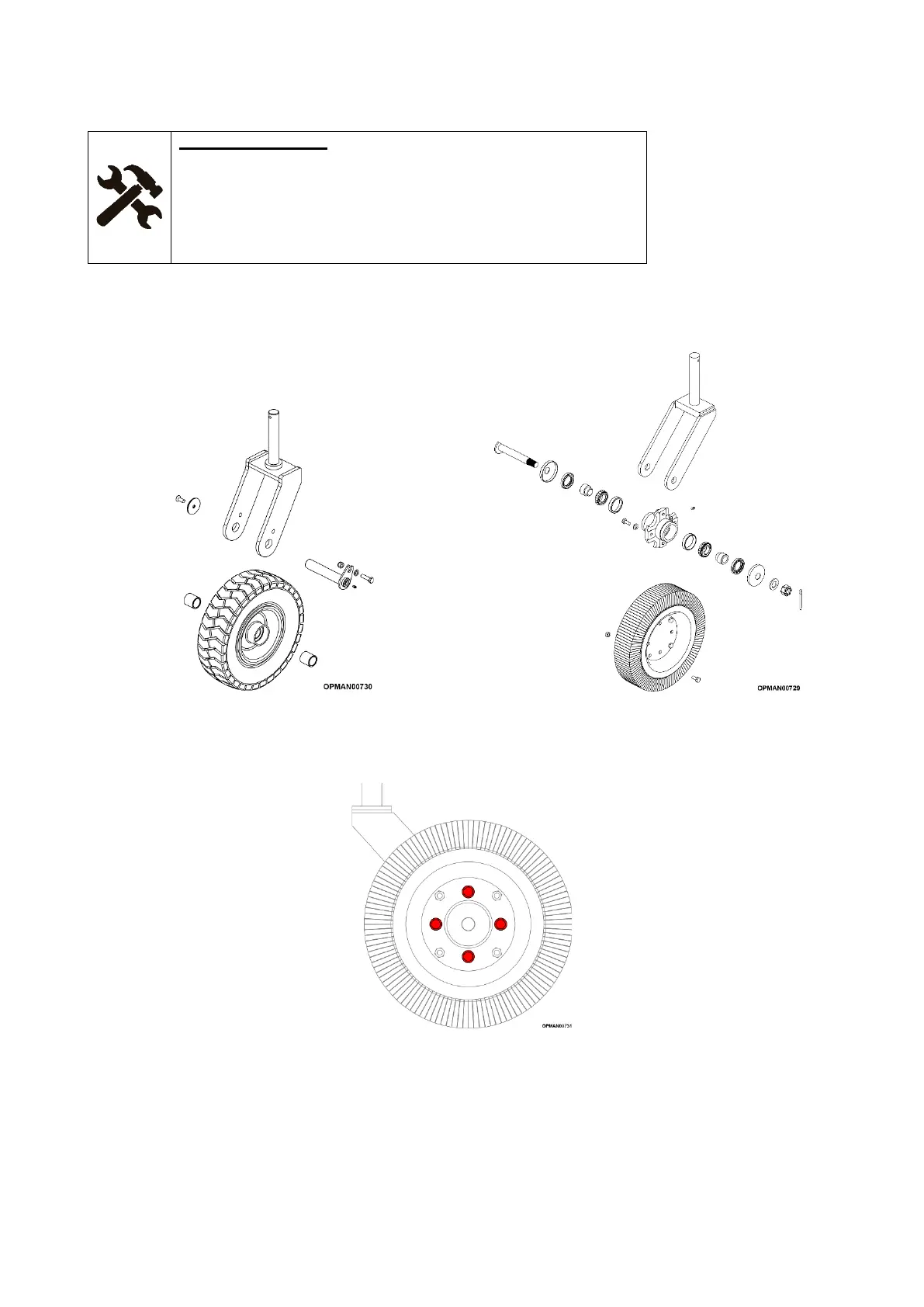

Figure 5.33 – Multicut Wheel & Fork Assembly
Figure 5.34 – Multicut Laminated Wheel Nuts To Loosen
The Multicut 300 laminated wheel option features a “split” wheel design to fit the two wheel rim halves to the
laminated outer rolling surface.
It is important when required to remove the wheel rim from the hub that the wheel/hub fasteners are
loosened; rather than the split rim fasteners so the wheel rim. See Figure 5.34 for guidance for the correct
nuts to loosen.
The Multicut 300 standard forklift truck type tyre feature a single piece rim, so does not need this level of caution.
