Input Shaft (1)

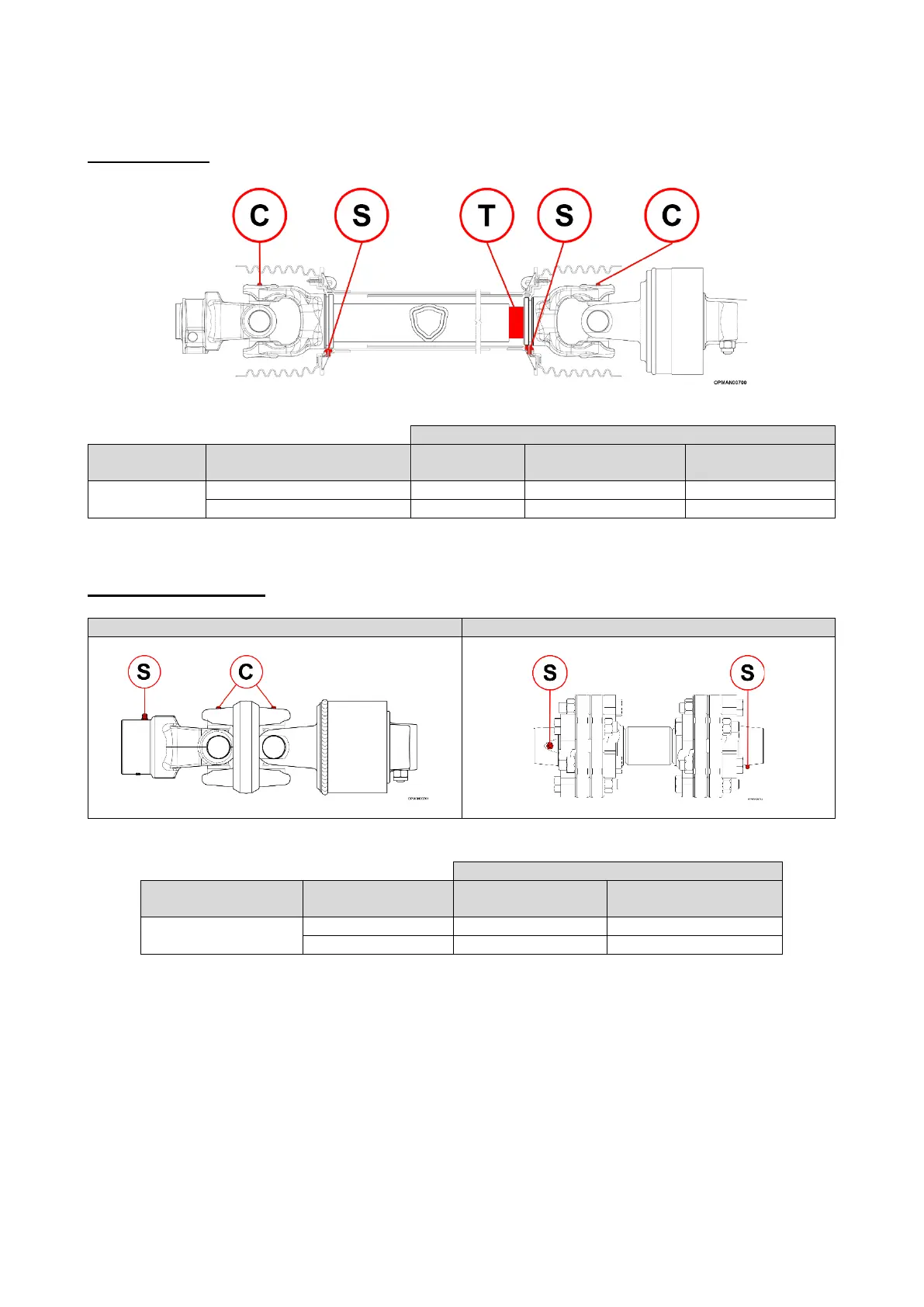

Figure 5.5 – Multicut Input Shaft Grease Locations
Quantity of Pumps
Model
PTO Input Speed (Shaft
Size)
(C) - Cross
(S) – Shield
Bearings
(T) – Telescopic
Members
Multicut 300
540 (G7)
18
6
20
1000 (G7)
18
6
20
Table 5.5 – Multicut Input Shaft Grease Quantities
Connecting Shaft (2)
Standard
Optional Heavy Duty
Figure 5.6 – Multicut Connecting Shaft Grease Locations – Standard & Optional
Quantity of Pumps
Model
Connecting Shaft
(C) - Cross
(S) – Shield Bearings
& Splines
Multicut 300
Standard
13
6
Optional
N/A
6
Table 5.6 – Multicut Centre Coupling Grease Quantities
