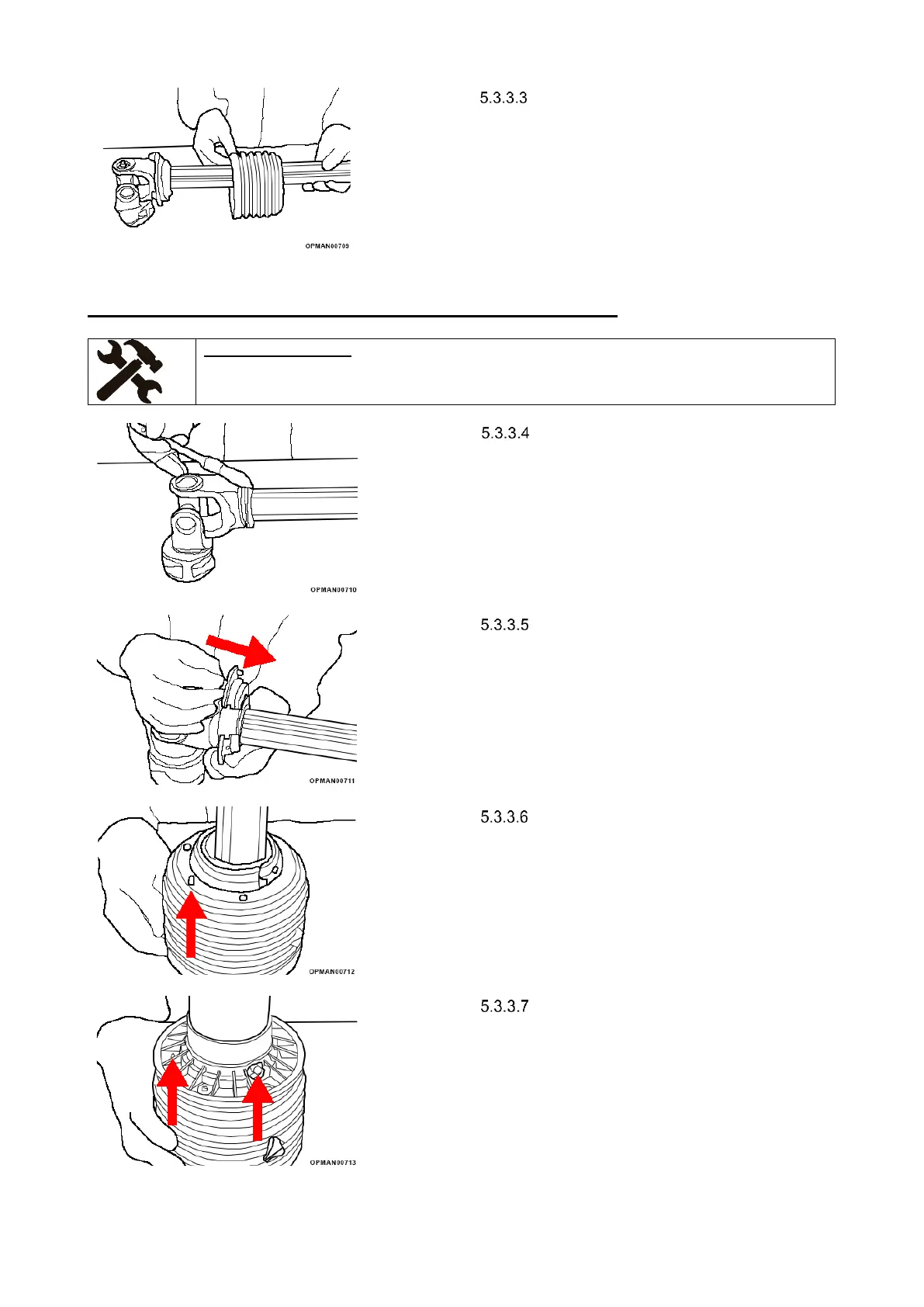

Figure 5.11
Remove the outer cone and bearing ring
Input PTO shaft - Bearing Ring Replacement – REASSEMBLY
Equipment Required
• Phillips head screwdriver
• NLGI #2 Molybdenum Disulphide grease with paint brush/distributor
Figure 5.12
Grease the bearing groove on inner
yokes
Figure 5.13
Fit the bearing ring into the groove with
the reference pin facing the drive tube
Figure 5.14
Fit the outer cone, inserting the reference
pin of the bearing in the hole provided in
the cone
Figure 5.15
Fit the base cone with the tube, inserting
the reference pin and the grease fitting of
the bearing in the holes provided in the
cone
