The Lens System
Slit Size Iris Diameter
7 x 20 mm 30 – 40 mm
∅ 7
20 – 30 mm
∅ 3
10 – 20 mm
∅ 1
2.5 – 10 mm
Table 3: Recommended Iris Values for Spatially Resolved Measurements

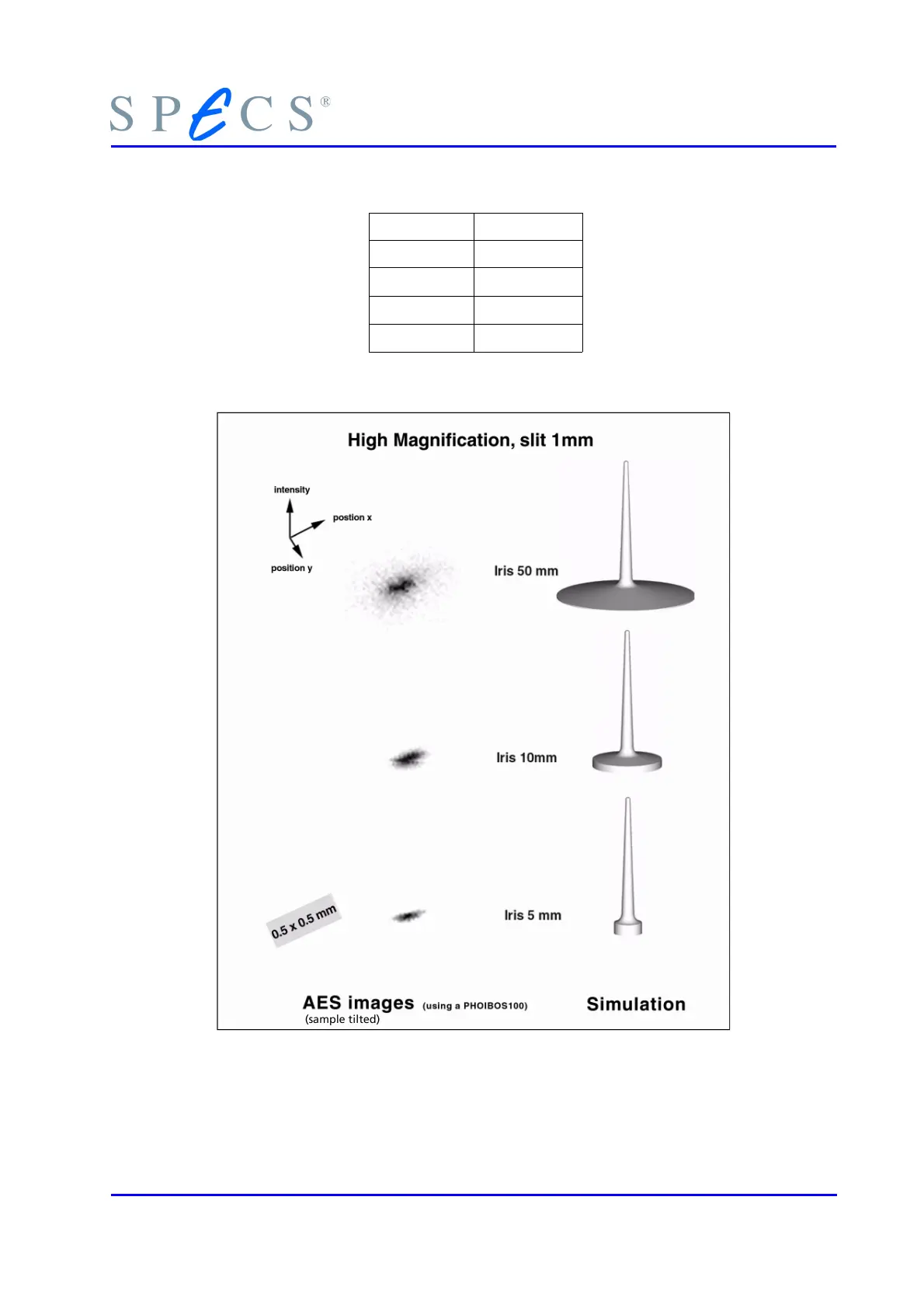

Figure 9: Typical Intensity-Position Profile with Iris Aperture
The low tail intensity forms a disc. Its integrated intensity can achieve the same order of
magnitude as the intensity in the peak. Using the iris aperture these intensities can be
PHOIBOS 17
