Spectra Precision Focus 30 User Manual

3 Getting Started
18 Spectra Precision FOCUS 30 User Guide

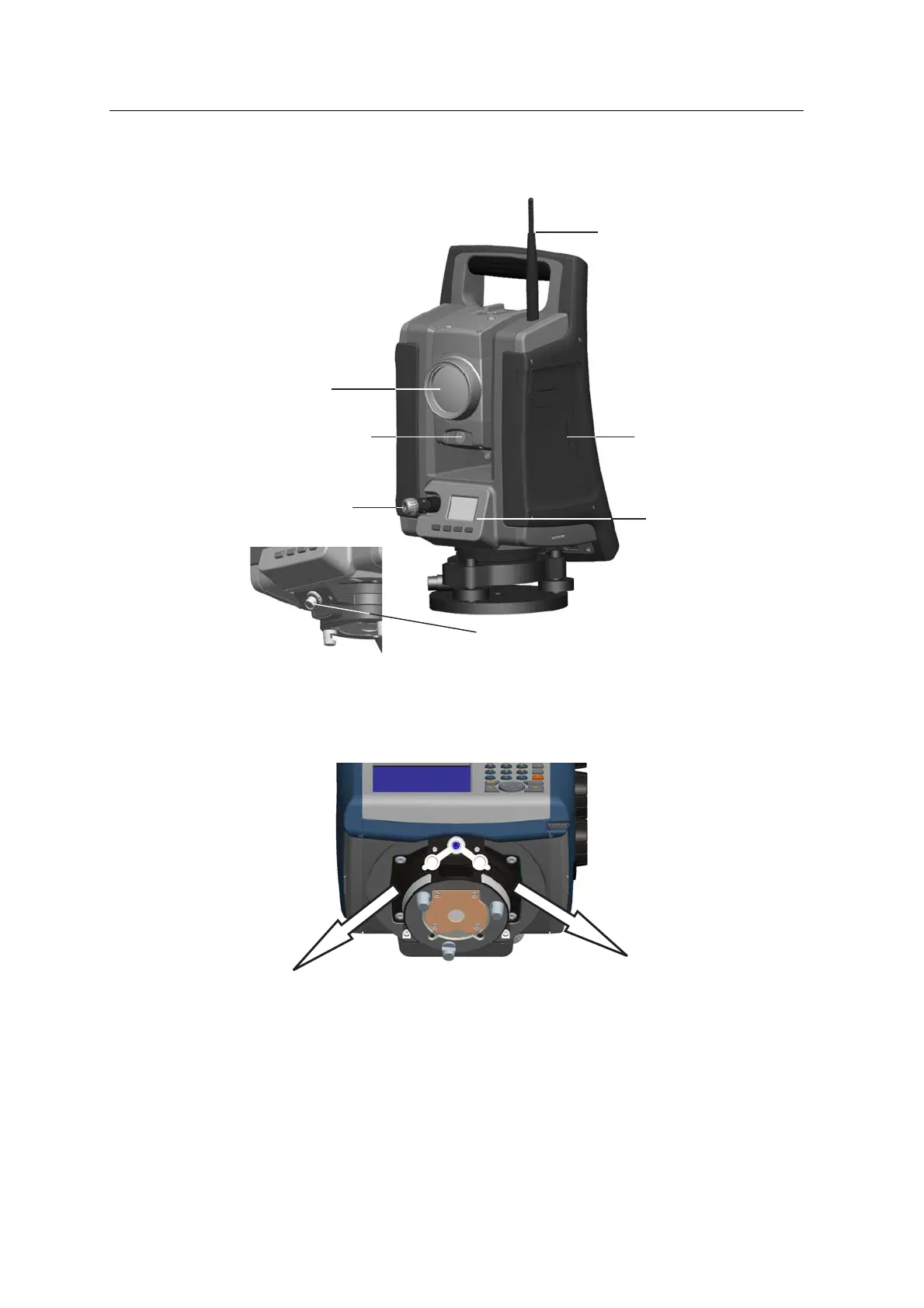

Fig. 3-5 Front view of the Spectra Precision FOCUS 30 Total Station
Radio antenna
Compartment for
instrument battery
Face2
Control Unit
Connector for both communication (COM)
and power (12V)
Optics for
tracklight
Optical plummet
Coaxial optics for
angle and distance
measurements,
tracker and
laser pointer
Fig. 3-6 Connector Rubber Cap Placement
Note – Please place the rubber cap in one of the shown directions. Another
orientation will limit the function to insert instrument into tribrach or to turn the
instrument.
