3 Getting Started
Optical Plummet
The instrument is equipped with an optical plummet, which has 2x magnification and
a focusing range of 0.5 m to infinity. The instrument can be positioned to an accuracy
of 0.5 mm at 1.5 m over a ground mark.

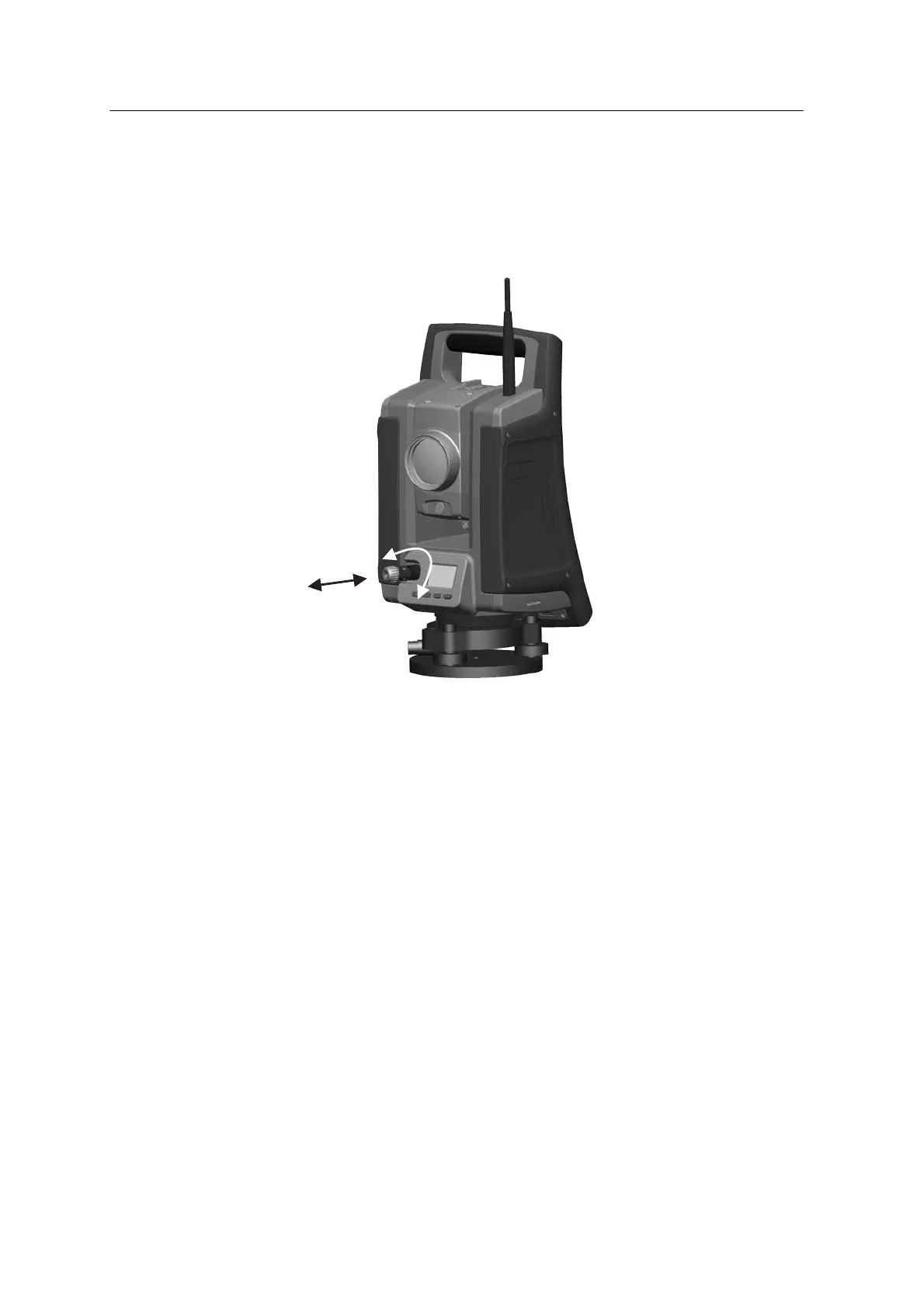

Fig. 3-7 Optical plummet
As shown in figure....
• To focus the crosshair, rotate the eye-piece.
• To focus the optical plummet to the groun
d, push in or pull out the optical
plummet.
For information on how to adjust
the optical plummet, see Optical Plummet,
page 61.
Trigger Key
The trigger key functions as an On/Off key (z). A LED in the trigger key indi-
cates if the instrument is turned on. A solid
light indicates On and a flashing light
