3 Getting Started
Instrument Description
This section describes the instrument controls. Spectra Precision recommends that
you take some time to familiarize yourself with the names and the locations of the
controls, see Figure 3-4 and Figure 3-5.

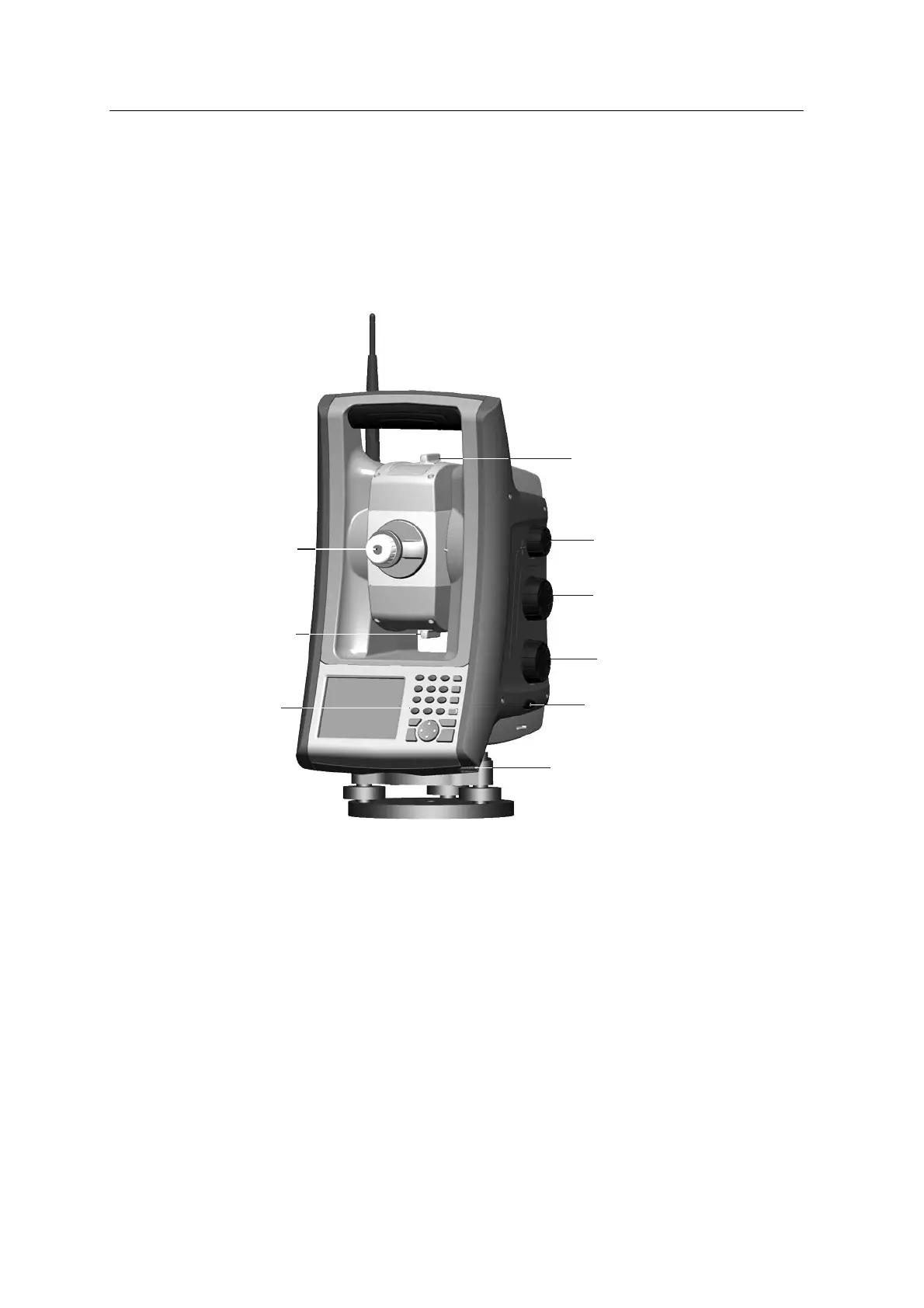

Fig. 3-4 Operator’s view of the Spectra Precision FOCUS 30 Total Station
Coarse sight
Focusing
servo knob
Vertical motion
servo knob
On/Off and Trigger key
Stylus for touch screen
Face1
Control Unit
Coarse sight
Eyepiece
Horizontal motion
servo knob
