Cable Receptacle Cleaning:
Inspect the cable receptacle in both the XRV Generator and X-ray tube for any dirt or foreign debris.
Wrap a lint free cloth around a “foam” glass cleaning brush and insert gently into the cable receptacle.
The foam brush should have 1/8” clearance on the inner circumference of the cable receptacle. While
holding the cloth, rotate the foam brush several times and remove from the receptacle. Inspect the
receptacle for debris. Repeat if necessary.

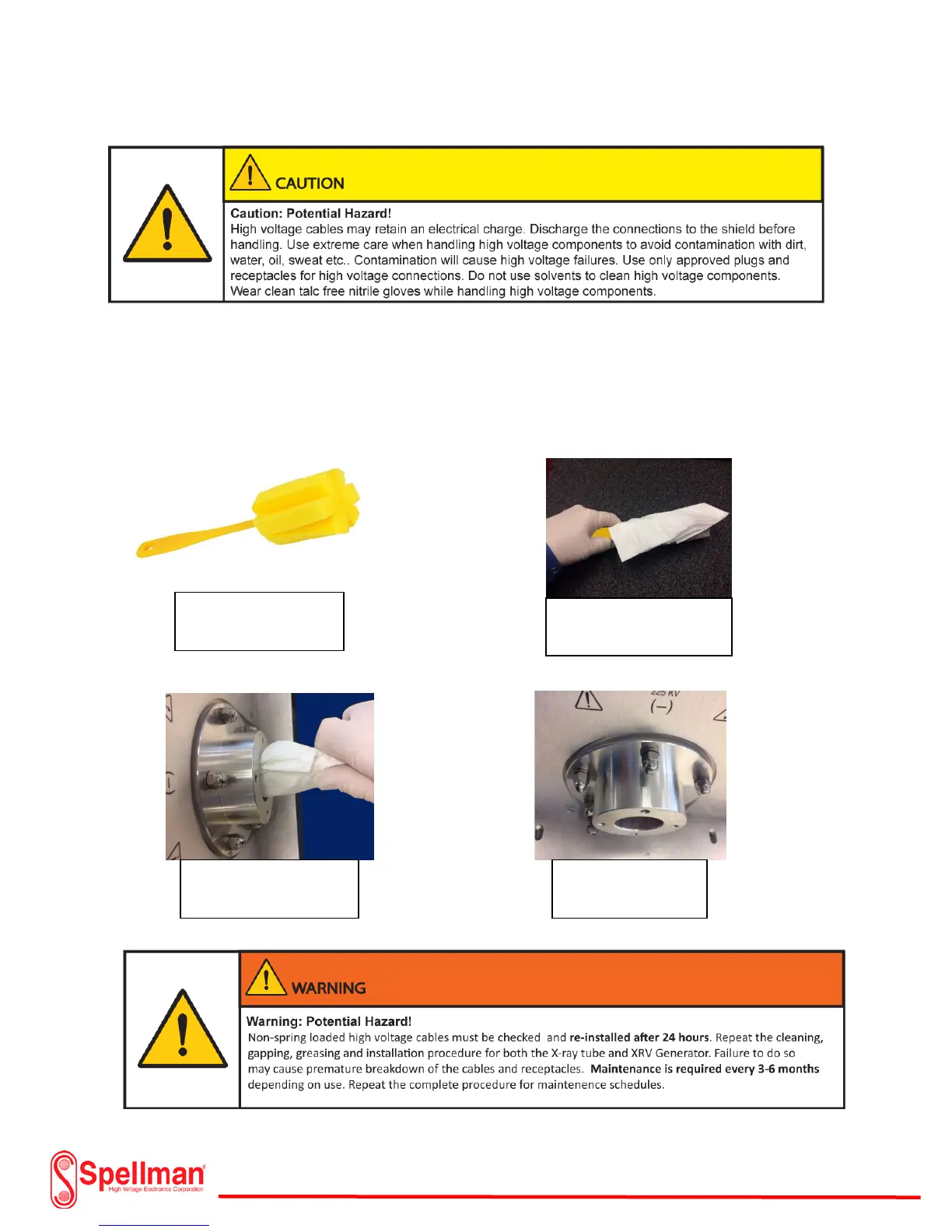

Obtain a foam
glass cleaning brush
Wrap a lint free clean
cloth around foam brush
Insert into HV
receptacle and rotate
Remove and
discard cloth
