Spellman XRV Sub-system - Power Connections (I;O System Interface Box); Door Interlock Connection

Page 73 of 98
118157-001 Rev C

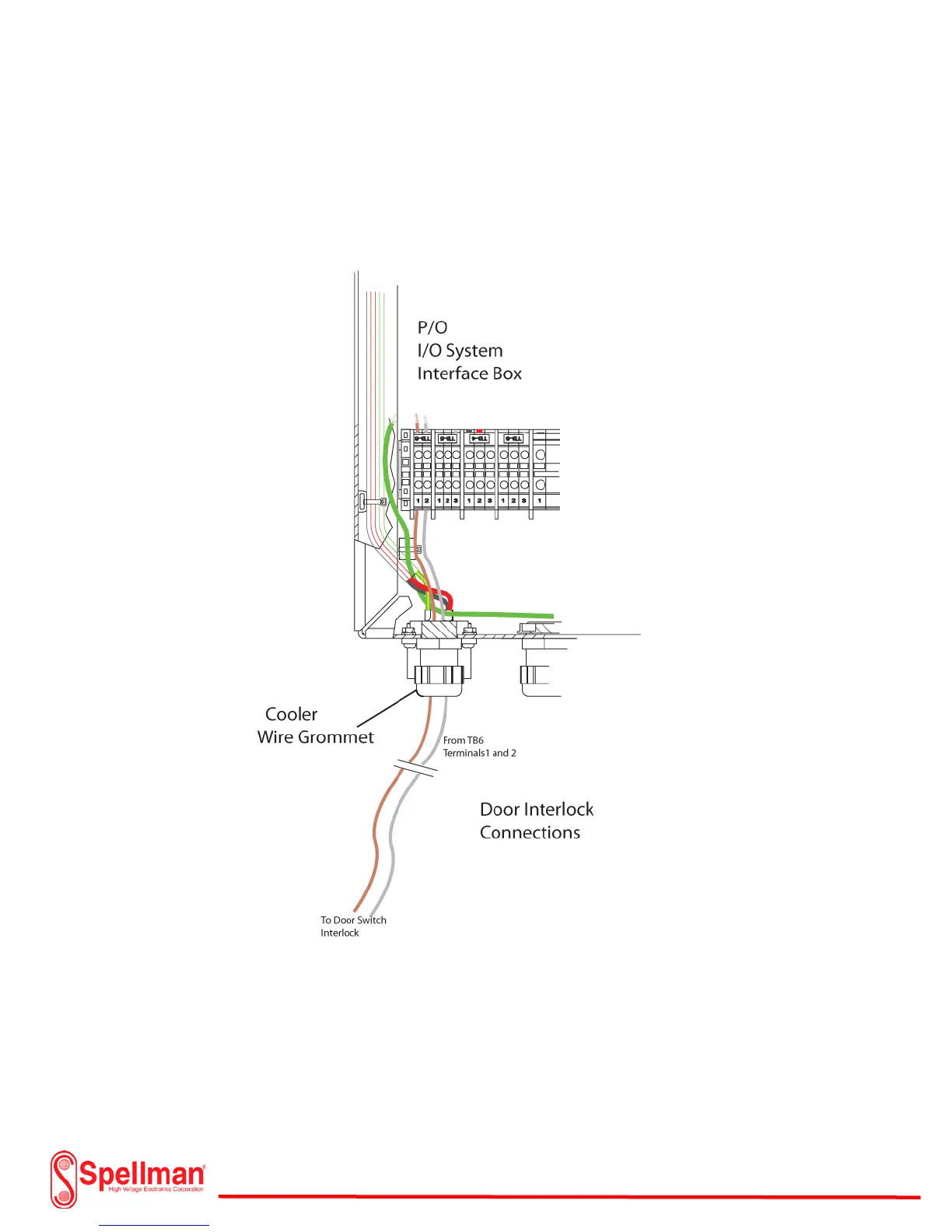

Power Connections (I/O System Interface Box):
The I/O Box also includes an additional door interlock that may be used to interrupt power to the XRV
Generator in the event of unauthorized access to the X-ray chamber or other restricted areas. The
interlock connection is located on TB6 terminals 1 and 2. Use #16 AWG copper wire for the connections.
