Power Connections (I/O System Interface Box):
If a Door Power Interlock is used, remove the bridge jumper on TB7 terminals 1 and 2 and terminals 3
and 4. The Power Interlock is designed for use with C.D.R.H. requirements that are mounted to an x-ray
cabinet and door to provide the required disconnection of the input voltage independent of any moving
parts other than the door.

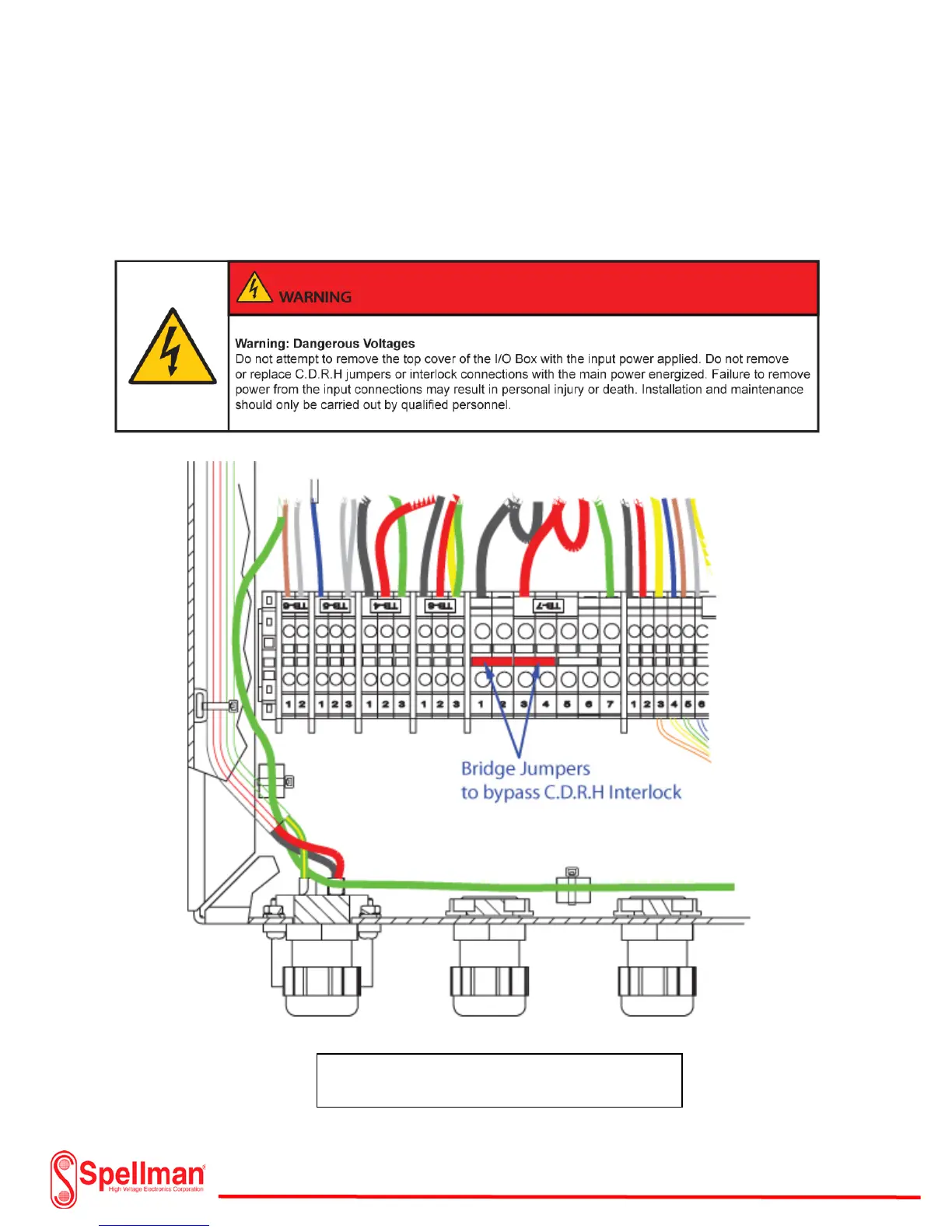

C.D.R.H. Bridge Jumper Location TB-7
