Page 10 of 35 Document No: 9961 Revision: F Issue Date: Jan-29-2018
This document and all copies are the property of Spider
®
. All dimensions and data are indicative only.
The user must ensure that the equipment complies with local rules and regulations.
Wire rope requires lubrication under normal conditions. Lightly lubricate it with a wire rope lubricant

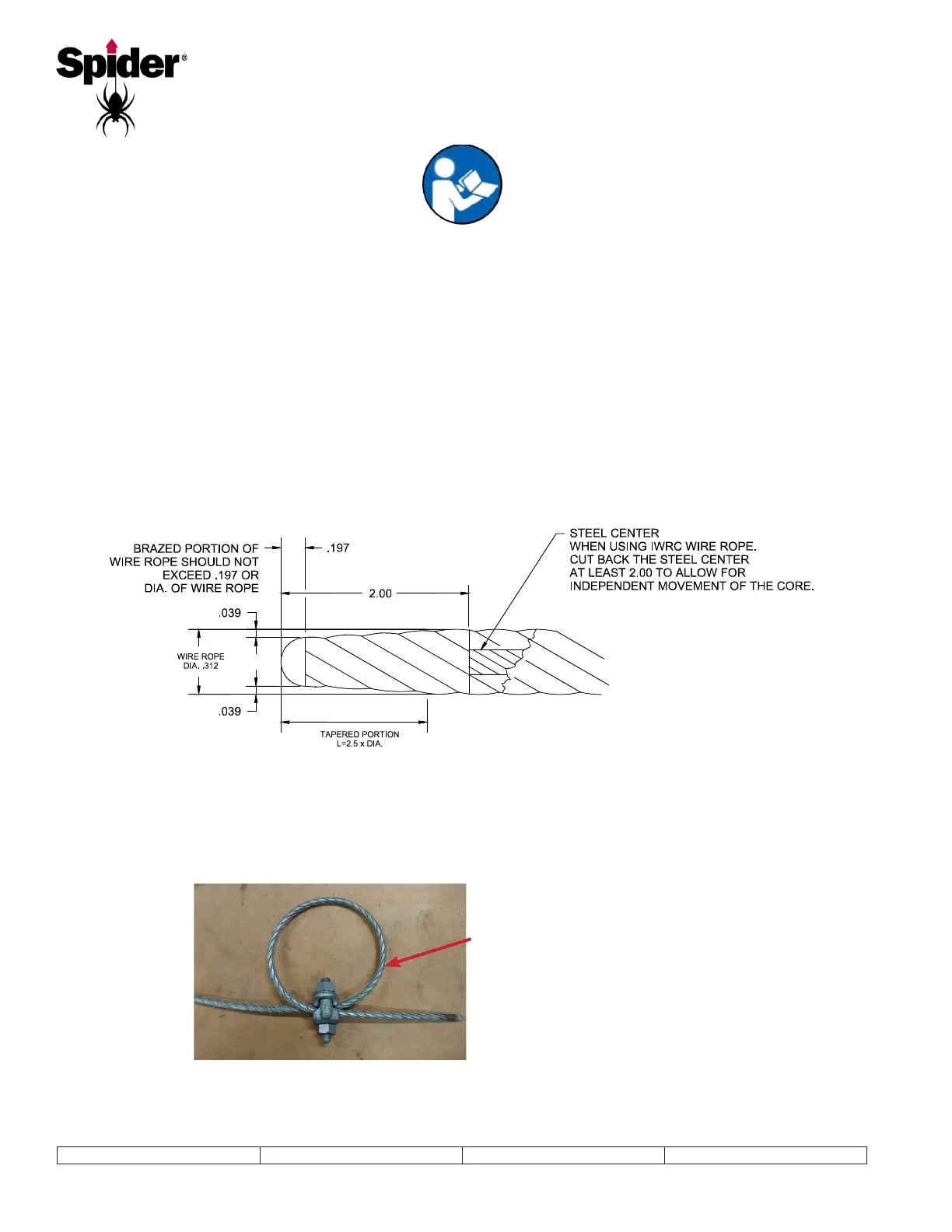

1. To prepare the end of IWRC wire rope for insertion, cut back the steel center at least 2” (51 mm) to
allow for independent movement of the core. Braze and rough shape the end of the wire rope to form a
smooth, tapered, bullet shape no more than 1/4” (6.4 mm) long. Do NOT cool the end of the hot wire
cools to prevent rusting.
ALL DIMENSIONS ARE IN INCHES
2. Use a heavy-duty thimble for the primary suspension wire rope and follow the manufacturer’s
requirements for termination of the wire rope hardware that you are using.
3. In situations where it is not possible to lower the platform to the ground, secure the tail line with a
rigging in such a situation, consult a safety professional.
Tail line with suspension loop
1. Wire rope stretches when loaded, which reduces the diameter. Wire rope begins to wear the moment it is
