SPIDER SC1000 - B) Testing the Overspeed Brake Test Button; C) Resetting the Overspeed Brake Test Button

Document No: 9961 FIssue Date: Jan-29-2018 Page 23 of 35
This document and all copies are the property of Spider
®
. All dimensions and data are indicative only.
The user must ensure that the equipment complies with local rules and regulations.
= Inspect
= Verify
= Perform process
 

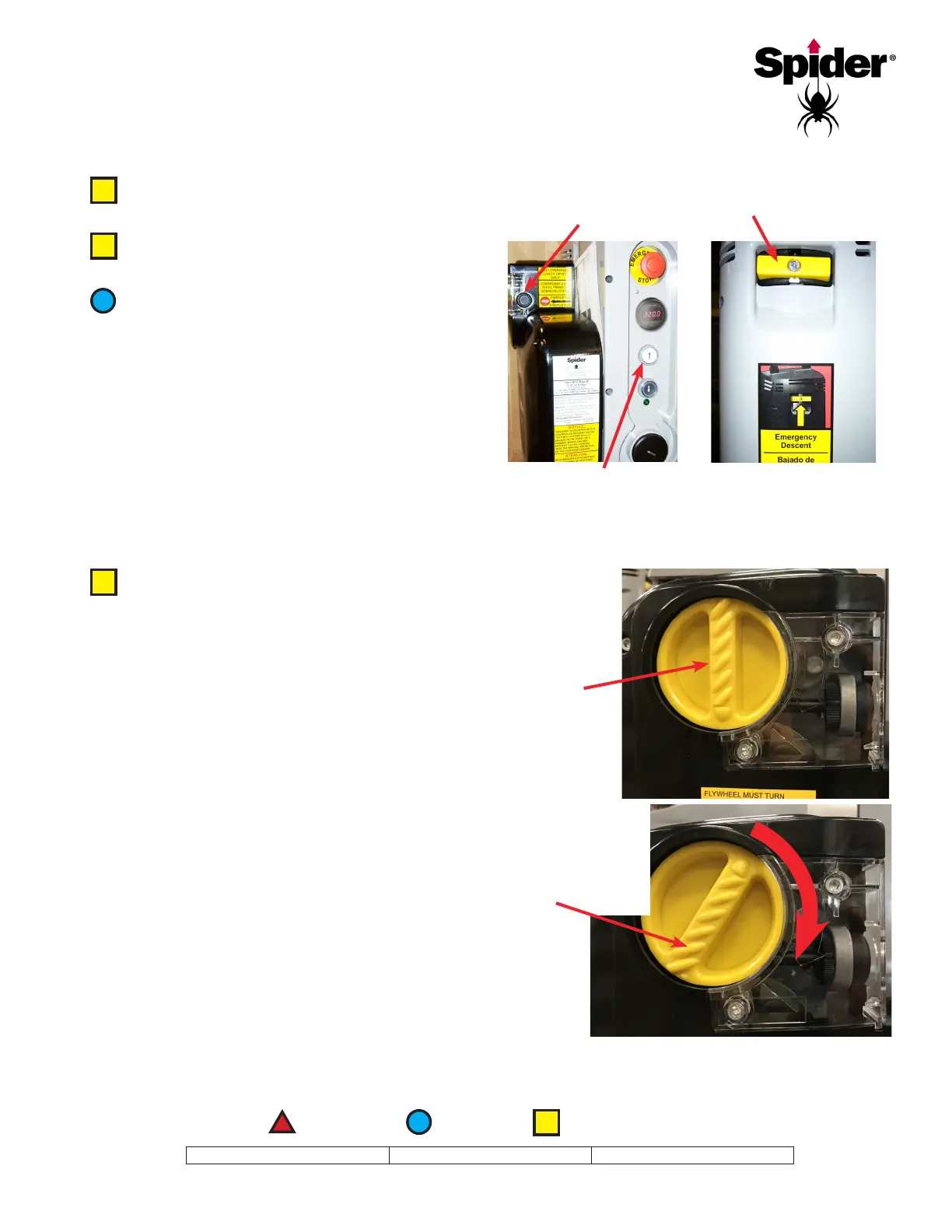

Push in the UP Operation Button and raise the
platform approximately 3 feet (1 meter).
Lift the Control Descent Lever. As the hoist
begins to descend, push the Overspeed Test Button.
The hoist MUST stop IMMEDIATELY!
Controlled
Descent Lever
Overspeed Brake
Test Button
UP Operation
Button
 
Power the hoist UP a few inches while at
the same time turning the Overspeed Brake Reset
Knob clockwise until it clicks into position with the
‘braided’ bar vertical. The Overspeed Brake Test
Button releases and the DOWN Operation Button
is not longer lit up red.
Overspeed
Brake Reset
Knob
in normal
operating
position.
Overspeed Brake
Reset Knob
in tripped position.
Turn clockwise to
reset.
