31

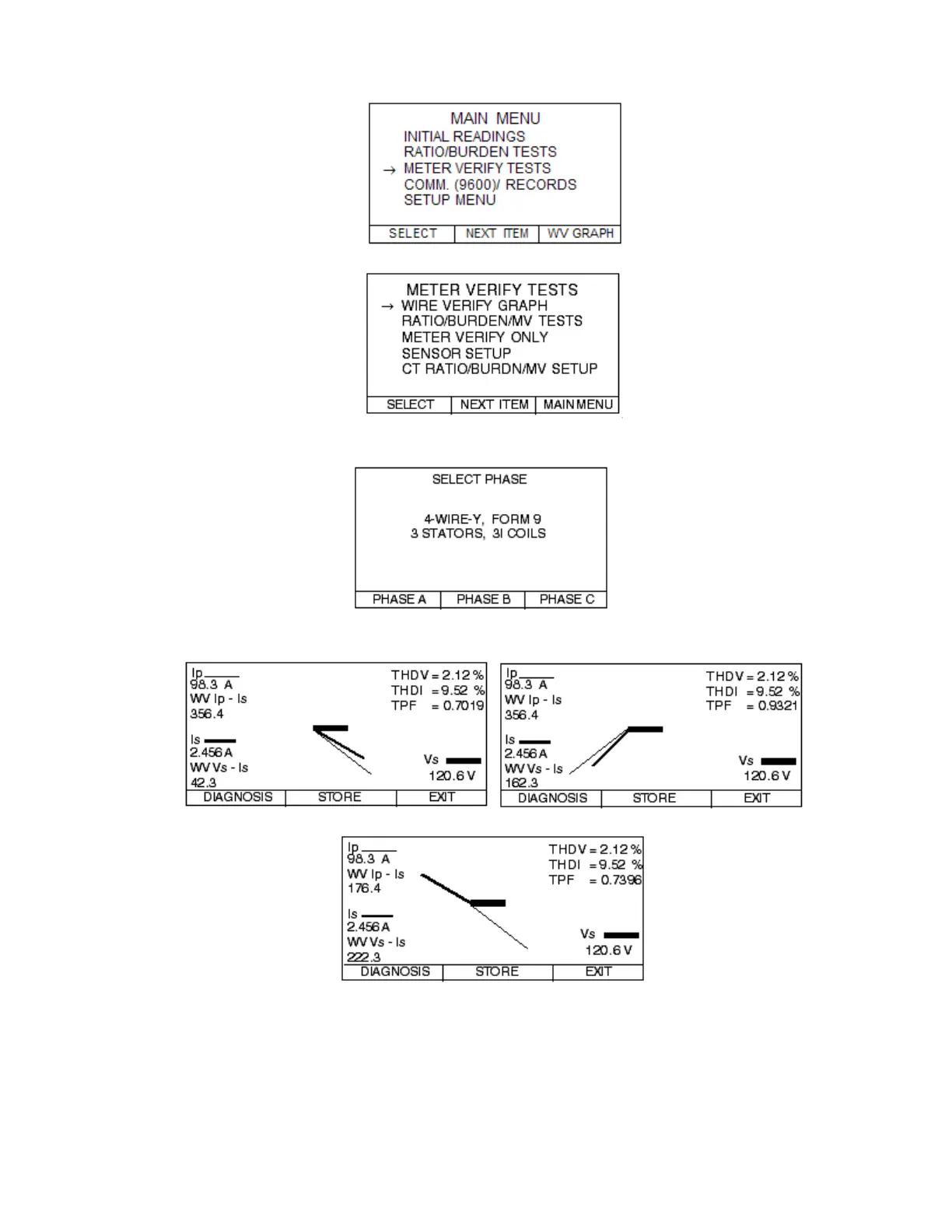

Step 5.1—SELECT METER VERIFY TESTS.
Step 5.2—SELECT the WIRE VERIFY GRAPH.
Step 5.3—Select the PHASE you are testing. Disregard the PLS OR REV
information.
Steps 5.4 & 6.1—Review the wire verify graph for appropriate readings & press EXIT.
Proper Wiring Bad Hook Up or Cross Wired Circuit
Leads Reversed or Duckbill Backwards
