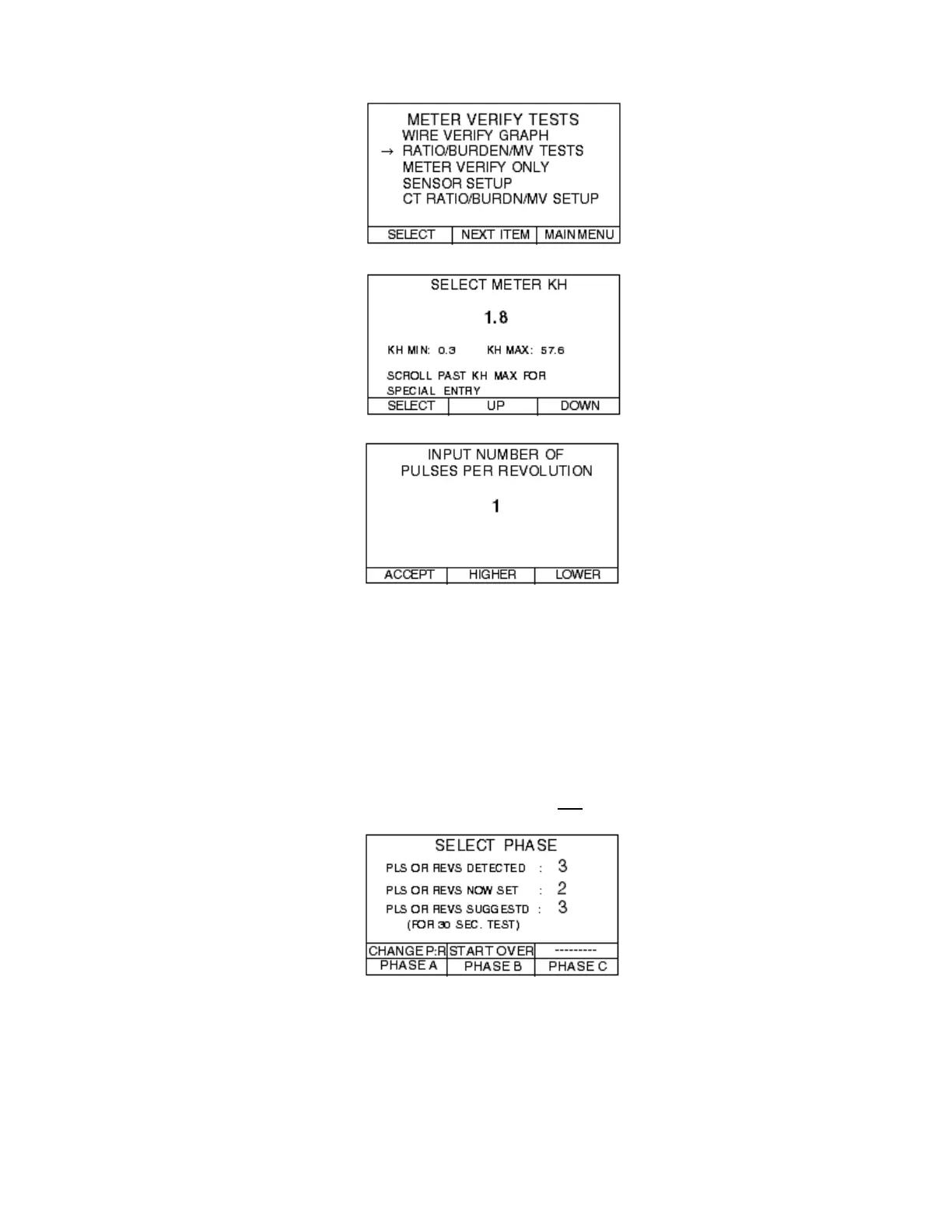

Step 6.2—SELECT RATIO/ BURDEN/MV TESTS.
Step 6.3—Select the appropriate Kh value.
Step 6.4—Select the NUMBER OF PULSES PER REVOLUTION.
Steps 6.5 to Steps 6.8
o Make sure the meter sensor is detecting pulses or revolutions (all 3 phases in
the circuit).
o Short the CT’s that you are not testing (e.g. short B & C if testing A).
o Hold down the second button for 3 seconds to select START OVER.
o Wait for 2 pulses to be detected to determine if the PLS OR REVS
SUGGESTED is the same as PLS OR REVS NOW SET.
o If the same, select PHASE A (or B or C) by pushing momentarily (less than 2
seconds) & you will be taken to Step 7.0.
o If the PLS OR REVS SUGGESTED is not the same as PLS OR REVS
NOW SET, hold down the first button for 3 seconds to select CHANGE P;R.
