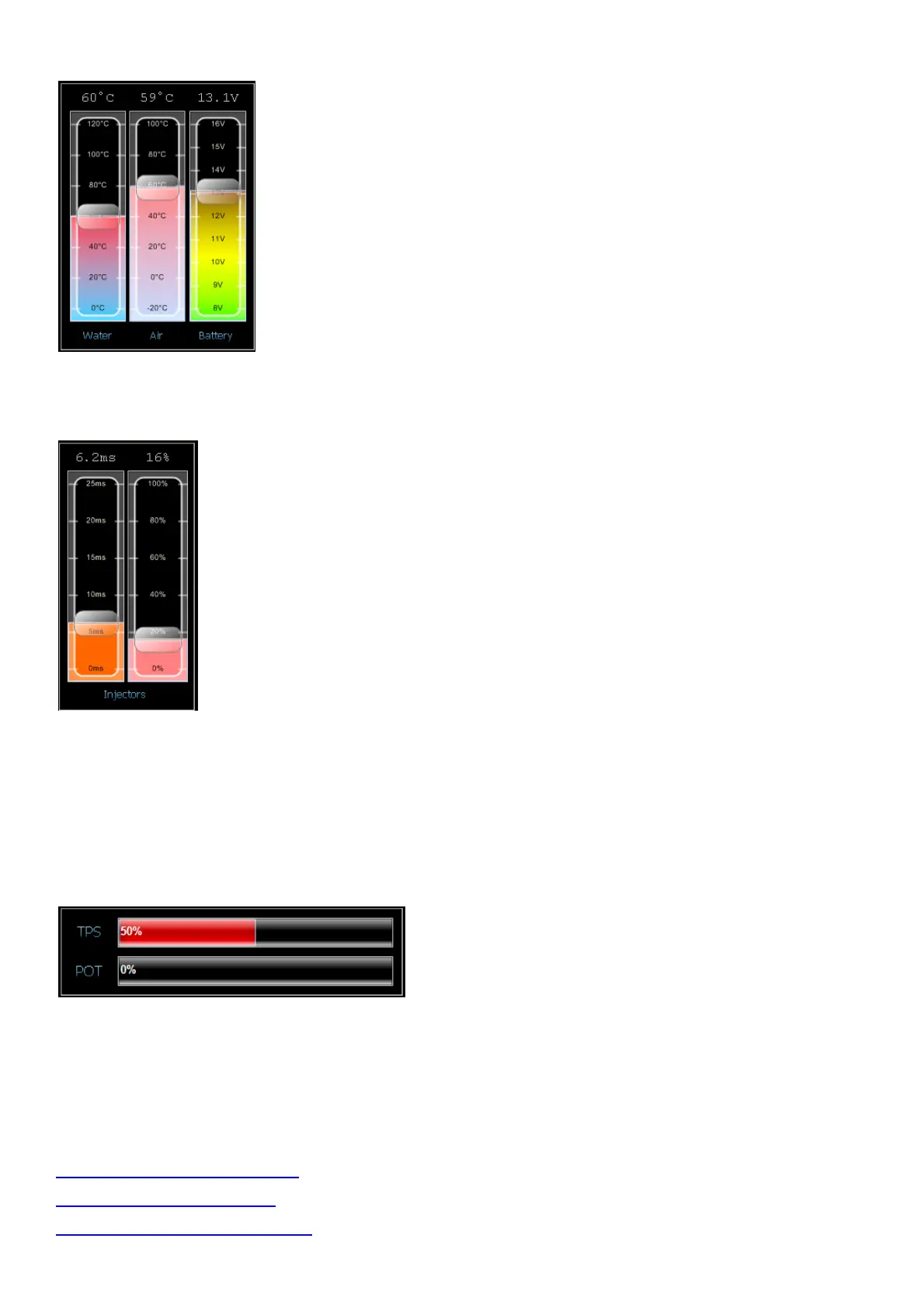

6.7.6.5 Water Air & Battery Indicator Bar
These 3 bars will indicate water and air temperatures and also the battery voltage as it is supplied
to the ECU.
6.7.6.6 Injector Time and % Indicator Bar
This ms bar indicates the time in milliseconds that the injectors are opened. For a 4-stroke engine
this is measured over 2 revolutions and for a 2-stroke engine it is measured over 1 revolution.
The % bar indicates how long the injector is open in relation to the time of 1 revolution. If it
indicates 100% it means the injector is open for the whole revolution and that is the maximum fuel
that can go into the engine. A supplier recommendation is not more than 85%. This will indicate
that the injectors are too small.
6.7.6.7 TPS & POT Indicator Bar
The TPS% bar indicates the throttle position at that stage. If it is calibrated, it will indicate from 0 to
100 % between closed and open throttle.
The POT% bar indicates the optional input signal voltage. No calibration here.
6.8 Maps (F3)
6.8.1 Timing Maps (Alt 1)
6.8.2 Fuel Maps (Alt 2)
6.8.3 Lambda Maps (Alt 3)
