Introduction Waukesha Cherry-Burrell
Page 10 95-03009 10/2010
Stand
• The stand (pedestal) is made of epoxy-coated cast iron.
• The stand attaches under the motor adapter or bearing housing.
Base (Optional)
• The epoxy-coated channel base is used in style "C" arrangements.
See “Table of Base Size Used On Modular Base Mounted Centrifugal
Pumps” on page 20.

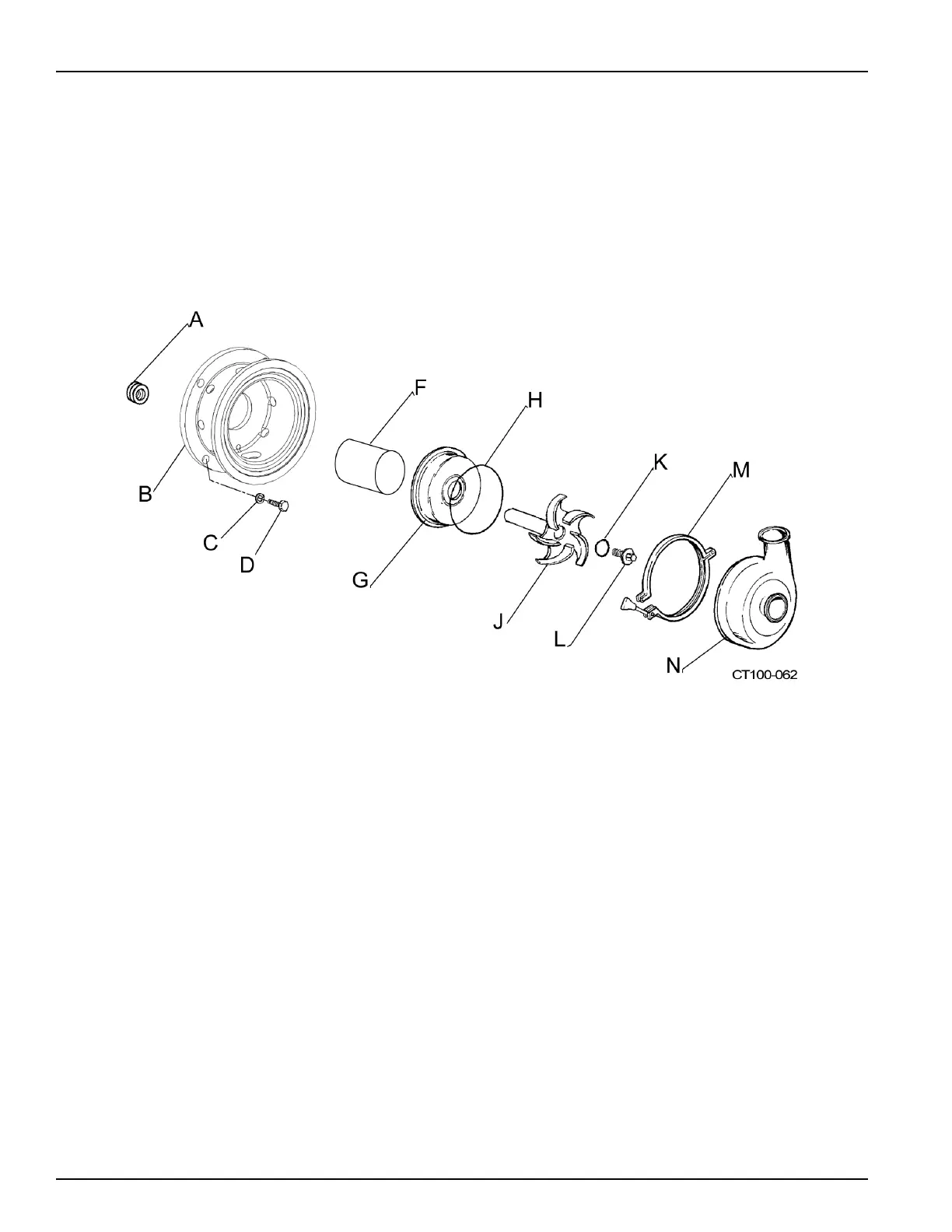

Figure 2 - Common Part Identification
A. Motor Shims H. O-ring
B. Motor Adapter J. Impeller
C. Lock Washer K. O-ring
D. Cap Screws L. Impeller Retainer
F. Seals (detail not shown) M. Clamp
G. Backplate N. Casing
