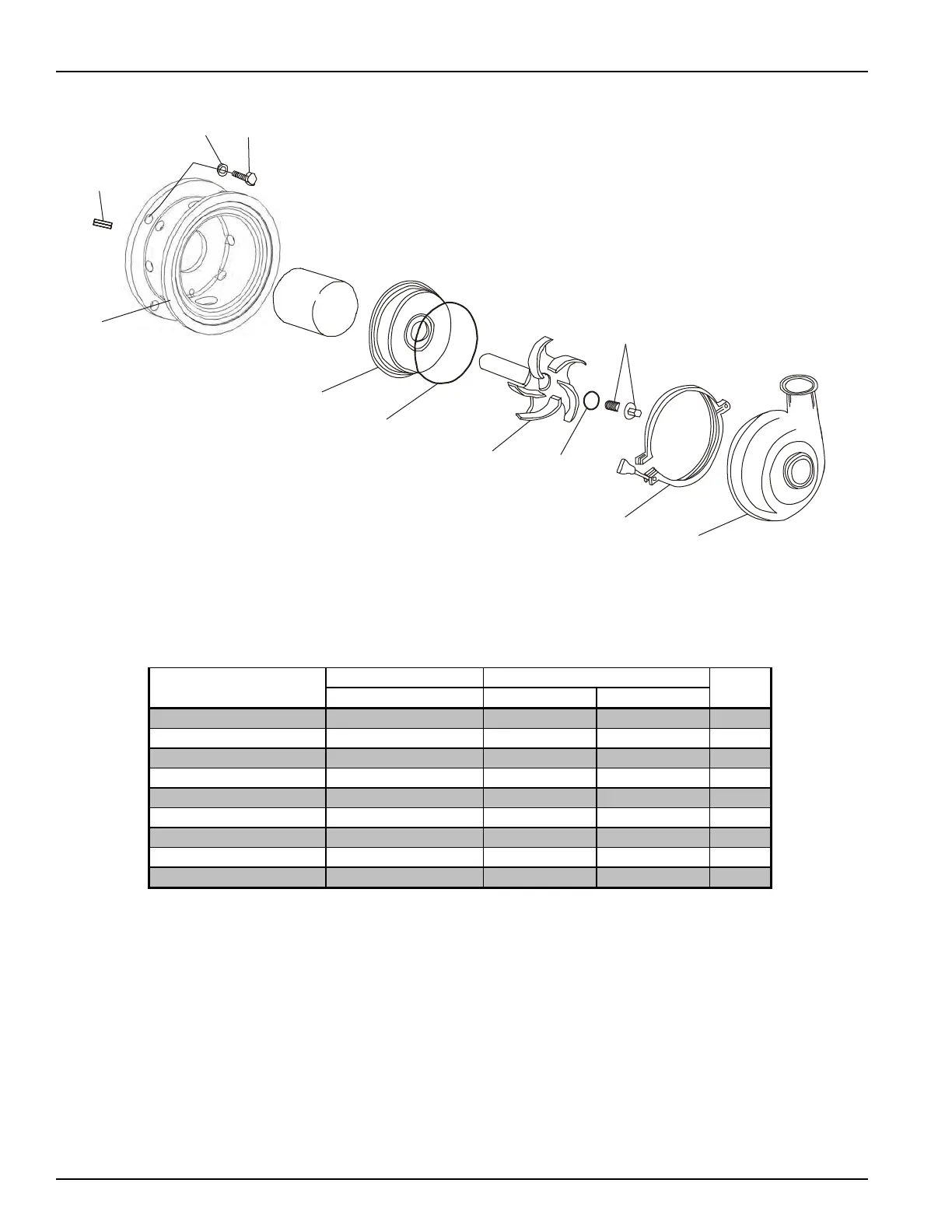

2085LV - 2085 Pump Parts
CT100-113a
Seals
12
8
7
5
10
9
2
4
11
1
3
2085LV - 2085 Casing Parts
3 x 2-1/2 4 x 2-1/2
S-Line CENTPT00462 CENTPT00477
Bevel Seat CENTPT00615 CENTPT00616
I-Line; Female CENTPT00618 CENTPT00619
I-Line; Male CENTPT00621 CENTPT00622
Q-Line CENTPT00624 CENTPT00625
Weld CENTPT00627 CENTPT00628
NPT; Male CENTPT00630 CENTPT00631 1
NPT; Female CENTPT00633 CENTPT00634 1
150 LB. Flange CENTPT00636 CENTPT00637 1
PL5030-CH8
NOTES:
1. These casings
do not
meet the requirements of 3A Sanitary Standards.
FITTING TYPE
2085LV SANITARY
2 X 1-1/2
CENTPT00620
NOTES
CENTPT00613
CENTPT00614
CENTPT00617
2085 SANITARY
CENTPT00623
CENTPT00635
CENTPT00626
CENTPT00629
CENTPT00632
