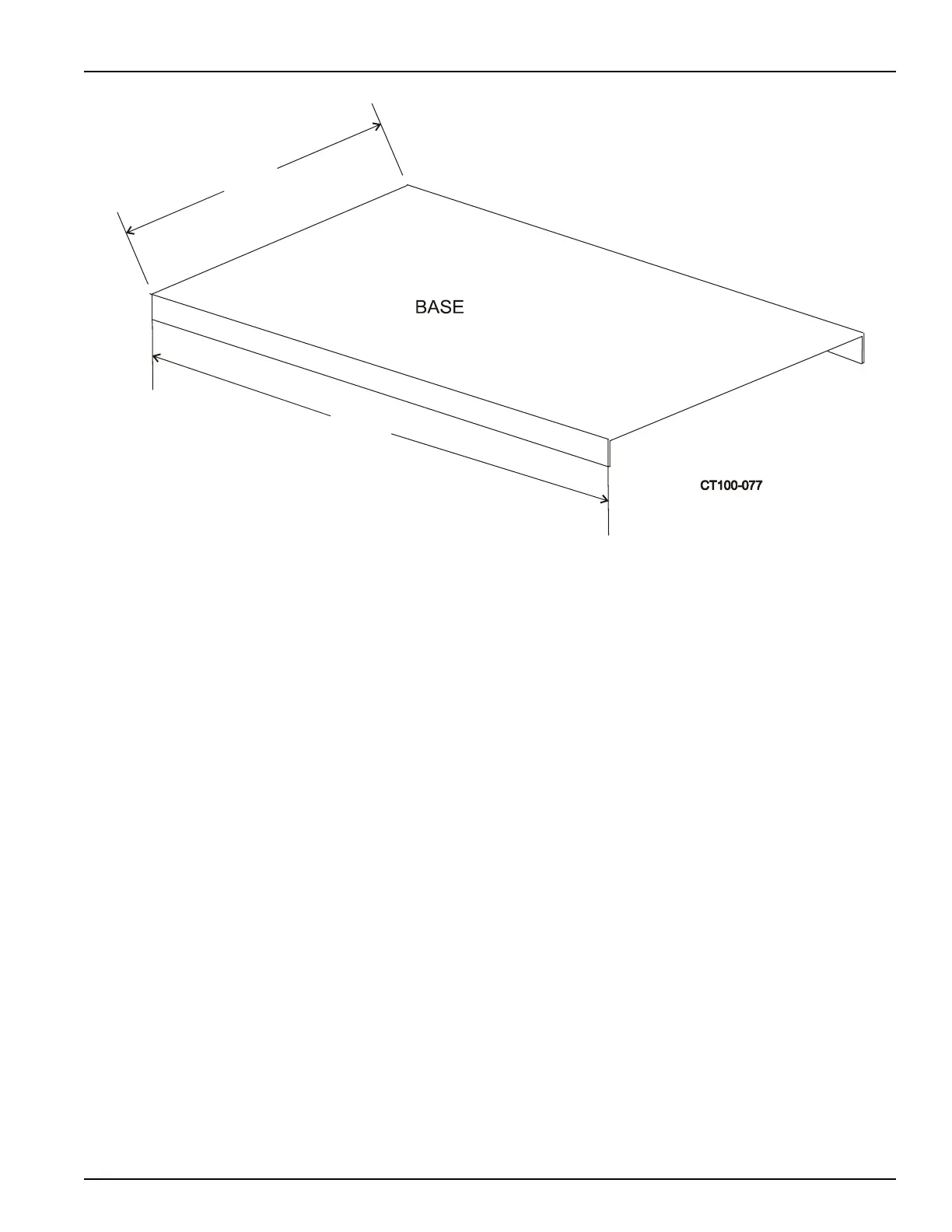

Figure 7 - Bas
e Plate Dimensions for Modu
lar Base-Mounted Centrifug
al Pumps
Width
Length
Waukesha Cherry-Burrell
Introduction
10/2010
95-03009
Page 21
Base plates (optional) are provided in three
widths
and five
lengths
(depending on motor
frame and pump model).
Widths Available:
10 inches
15 inches
18 inches
Lengths Availabl
e:
20 inches (Style A Only)
24 inches
32 inches
38 inches
50 inches
20
22
Table of Contents
Default Chapter
3
Table of Contents
3
Warranty
5
Shipping Damage or Loss
5
Warranty Claim
5
Safety
6
Care of Stainless Steel
7
Stainless Steel Corrosion
7
Elastomer Seal Replacement Following Passivation
7
Introduction
8
Manual Content
8
Receiving Your Pump
8
Receiving and Inspection
8
Pump Characteristics
9
200 Series Base Mount Description
9
Base Mount Components
9
Motor Adapter
9
Stand
10
Base (Optional)
10
Performance Characteristics
13
Authorization
13
Standard Construction
13
Construction Options
13
Operating Parameters
14
Capacities
15
Dimensions
16
Centrifugal 200 Series Pump and Pedestal Weights
22
Installation
24
Pump Location
24
Pump Leveling
24
Supply and Discharge Piping/Valves
24
Installations that May Cause Operation Problems
26
Electrical Connections
26
Flush Seal Option
27
Type 4 Seal (Double Mechanical with Flush)
27
Before First Startup
28
Clean Pump and Piping
28
Cleaning Safety Procedures
28
Manual Cleaning
28
Cleaning-In-Place (CIP)
28
Preliminary Test Run
29
Check for Possible Motor Overload Conditions
29
Operation
30
Starting the Pump
30
Priming the Pump/Stopping the Pump
30
Priming the Pump with the Feed Source above Pump Level
30
Priming the Pump with the Feed Source below Pump Level
31
Stopping the Pump
31
Maintenance
32
Scheduled Maintenance
32
Routine Maintenance
32
Disassembly of Pump with a Type 1 Seal
32
Removal of the Water Cascade
32
Inspect Parts
34
Assembly of Pump with a Type 1 Seal
34
Backplate Assembly
34
Backplate/Impeller Assembly
35
Type 4 Double Seal
37
Disassembly of Type 4 Seal
37
Removal of the Water Cascade
38
Assembly of Type 4 Seal
39
Disassembly of Modular Base-Mounted Pumps
41
Disassembling the Outer Seal Assemblies
42
Assembling the Outer Seal Assemblies
42
Pre-Assembled (Cartridge) Seals
43
Disassembly of Pre-Assembled (Cartridge) Seals
43
Assembly of a Pump with Pre-Assembled (Cartridge) Seals
44
Pedestal Base-Mounted Pump Housing Lubrication
46
Pump Alignment
46
Checking Angular Alignment
46
Checking Parallel Alignment
46
Servicing the Electric Motor
47
General Service Information
47
Motor Lubrication Instructions
47
Standard Seal Dimensions
48
Cartridge Seal Dimensions
49
Parts Lists
50
Type 1 Seal Kits
50
Type 4 Seal Kits
51
Type 1 Seal Components and Common Parts
52
Type 4 Seal Components and Common Parts
54
2045 Pump Parts
56
2065LV - 2065 - 2065HV Pump Parts
58
2075 Pump Parts
60
2085LV - 2085 Pump Parts
62
2105 Pump Parts
64
Style "C" Small Bore Pedestal Mount Parts
66
Style "C" Large Bore Pedestal Mount Parts
68
Motor Mounts
70
Motor Shaft Shims
70
Troubleshooting
71
