UM2435 Rev 2 29/48
UM2435 Hardware layout and configuration
47
In this configuration JP1[3-4] must be connected as shown in Figure 19.

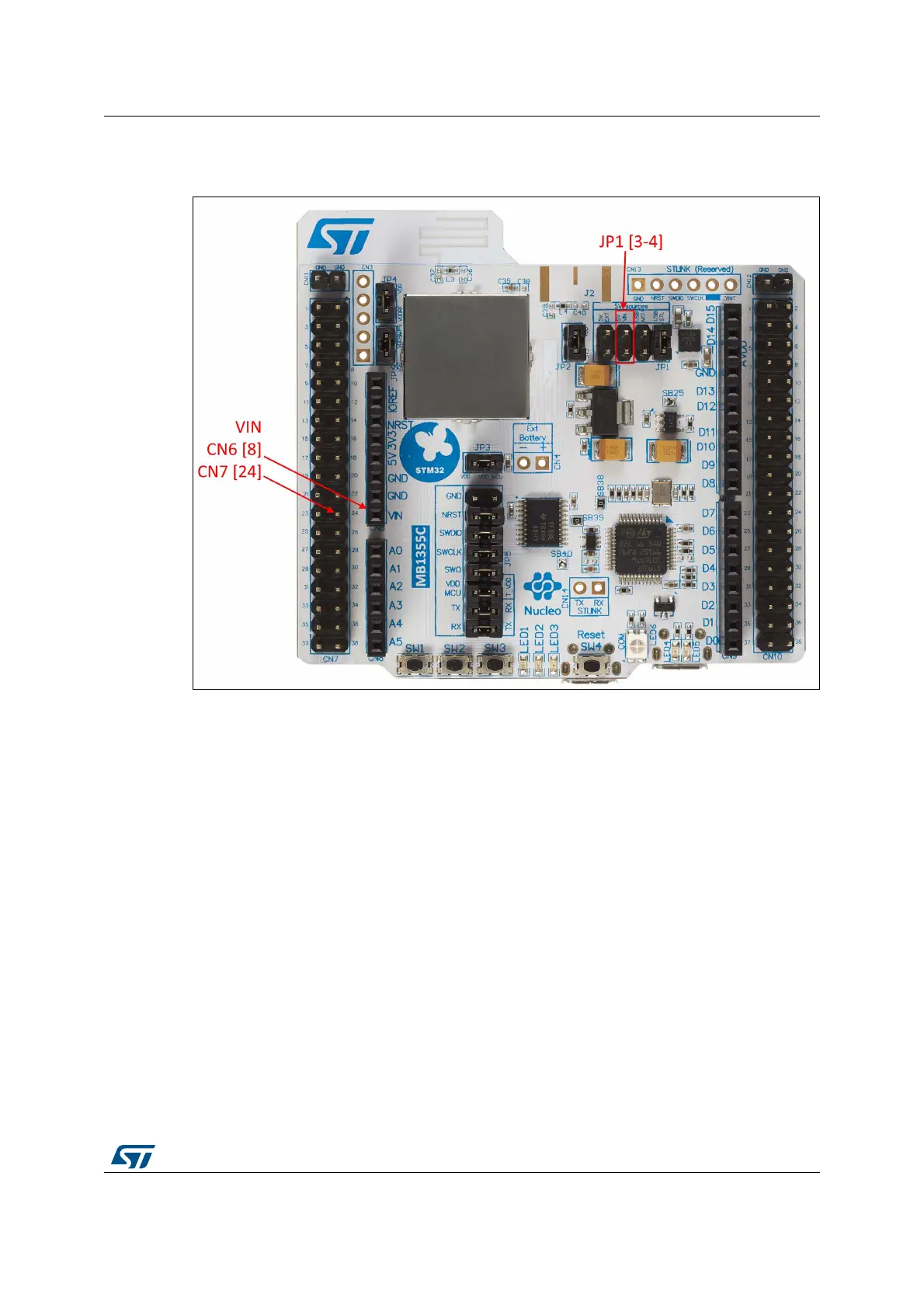

Figure 19. JP1[3-4]: 5V_VIN power source
• The board can be also supplied by the USB User (5V_USB_MCU)
• No debug is possible on this USB port
