UM2435 Rev 2 41/48
UM2435 Connectors
47
8.4 Extension connectors CN1 and CN2 on USB dongle
The related pinout and the MCU assignment for the extension connectors are detailed in
Figure 25.

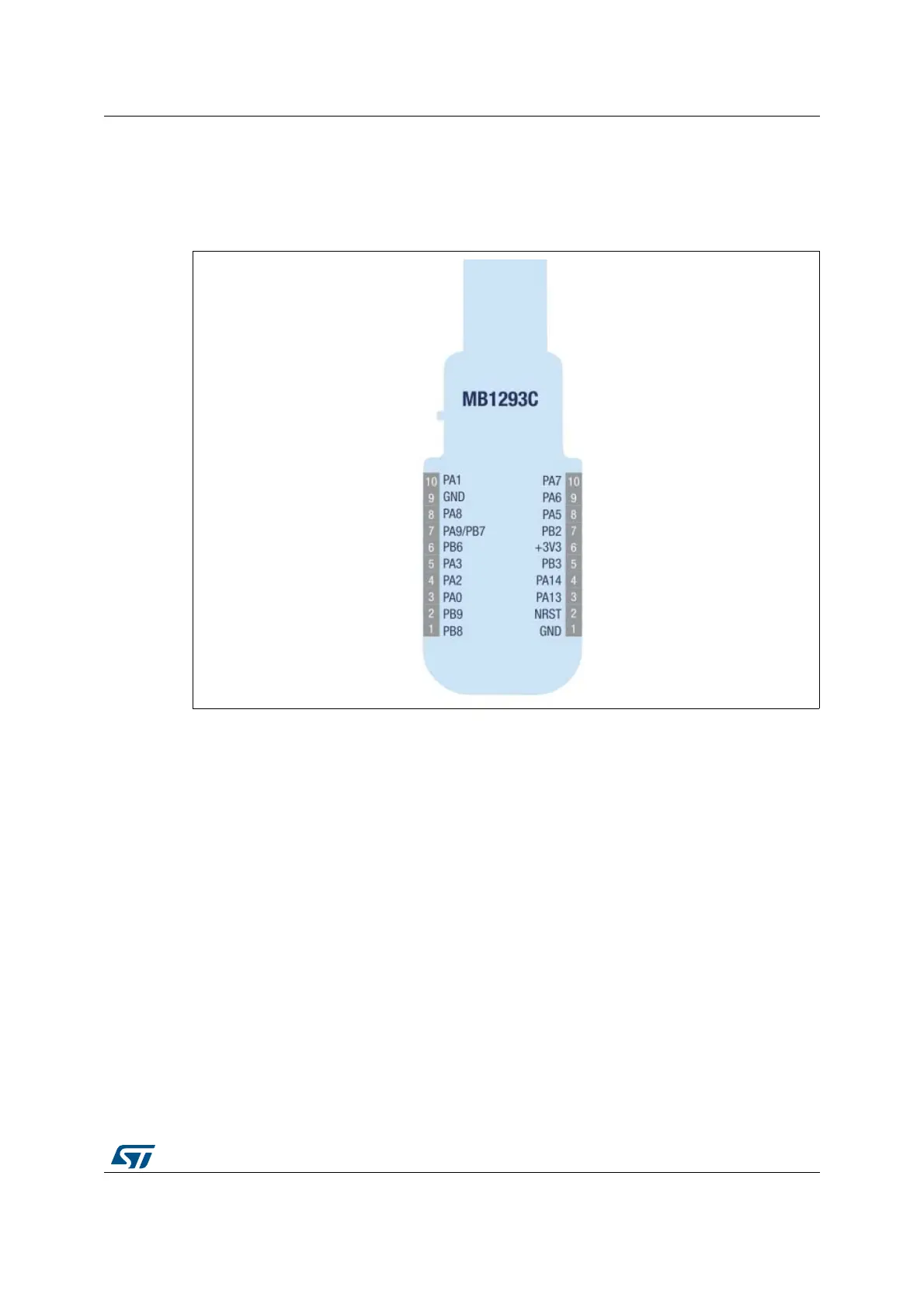

Figure 25. Extension connectors pinout
CN2 CN1
