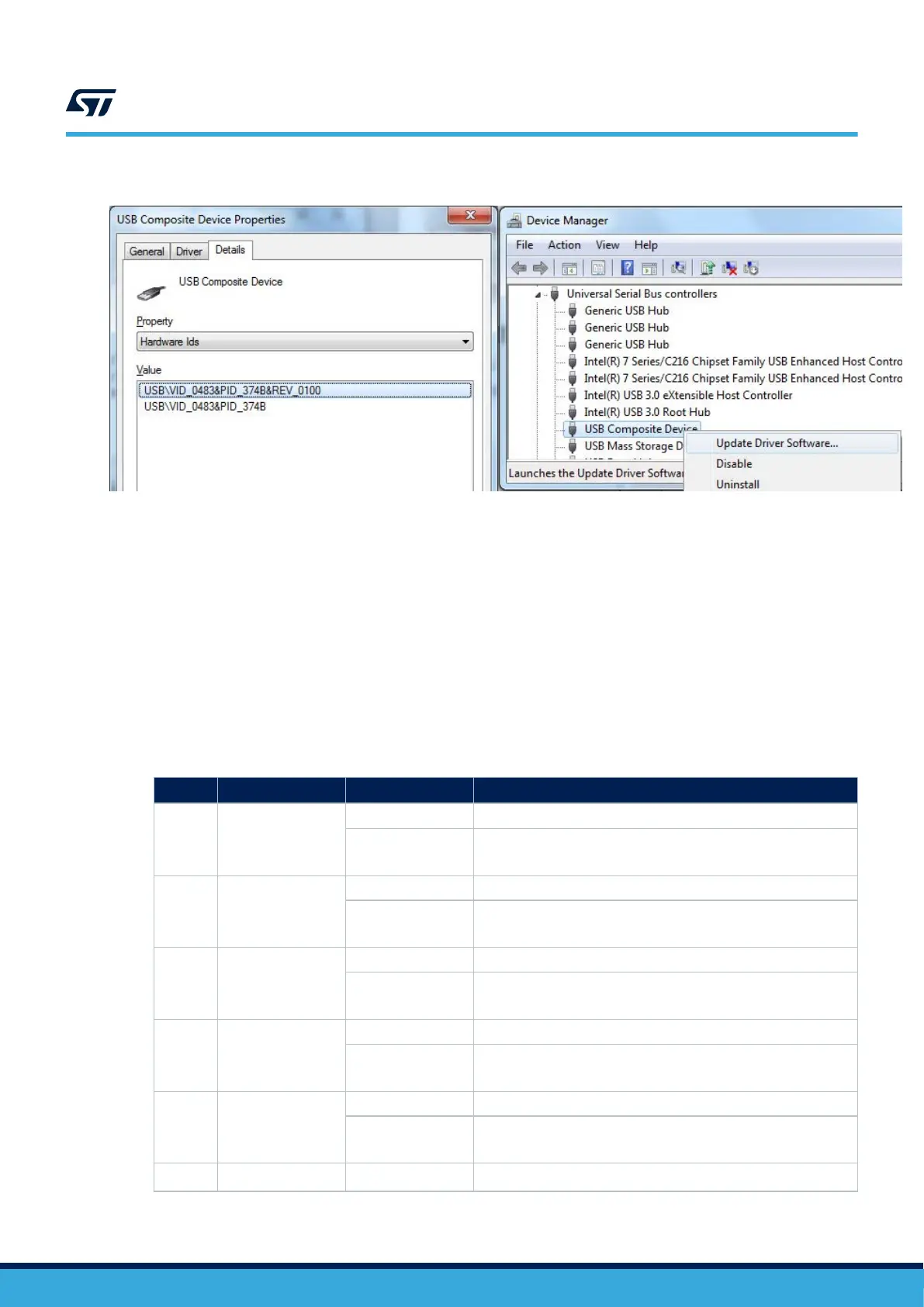

Figure 9. USB composite device
6.7.2 ST-LINK/V2-1 firmware upgrade
For its own operation, ST-LINK/V2-1 embeds a dedicated microcontroller with Flash memory. Its firmware
determines
ST-LINK/V2-1 functionality and performance.
The ST-LINK/V2-1 embeds a firmware mechanism for the in-situ upgrade through the USB port. As the firmware
may evolve during the lifespan of the ST-LINK/V2-1 product (for example new functionalities, bug fixes, support
for new microcontroller families), it is recommended to visit the www.st.com website before starting to use the
STM32MP157F-EV1 Evaluation board and periodically, to stay up-to-date with the latest firmware version.
6.8 ETM TRACE Mictor-38 connector
The Mictor-38 connector MB1262/U10 may output trace signals used for debug, as well as JTAG signals.
T
able 12 describes the HW configuration for the TRACE function.
Table 12. HW configuration for the TRACE connector MB1262/U10
I/O Bridge
Setting
(1)
Comment
PI14 SB38
ON PI14 may be used for the trace function TRACE CLK
OFF
PI14 is not connected to Trace
PI14 may be used for L
TDC CLK
PI12 SB43
ON PI12 may be used for the trace function TRACE_D0
OFF
PI12 is not connected to Trace
PI12 may be used for L
TDC HSYNC
PI13 SB42
ON PI13 may be used for the trace function TRACE_D1
OFF
PI13 is not connected to Trace
PI13 may be used for L
TDC VSYNC
PJ5
SB36
ON PJ5 may be used for the trace function TRACE_D2
OFF
PJ5 is not connected to Trace
PJ5 may be used forL
TDC_R6
PJ6
SB41
ON PJ6 be used for the trace function TRACE_D3
OFF
PJ6 is not connected to Trace
PJ6 may be used for L
TDC_R7
PK1
SB40
ON PK1 may be used for the trace function TRACE_D4
