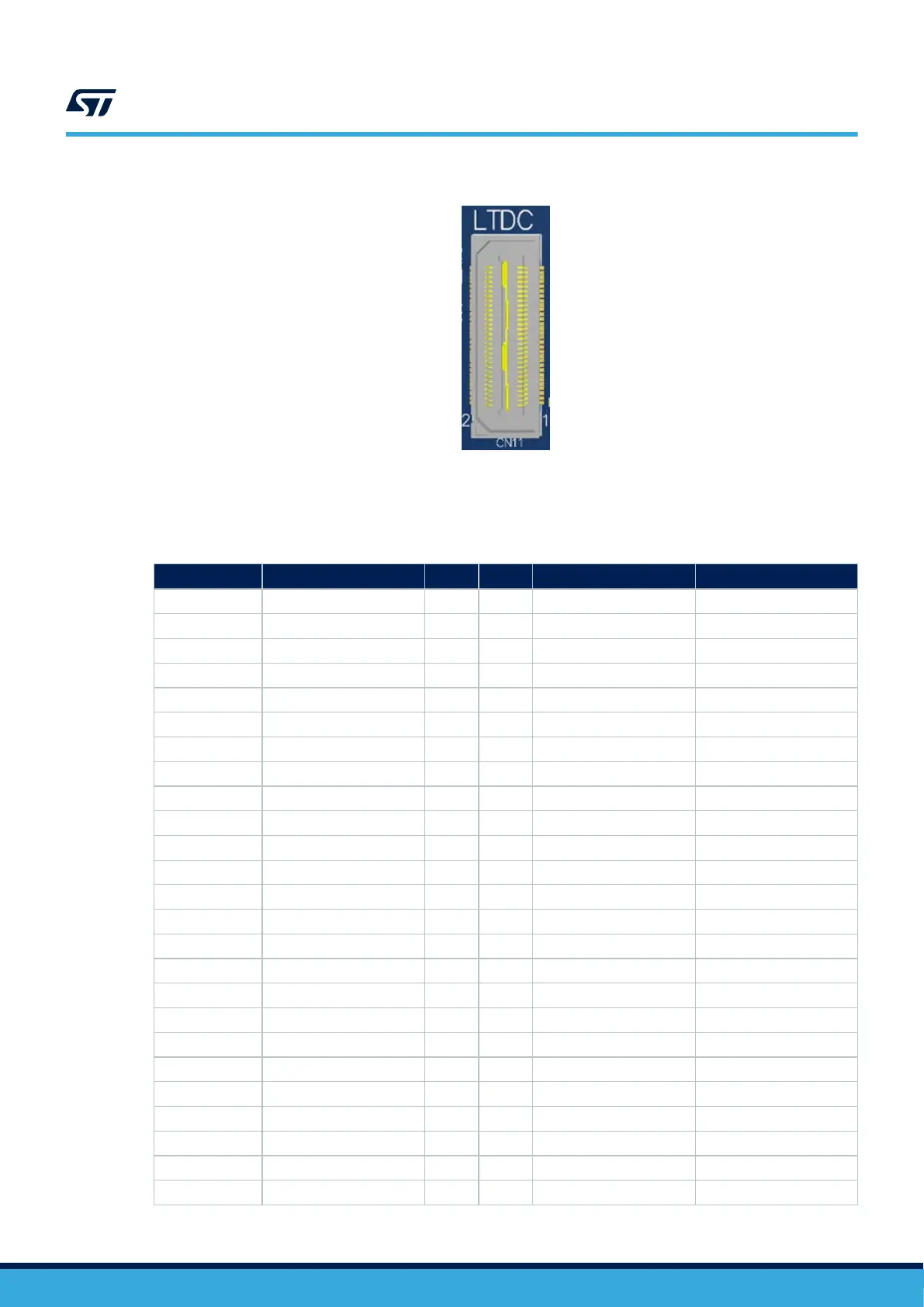

Figure 26. MB1262
/CN11 connector
A 24-bit RGB interface, LCD control signals (INT, Backlight BL_CTRL, LCD_RESET, I2C), HDMI_CEC and
SPDIF_TX are available as described in the connector pinout Section 6.29 .
T
able 47. MB1262/CN21 connector pinout
I/O Board function Pin Pin Board function I/O
PK7 LTDC_DE 1 2 LTDC_R7 PJ6
- - 3 4 LCD_INT MFX_IO14
- - 5 6 LTDC_B7 PK6
PJ4 LTDC_R5 7 8 - -
PI12 LTDC_HSYNC 9 10 LTDC_VSYNC PI13
- - 11 12 - -
MFX_O1 HDMI_PD 13 14 LTDC_R0 PI15
- - 15 16 - -
PJ0 LTDC_R1 17 18 LTDC_R2 PJ1
- - 19 20 - -
PJ2 LTDC_R3 21 22 LTDC_R4 PJ3
PK0 LTDC_G5 23 24 LTDC_G6 PK1
PJ4 LTDC_R5 25 26 LTDC_R6 PJ5
PK3 LTDC_B4 27 28 LTDC_B5 PK4
PJ6 LTDC_R7 29 30 LTDC_G0 PJ7
PK5 LTDC_B6 31 32 - -
PJ8 LTDC_G1 33 34 LTDC_G2 PJ9
- - 35 36 - -
PJ10 LTDC_G3 37 38 LTDC_G4 PJ11
PJ12 LTDC_B0 39 40 LTDC_B1 PJ13
PJ14 LTDC_B2 41 42 LTDC_B3 PJ15
- - 43 44 - -
- - 45 46 LCD_RESET (SUB_NRST) PD10
- 3V3 47 48 5V -
PK2 LTDC_G7 49 50 GND -
UM2648
RGB LTDC connector
UM2648 - Rev 1
page 41/61
