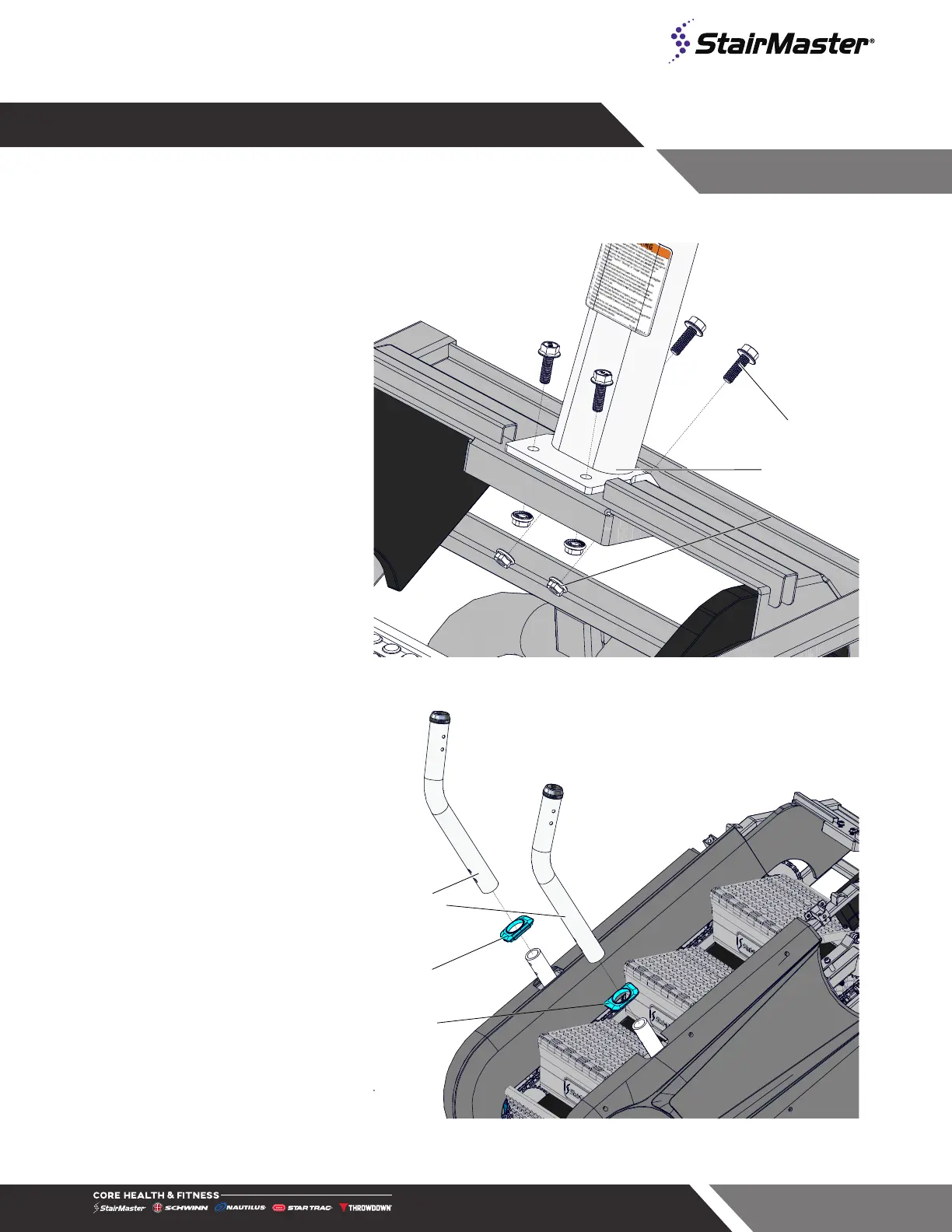

Page 13
7. Use a ratchet wrench with a 13mm
socket and a 13mm open-ended
wrench to secure - DO NOT
FULLY TIGHTEN - the mast 711-
4135-XX to the frame using four
(4) pieces each of the M8 x 25mm
flange bolt 110-4197 and M8
flange nut 110-4364.
Note: When directed to tighten
the hardware in Fig. 9 torque to:
35-40 NM (25-30 FT-LB)
110-4197
110-4364
711-4135-XX
Fig. 9
8. Install the right side upright
handrail grommet 020-8120
onto one (1) piece of the upright
handrail 711-4046-XX, then slide
the handrail onto the right side
frame post.
9. Repeat Step 2 for the left side
grommet 020-8121 and upright.
020-8121
020-8120
711-4046-XX
Fig. 10
To Next Page
