Page 14

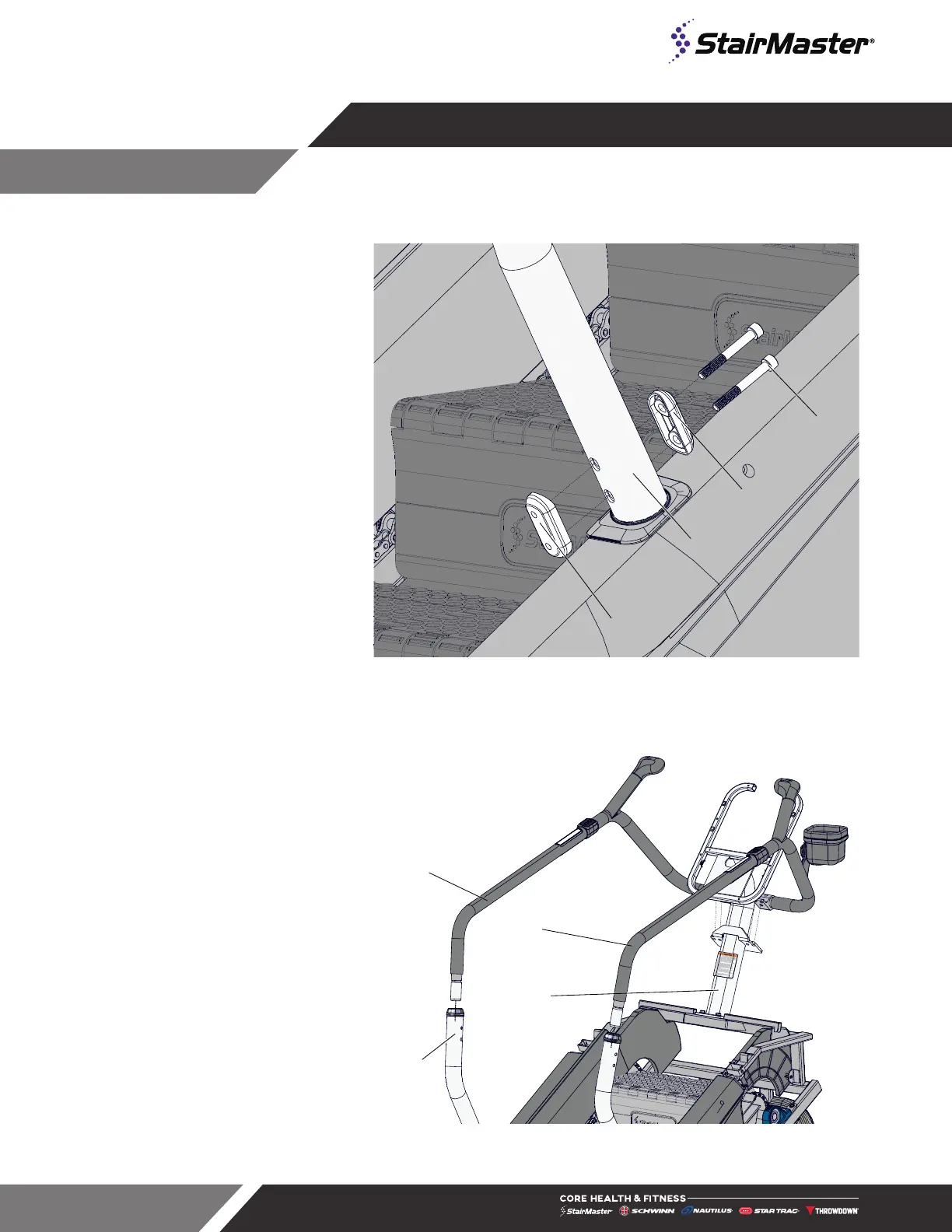

11. Use a 6mm allen key to secure -
DO NOT FULLY TIGHTEN - the
right side upright handrail 711-
4046-XX to the frame using two
(2) of the M8x65mm socket head
cap screws 110-4180 and one (1)
piece each of the large handrail
clamp 020-8146-XX and large
threaded handrail clamp 020-
8147-XX.
12. Repeat Step 11 for the left side
upright handrail.
Note: When directed to tighten
the hardware in Fig. 11 torque to:
42-46 NM (31-34 FT-LB)
110-4180
020-8146-XX
020-8147-XX
711-4046-XX
Fig. 11
13. Install the left handrail assembly
711-4138 and right handrail
assembly 711-4137 into the
upright handrails and mast.
711-4135-XX
711-4138
711-4137
711-4046-XX
Fig. 12
