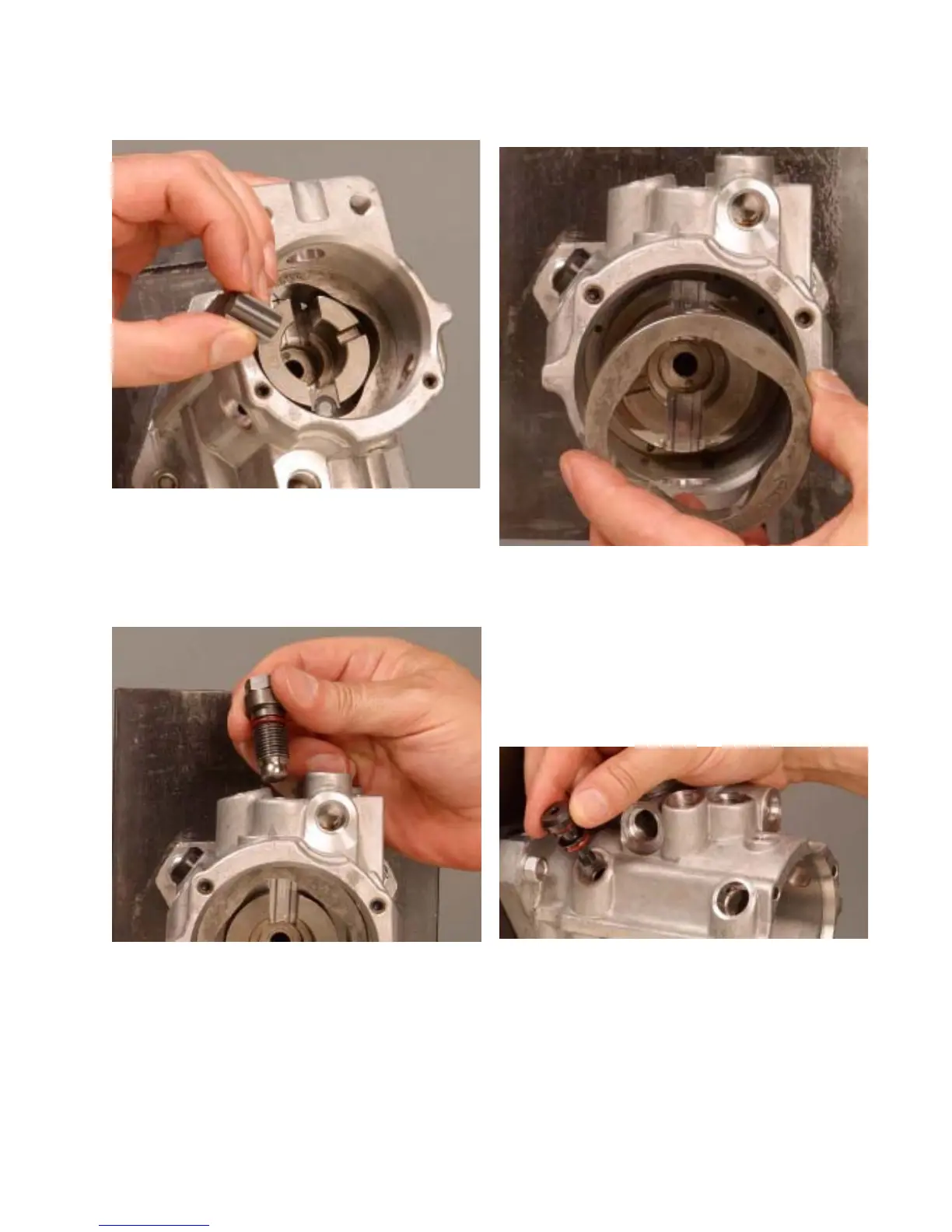

Step 19. Remove 2 sets of shoes and cam
rollers from the housing.
Step 20. Using a 5/8” socket, loose and re-
move the cam pin screw. Remove and discard
the o-ring seal.
Step 21. Remove the cam ring from the hous-
ing.
Step 22. Loosen and remove the transfer
pump porting screw using a 3/16 hex bit. Re-
move and discard the o-ring seal.
Fig. 2.19
Fig. 2.20
Fig. 2.21
Fig. 2.22
17
